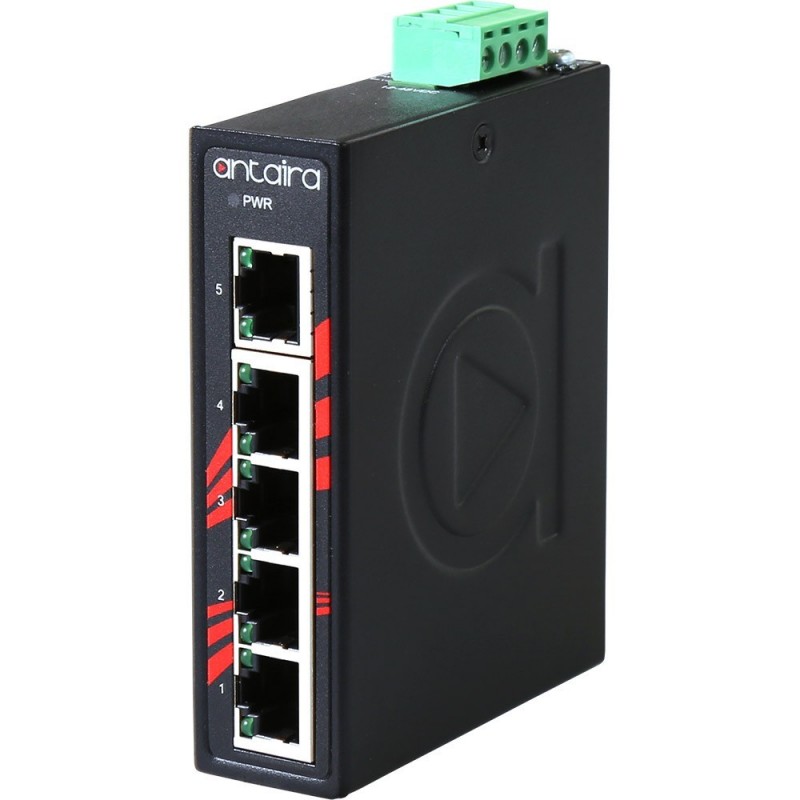

5 ports Industrial 10/100 / 1000Mbit switch, DIN rail, -40 - + 75 ° C, 12 - 48VDC

5 x 10/100 / 1000Mbps Ethernet Ports
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature range: -40 ° to & nbsp; 75 ° C

ANR-LNX-C500G-T
1,774.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Antaira’s new Compact design LNX-C500G-T industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 5 gigabit Ethernet ports connections, making it ideal for applications that demand high bandwidth and flexible installation for enclosure room saving.

This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports extended operating temperature from -40 to 75°C.

The LNX-C500G-T is a perfect industrial networking product to support any application such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

Dimensioner
26 x 95 x 75mm
Forsyning
12 - 48VDC, redundant
Kabinet
Metal, IP30, DIN-beslag,
Maks. effekt
6,6 Watt
Netværk
5 x RJ45, 10/100/1000Mbps
