5 ports Industrial 10/100 / 1000Mbit switch + 2 x Gbit SFP slot, PoE + (30W), DIN rail, -10 - + 70 ° C, 12 - 36VDC

4 x 10/100 / 1000Mbit, PoE + (30W) IEEE 802.3at
1 x 10/100 / 1000Mbit
2 x 100 / 1000Mbit SFP slot
14Gbps Back Plane
8K MAC Address Table
10.0 Kbytes Jumbo Frame
Overvoltage 2kV DC
ESD Protection 6kV DC
Redundant Power Input Design: 12 - 36VDC
1 Relay Output for Power Error Alarm
IP30 Rugged Metal Cabinet
DIN-Rail and Wall Mount including
Extended operating temperature: -10 - + 70 ° C

ANR-LNP-0702G-SFP-24
5,290.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

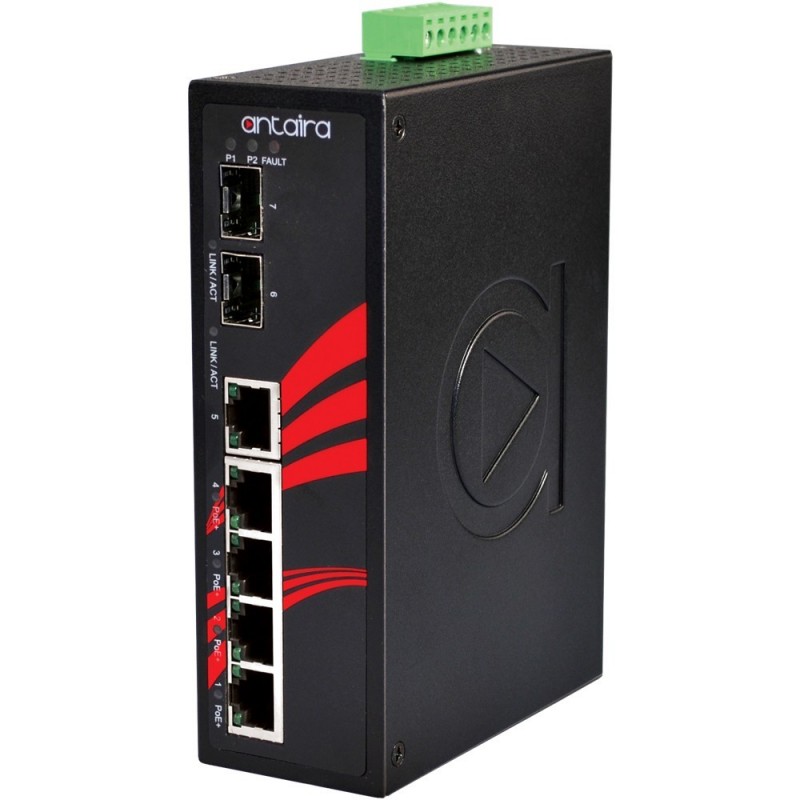

Antaira’s LNP-0702G-SFP-24 industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with 5 gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) on ports 1-4 (30W/Port) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.

This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.

The LNP-0702G-SFP-24 series meets IEEE 802.3at (30 Watts per port @ 53VDC), supports 12V ~ 36VDC power inputs and has an operating temperature range of -10 to 70° perfectly designed to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.

Dimensioner
46 x 142 x 99mm
Driftstemperatur
-10 - +70°C
Fiber
2 x 1Gbps SFP slot
Forsyning
12 - 36VDC, redundant
Kabinet
Metal, IP30, DIN-beslag,
Maks. effekt
145 Watt, maks. PoE
Netværk
4 x RJ45 10/100/1000Mbps PoE+, 1 RJ45 x 10/100/1000Mbps
PoE
30 Watt
