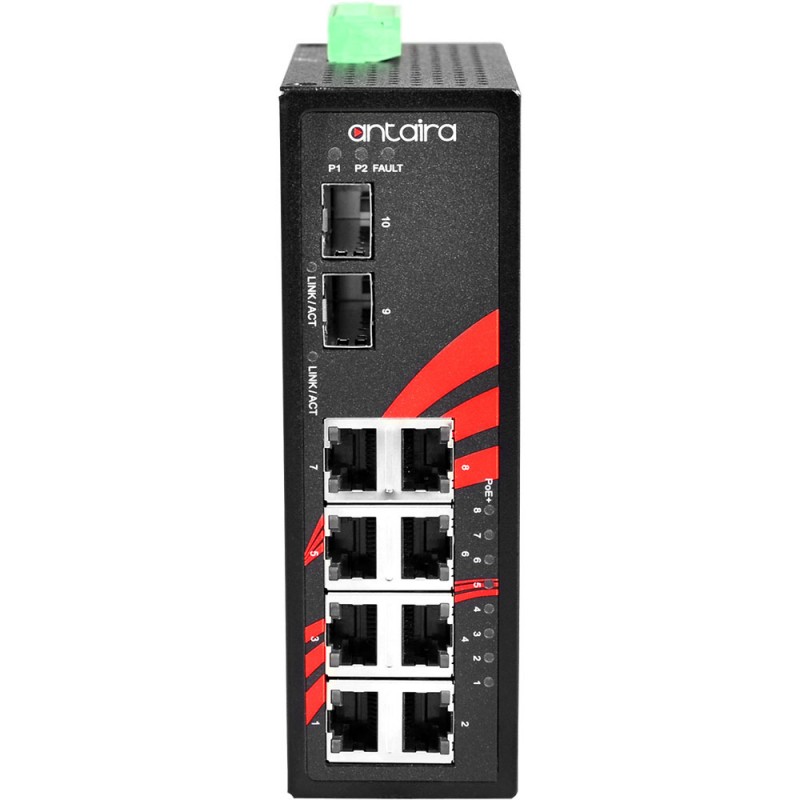

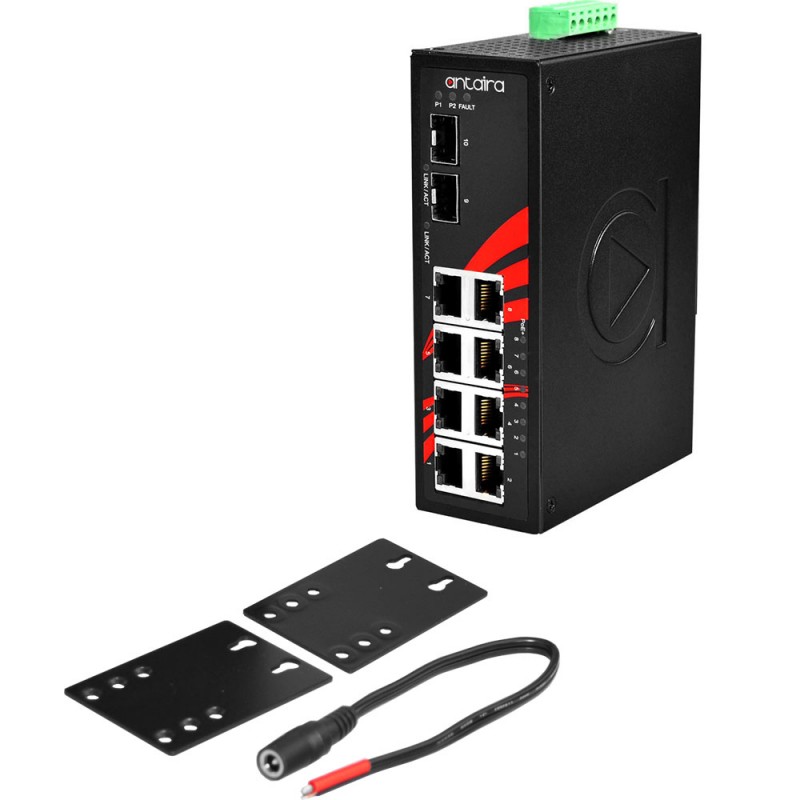

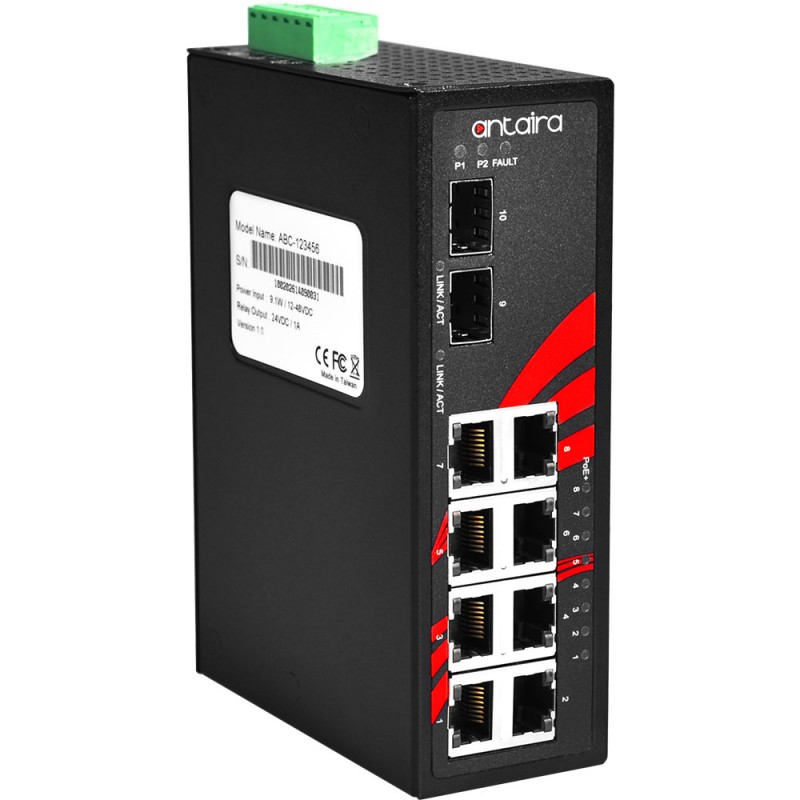

10-port industrial unmanaged switch with 2 SFP ports and 8 RJ45 ports and extended temperature -40 ° to 75 ° C

8 x 10/100 / 1000Tx RJ45 for PoE + (30W / port) IEEE 802.3at for 2 x 100/1000 SFP ports for Auto MDI / MDI-X Function for Store-and- Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC for UL Class I , Division 2 Certified
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output for Power Failure for IP30 Rugged Metal Case Design for DIN Rail and Wall Mounting - Operating Temperature: -40 ° to 75 ° C

ANR-LNP-1002G-SFP-T
6,593.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Certifications
FCC, CE, UL 508, UL Class 1 Division 2, ISA 12.12.01
Dimensioner
46 x 99 x 142 mm
Driftstemperatur
EOT: -40° to 75°C
Ethernet
8 x RJ45 Ports w/10/100/1000Tx (PSE 30W/Port)
Fiber
2 x 100/1000 SFP Slot
Luftfugtighed
5% to 95%, (non-condensing)
Compositions
Metal IP30 protection

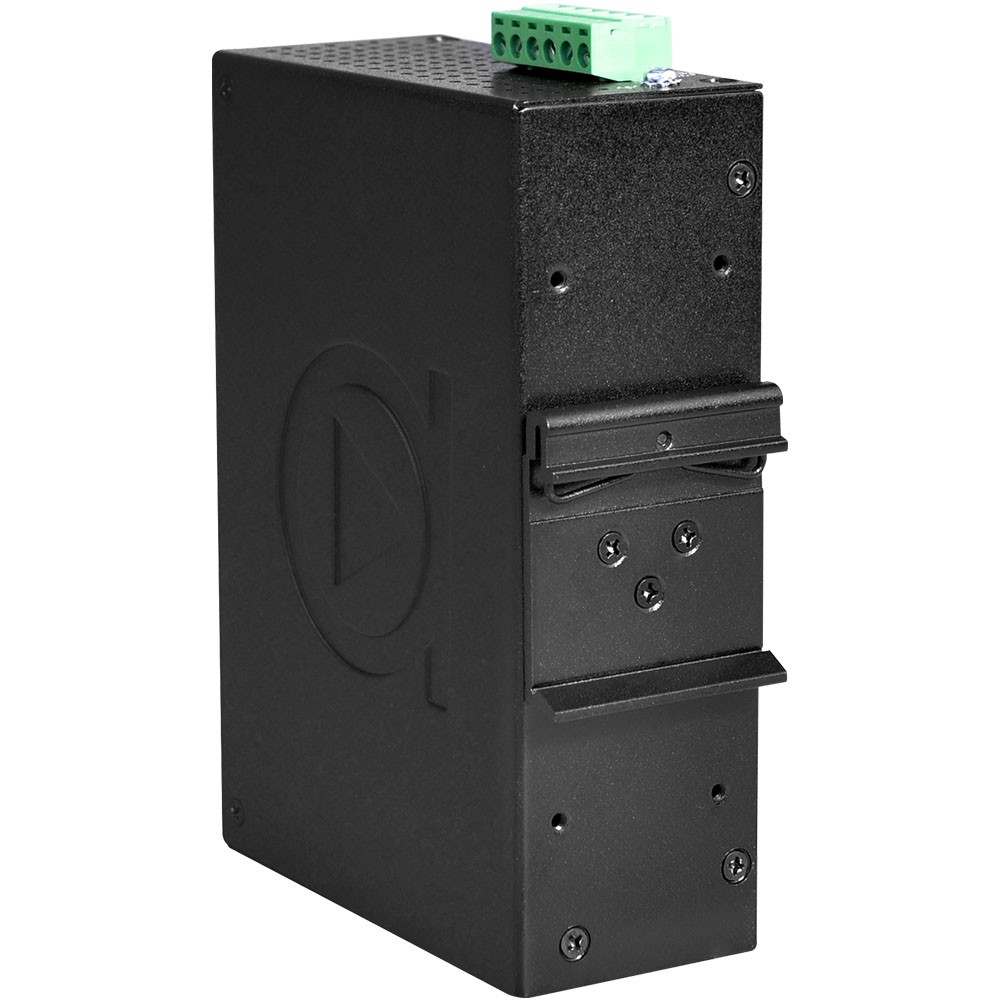

Montering
DIN-skinne og væg montering
Netværk
10Base Tx: UTP/STP Cat. 3,5 100Base Tx: UTP/STP Cat. 5 1000Base Tx: UTP/STP Cat.5/5e/6
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3at PoE+
Strømforbrug
210 Watts @ 48V 250 Watts @ 51-55V (Full Load w/ PoE)
Strømforsyning
48~55VDC, Redundant Input
