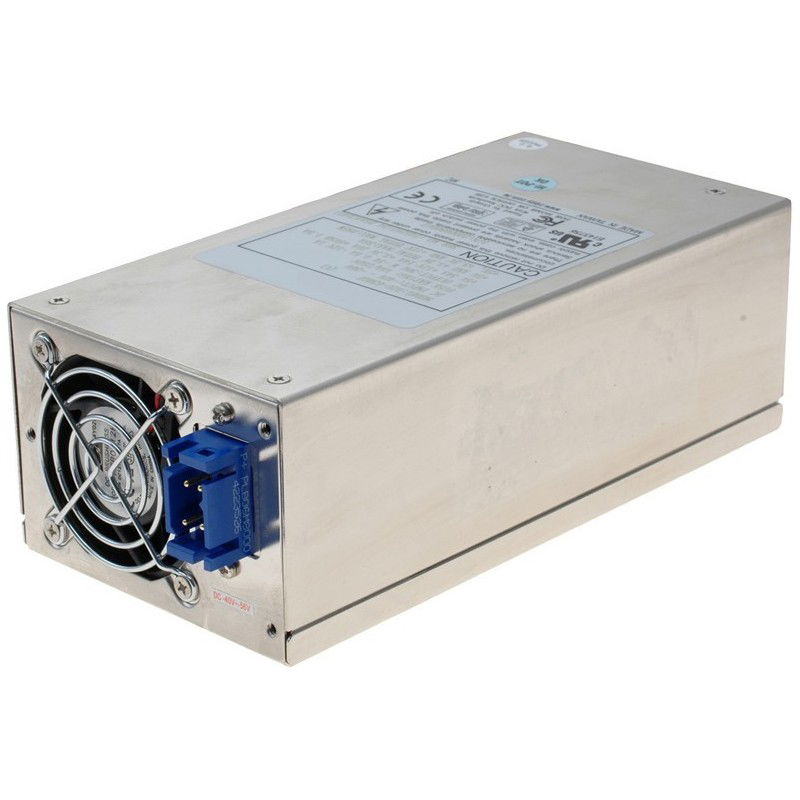

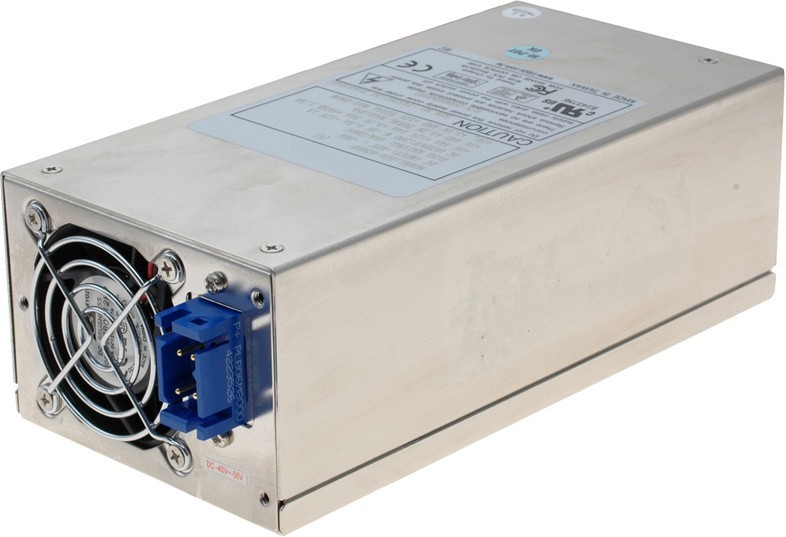

-48 VDC, 300 Watt ATX power supply, with 12V connector for P4, 2U, D2U-6300F

48V DC ATX with 12V connector for P4, 2U
These power supplies can be used where the ordinary mains voltage (230 VAC) is not available - eg. in cars or on ships.
There can be supplied three types with +12 V, +24 V or -48 VDC input.
is equipped with EMI filter.

PS48DC-P4-2U
1,461.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

These power supplies can be used where the ordinary mains voltage (230 VAC) is not available - eg. in cars or on ships. Three types can be supplied with +12 V, +24 V or -48 VDC input. Is provided with EMI filter.

Input
-48 V
Maks. effekt
250 W
Output
+5V max. 34A, +12V max. 14A
