Adlink DIN-68S-01. Terminal board with 68 screw terminals
Adlink DIN-68S-01
Terminal Boards
On-board Connector
68-pin SCSI-II female
103 x 85 x 46.2 mm (W x L x H)
Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB

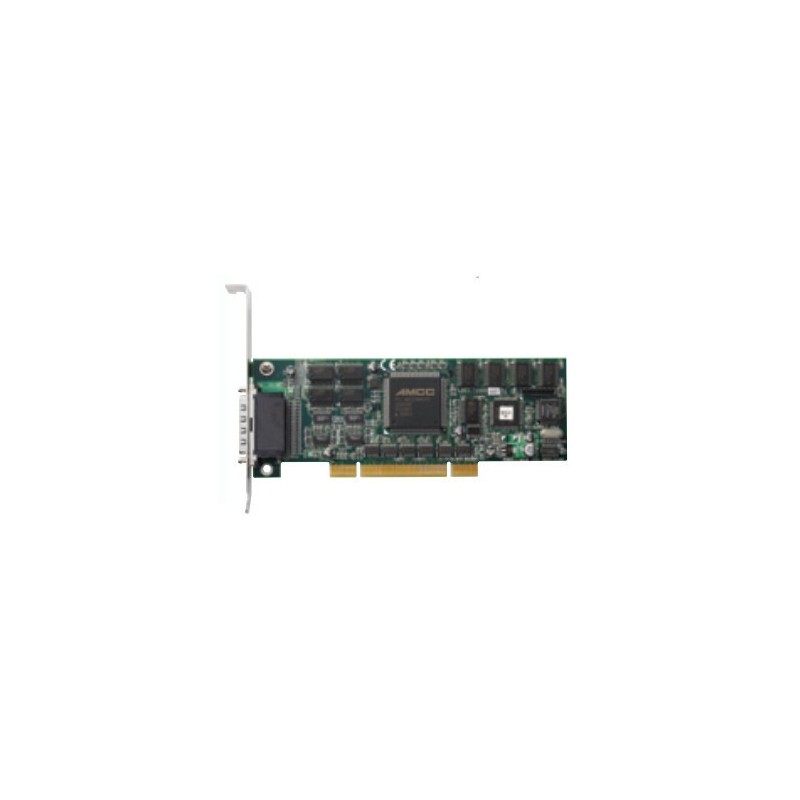

DI32O32PCI-L (ADLINK LPCI-7200S) is a high-speed digital I/O card. It consists of 32 digital input channels, and 32 digital output channels.
High performance designs and the state-of-the-art technology make this card suitable for high speed data transfer and pattern generation applications.
DI32O32PCI-L performs high-speed data transfers using bus-mastering DMA via 32-bit PCI bus architecture. The maximum data transfer rates can be up to 12 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and handshaking mode.
It is very suitable for interfacing high-speed peripherals with your computer system. DI32O32PCI-L supports 3.3 V and 5 V PCI bus with low-profile PCI size. It occupies less space and thus is ideal for book-size computers.
Adlink DIN-68S-01
Terminal Boards
On-board Connector
68-pin SCSI-II female
103 x 85 x 46.2 mm (W x L x H)
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCIe Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)

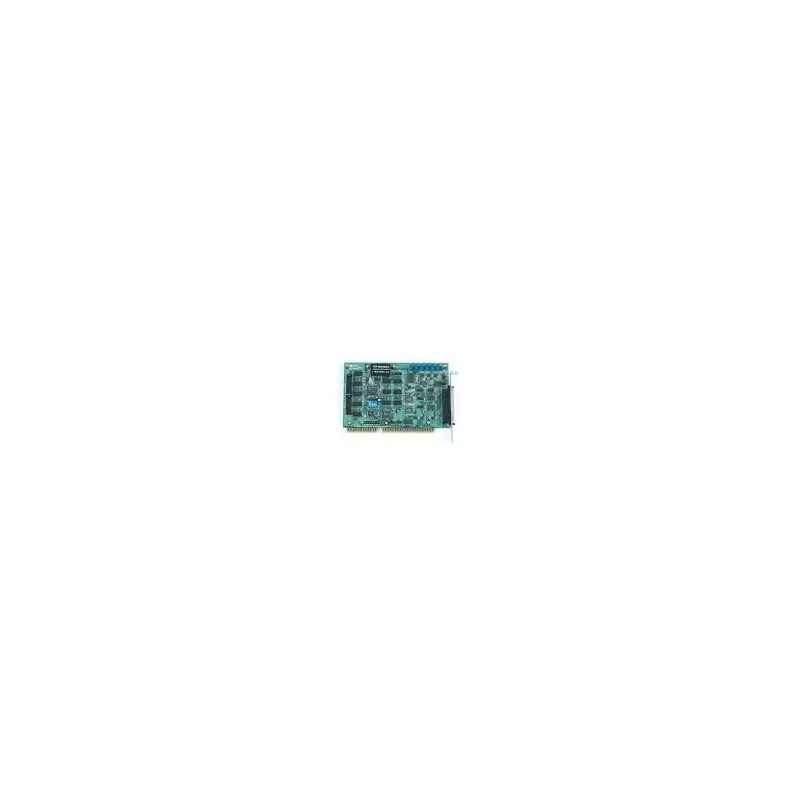

100KHz 16Ch Analog Input A/D Card - High Gain.
16 Single-Ended or 8 Differential Analog Input Channels
Bipolar or Unipolar Input Signals
Programmable High-Gain x0.5, x1, x5, x10, x50, x100, x500, x1000
12-Bit Successive Approximation A/D Converter (AD774 or equivalent)
On Chip Sample & Hold
Two 12-Bit Analog Output Channels
16 Digital Inputs and 16 Digital Outputs
Integral DC-to-DC Converter for Stable Input Operation
37-Pin D-Sub Connector
Compact Size - only half-size PCB

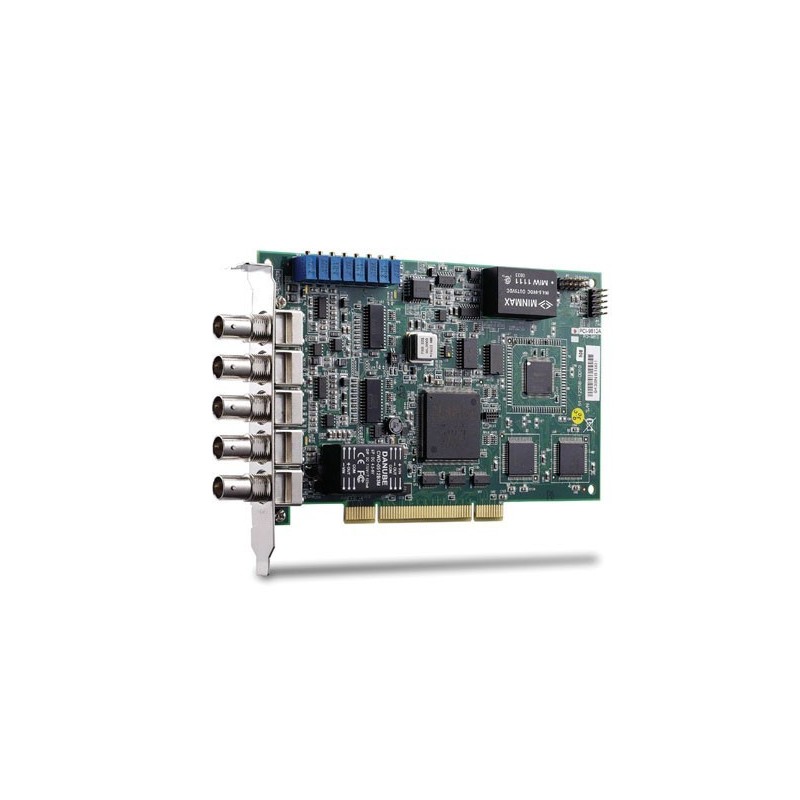

20MHz A/D på et PCI kort
Samtidig konvertering på 4 kanaler
