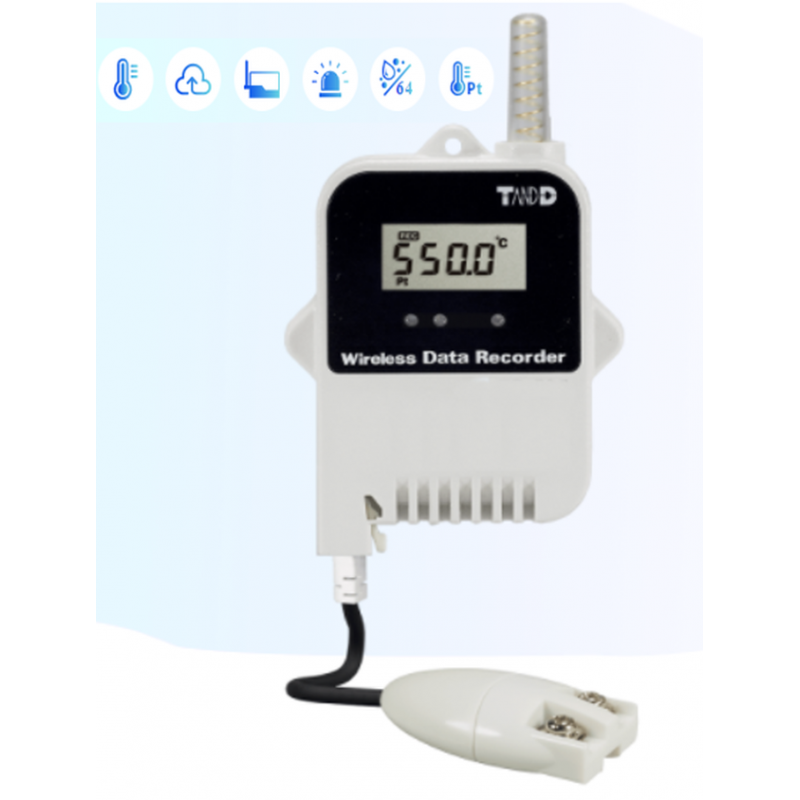

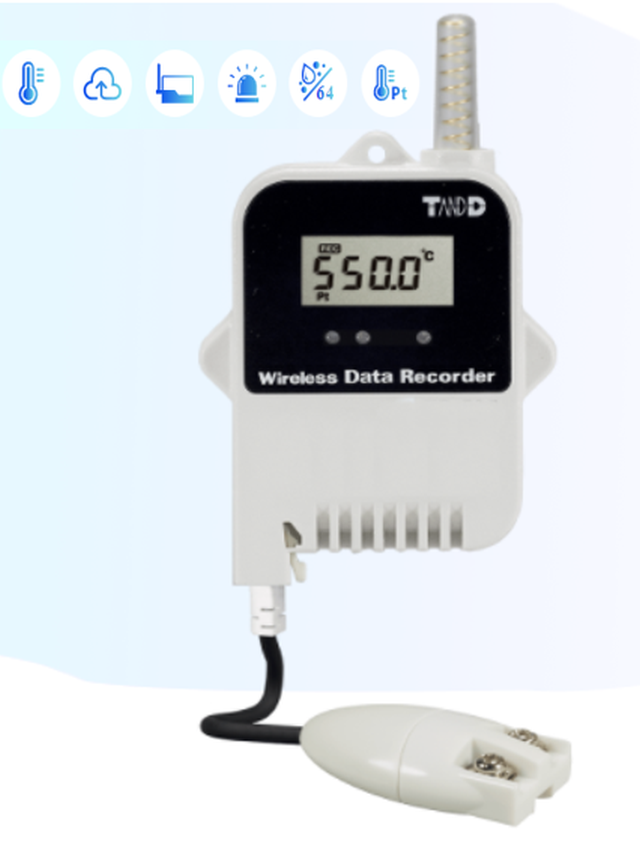

Wireless Temperature Logger with memory
Bluetooth T&D APP
For Pt100 and Pt1000 3-wire
Temperature: -199 - + 600°C, +/-0.3°C + 0.3%
Sends measurement data to Data Collector (Base Station) on 870MHz
Distance between Datalogger and Data Collector up to 150 meters
Battery operation up to 10 months with one upload per day
Data loggers are not on-line
16,000 measurements in memory with date and time stamp
Removable external terminal block. Close with O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1
The LOG-WL505PT series allows you to mix and match a variety of wireless radio communication loggers with different base units or data collectors to meet your needs. Logged data can be automatically sent via network or mobile communication to be stored in cloud storage or to a specific location. Designed for use with Pt sensors, the LOG-WL505PT measures in the wide temperature range from -199℃ to 600℃ with superior accuracy.
LOG-WL505PT loggers have a wireless radio communication range with compatible base units of up to 150m (492ft).

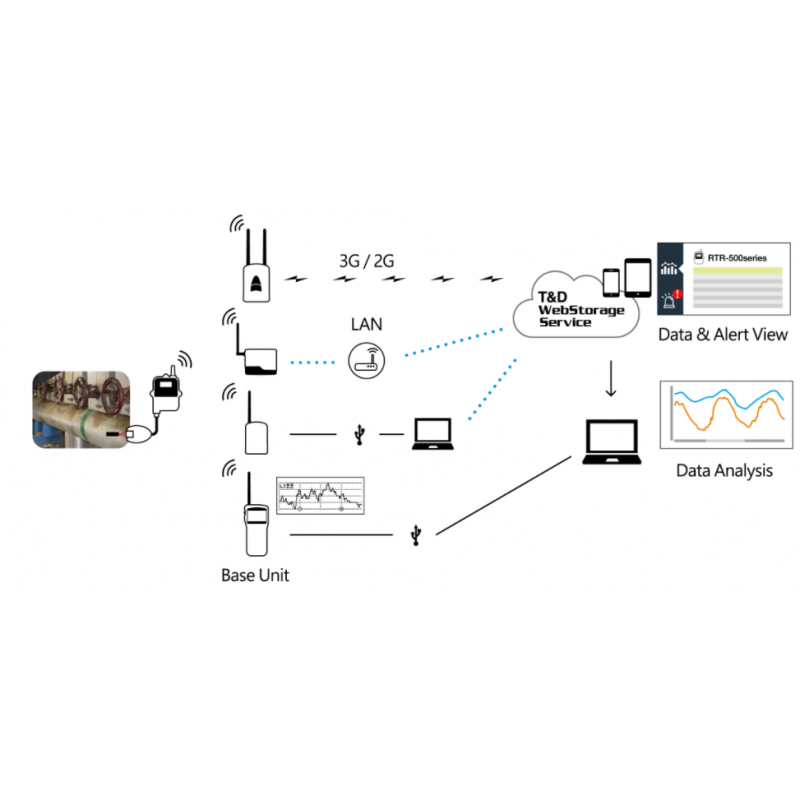

Data can be transferred from a logger to a base unit and then automatically uploaded to cloud storage or stored in a specific location. Data can also be checked on your PC screen or on site with one of our compatible data collectors.
As the LOG-WL505PT is able to measure a wide range of temperatures with high accuracy, it is perfect for situations where you want to control different measuring points at once, e.g. When recording temperature in research using deep freezers, high temperature tests, and low temperature tests.
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
Battery for log-wlxxx series
in normal battery change Log-data not
Wireless Temperature Logger with memory
Bluetooth APP: T&D Thermo
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
16,000 measurements in memory with the date and time stamp
Accuracy of measurement: max. + / - 0.5 ° C range depending
Removable external sensor. Close O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Battery type: LS14250 x 1
Radio base station retrieves Log data from loggers
base station is a link between loggers and PC
base station data from 100 wireless loggers
Frequency Band Base Station and Data Logger is 870MHz
Up to 150meter - depending on conditions
Greater distance with repeaters (radio-relay stations)
interface for presentation PC is Wifi
USB interface to PC for setup:
base station, connection dock for Data Like (Optical)
Protocol: SMTP (POP before SMTP-AUTH (login) FTP, SNTP, DHCP, DNS)
temperature: -10 - + 60 ° C
Dimensions: 102 x 83 x 28 mm
Power supply included
Only for T&D loggers
16-bit 4-20mA to-digital converter
Temperature Compensated AD converter to 4 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Input ranges (4-20mA version with 0-50mA)
Battery operation - 10 year battery
, if you acquire: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
measurement speed from 20 milliseconds ( 1 channel) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion
Battery for log-wlxxx series
in normal battery change Log-data not
