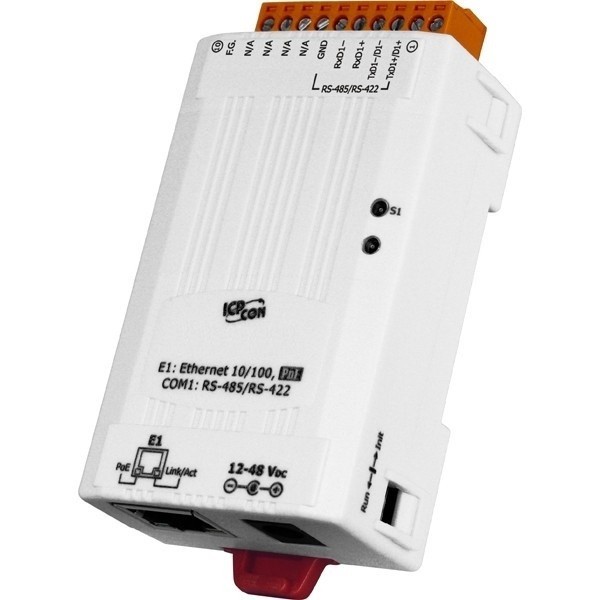

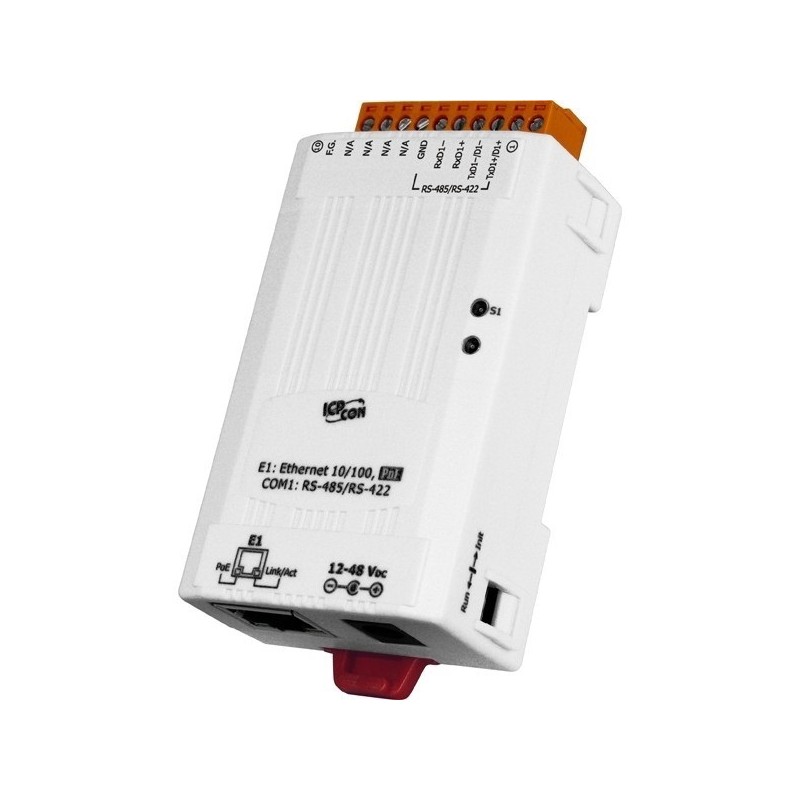

1 Port serial port server, RS422 / 485, PoE. Serial Device Server

External COM port via Ethernet and Internet
RS422 / 485 Serial port via screw terminal
Power supplied from POE or 12 - 48VDC
Your mounting

ETH1SER-POE485I
1,387.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETH1SER-POE485I er en RS422/485 serieport konverter med stort temperaturområde til Ethernet netværk, f.eks. lokalnet og/eller Internet. Den serielle port kan arbejde med hastigheder op til 115,2 Kbit/s. PoE funktionen erstatter en separat strømforsyning, men 230 VAC adapter medfølger.

Administration
Indstilles over netværk via http
Andet
Leveres inkl. 100 ~ 240 VAC adapter, program CD og manual
Driftstemperatur
-25 - 75°C
Kabinet
Flammehæmmet plastic hus, der overholder UL94-V0 standarden
Montering
DIN skinne
Netværk
1 x 10/100 Mbit Ethernet netværksport
Porte
Hastigheder fra 300 bit/s til 115,2 Kbit/s. Databit: 5/6/7/8. Stopbit:1/2. Paritet: Lige/Ulige/Ingen
Protokol
TCP, UDP, DHCP, HTTP
Signaler
RS422: TxD+, TxD-, RxD+, RxD-, GND. RS485: DATA+ (A), DATA- (B), GND
Software
COM-driver til Windows XP, Vista 32/64 bit Windows 7 32/64 bit og 2003 server 32/64 bit og 2008 server 32/64 bit samt WIN8/10
Stik
Seriel port: skrueterminal. Ethernet: 1x RJ45 hunstik
Strømforsyning
12 ~ 48 VDC via DC Jack eller 48 VDC via netværkskabel. Maks 1,2W
