Data collector via Internet / LAN, 4 x Digital in, 4 x analog in, 4 x relay output, MODBUS, MQTT

Web based Data collector module with built-in WebServer
Supports MQTT 3.1.1 protocol
4 x digital input Dry - external contact without voltage
4 x analogue inputs with 0 to 10VDC, 0-20mA
4 x powerful relay outputs with NO/NC contacts
RS485 port
MODBUS RTU up to 24 registers (sensors)
Modbus TCP/IP support
Data logger with memory for 70,000 logs
SNMP v3 support with trap alarm
4 pcs. schemes for real-time control of relay
Up to 24 independent alarms
Secure email
XML/JSON and HTTP API commands for client-server
Dynamic DNS support for DynDNS, No-IP and DNS-O-Matic
NTP time sync
Supply voltage: 10 - 32VDC - purchase PSU
Dimensions: 145 x 90 x 40 mm

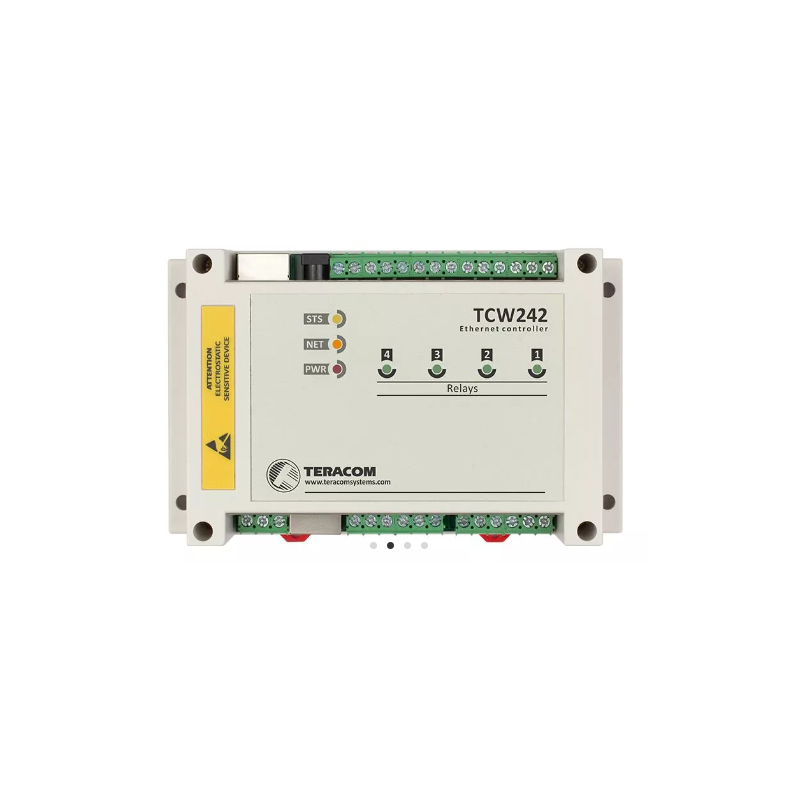

TCW242
2,524.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The TCW242 is a top-of-the-line Industrial IoT module designed to meet the demanding monitoring and control needs of industrial applications. With Ethernet connectivity and data logging capabilities, it provides easy and comprehensive monitoring and analysis of a wide range of parameters.
Equipped with 4 digital inputs, 4 analog inputs, an RS-485 interface for connecting MODBUS RTU sensors, and 4 relays, this Industrial IoT module is a versatile solution. The analog inputs can be configured in either current loop (0-20mA) or voltage (0-10V) modes, offering flexibility in monitoring different parameters.
This Industrial IoT module supports up to 24 Teracom and third-party MODBUS RTU sensors, enabling the configuration of 24 independent monitoring channels.

The TCW242 also offers robust alarm functionality with up to 24 independent alarms that can be set up with 5 user-selectable states. The device supports various communication protocols, including SNMP, HTTP API, MODBUS TCP/IP, and MQTT, allowing for easy integration with other industrial systems and devices.
The TCW242 Industrial IoT module is a powerful and versatile solution that delivers advanced monitoring and control capabilities.
