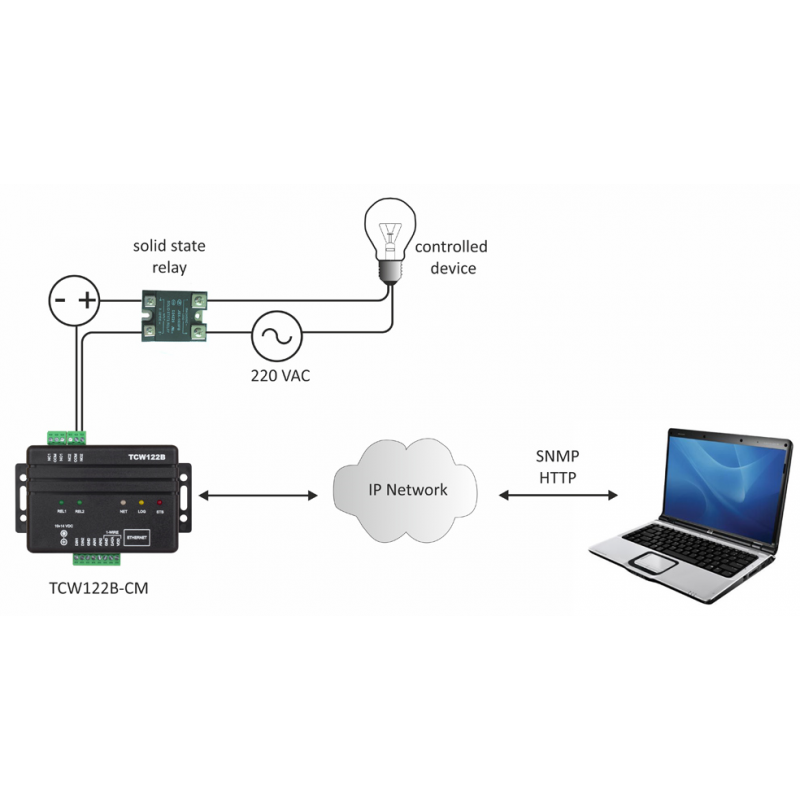

Remote control and measurement via Internet/LAN, 2xDigital input, 2xAnalog, 2xRelay output, 1-wire sensor input, 10 - 14VDC

Module with password protected Web based configuration and control

1 x digital input with "dry contact" or "logic level" mode (max. 5.5VDC)

8 x relay outputs with NO/NC contacts (3Amp)

SNMP v.1 support

SNMP traps conditional alarm sending

Email transmission upon alarm

SMTP with authentication (SSL/TLS is not supported)

XML and HTTP API commands

Remote firmware update

Robust DIN-Rail/wall mounting.

Supply voltage: 10 - 14VDC

Data logger for external temperature and humidity sensors
Sensors are not included - must be purchased separately, see selection
Memory for 70,000 measurements
Temperature, humidity and dew point can be displayed graphically
1-Wire and RS485 sensor interface
Up to 8 Teracom sensors can be connected
MODBUS TCP/IP support
SNMP v2 with trap alarm for 5 email recipients
Secure email
XML/JSON and HTTP API commands for client-server
Dynamic DNS, DynDNS, No-IP and DNS-O-Matic
NTP support for time synchronization
Remote firmware update
Supply voltage: 10 - 32VDC - purchase PSU

1-wire Combi Sensor
Temperature: -20 - +60 ° C +/- 0.6 ° C
Resolution: 0.1 ° C
Humidity (Moisture): 5 -95% Rh +/- 5%
Resolution 0.1%Rh
IP54 Plastic housing, very sturdy
Up to 8 sensors on the same 1-wire
16 bits at temperature
12 bits at moisture
Supply Voltage: 4.5 / 25mW
Dimensions: 74 x 66 x 36 mm

GSM/LTE alarm - 4G

Configuration via USB (Windows program) or SMS

2 x digital inputs with "dry contact" or "logic level" mode

2 x analog inputs from 0 to 60VDC, 10 bits

2 x relay outputs with NO/NC contacts

1-Wire interface for 4 Teracom temperature and humidity sensors

Input can be navigated with alarm text etc.

SMS alarm - up to 5 numbers

Email alert - up to 5 email recipients, SMTP with TLS support

1 relay can be activated with calls from up to 100 phone numbers

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

MQTT 3.1.1 support

Firmware update "over the air"

Supply voltage: 8 - 28VDC, 2Watt - optional PSU

Dimensions: 109 x 65 x 32 mm

Weight: 152g

Combi sensor for temperature and humidity measurement

Modbus RTU

2 x RJ45 connectors - with daisy chain to next module

RS485 Bus to Controller.

Up to 32 devices can be connected to the Controller

3.0% relative humidity measurement accuracy

12 bit resolution for moisture measurement

14 bit resolution for temperature measurement

With mounting flanges

Excellent long-term stability

Each module has its own ID code

Multi-band 4G LTE Cat.1 controller, logger and alarm

Setup via USB, SMS and HTTP API

USB setup - use USB cable with Mini B male

2 digital “dry contacts”. High on contact

4 analog inputs, 0 - 10VDC or 4-20mA input (10bit)

4 relay outputs, COM, NO and NC

1-Wire input for up to 8 Teracom sensors

1 x RS485 for max. 8 MODBUS RTU sensors

Data logger with 70,000 loggings

Upload data to HTTP/HTTPS Post in XML/JSON

SMS alarm and Email alarm for 5 recipients

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

10 to 28VDC, 370mA @ 12VDC - optional PSU

Dimensions: 158 x 119 x 34 mm

Weight: 470g

Temperature: -20 - +55°C

Smoke alarm with a diameter of 15 meters
installation up to 11 meters high
With potential-free relay contact
Smoke sensitivity: EN 54-7:2000+ A1:2002
Operating temperature: -10 to +55 °C
Dimensions: Ø100 mm, h 47 mm
Weight: 100 g

Open board til smart temperatur- eller fugt måling and styring
Password beskyttet Web baseret konfiguration og kontrol
1 x digital input med “dry contact” og “logic level” mode
1 x analog input fra 0 til 60VDC
1 relæ output med NO/NC kontakter
1-Wire input til 1 temperature eller fugtmåler
SNMP v.1 support
SNMP traps ved alarm
E-mail udsendelse ved alarm
SMTP med godkendelse (SSL/TLS er ikke supporteret)
HTTP og XML API kommandoer
Remote FTP firmware update.
