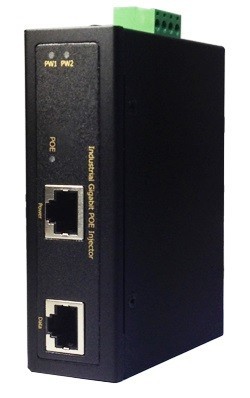

PoE Injector for Gigabit network, 48-56VDC, 95W
PoE injector
2 x 10/100 / 1000Mbit RJ45 (PoE)
UTP / TCP Cat.5e or over
Rugged Aluminum, IP30 protection
Maximum POE 95watts at 56VDC input
Operating Temperature: -40 ° C ~ 75 ° C
Humidity: 5% to 95% (Non-condensing)

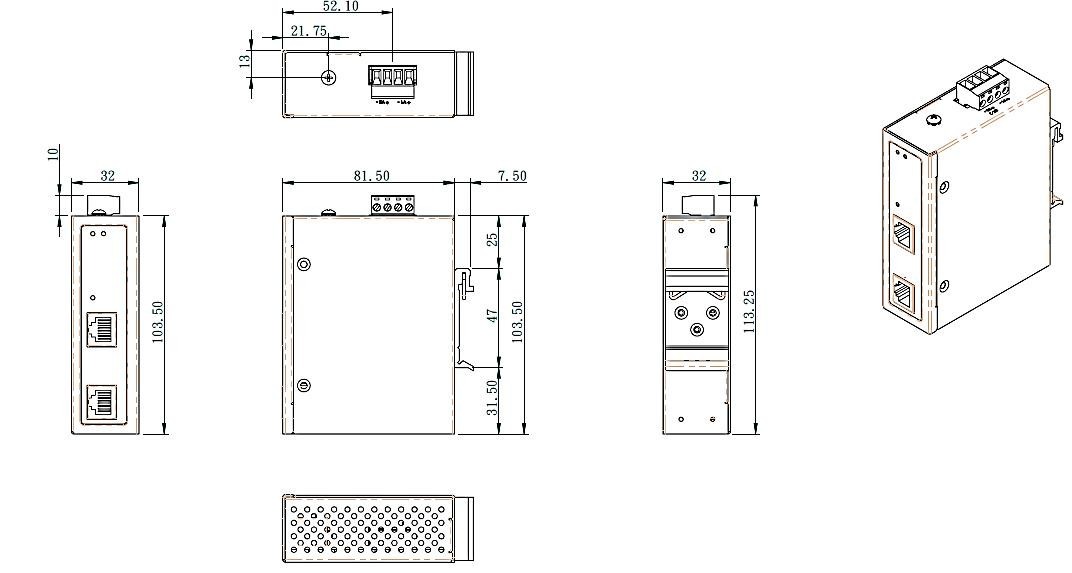

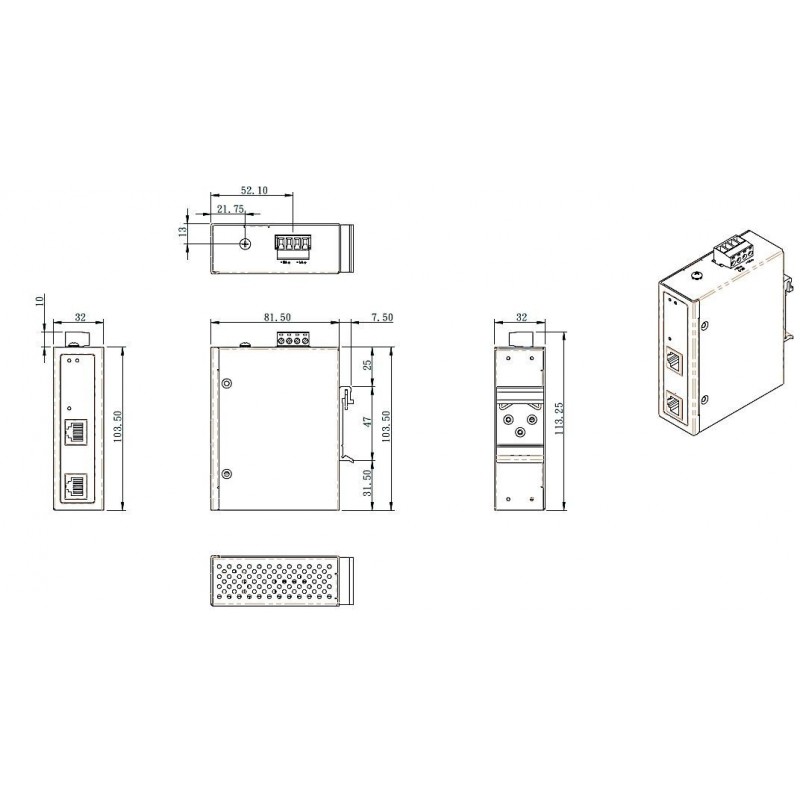

Dimensions: 103.5 x 32 x 81.5 mm & nbsp;
Compliant with 95W Power over HDBaseT (PoH) Standard
Metal housing with IP30 density
DIN rail and wall bracket
1,476.00 kr
Excl. VAT
Quantity
On the way in
Product number ETH-POE48-95WBH
Specifications
Driftstemperatur | -40°C - +85°C |
---|---|
Forsyning | 48-56 VDC |
Luftfugtighed | 5% - 95% |
Netværk | 1xRJ-45 10/100/1000BaseT(X) Data 1xRJ-45 10/100/1000BaseT(X) Data with PoE Output Power, Compliant with 95W Power over HDBaseT (PoH) standard |
Porte | 2 x 10/100/1000Mbit RJ45 |
Udgangsspænding | Op til 95W |
ETH-POE48-95WBH can deliver up to 95W using 56VDC supply.
Based on and backward compatible with the IEEE 802.3at PoE Plus standard, POH delivers up to 100W DC power over four pair of Ethernet cable for video signals at a distance of up to 100 meters (m) - enough to operate a typical LED TV.
The POH technology opens the door to a cost effective, easy way to deliver power for digital signage at airports, hotels, hospitals, cafeterias or any other environment that needs a video display - eliminates the need for AC power. This is especially appealing for applications near water where AC power is a safety hazard.
