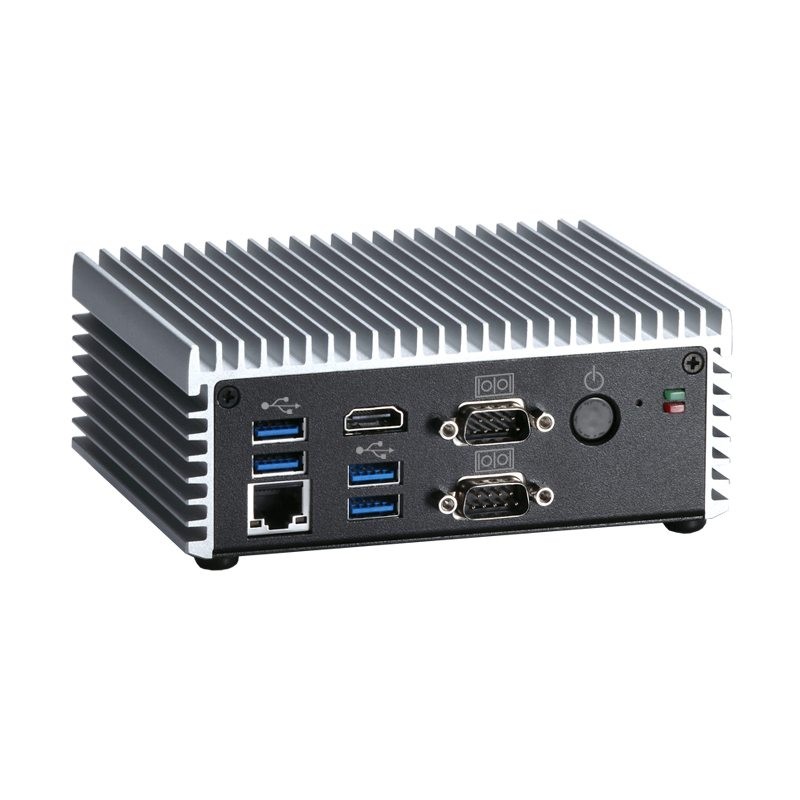

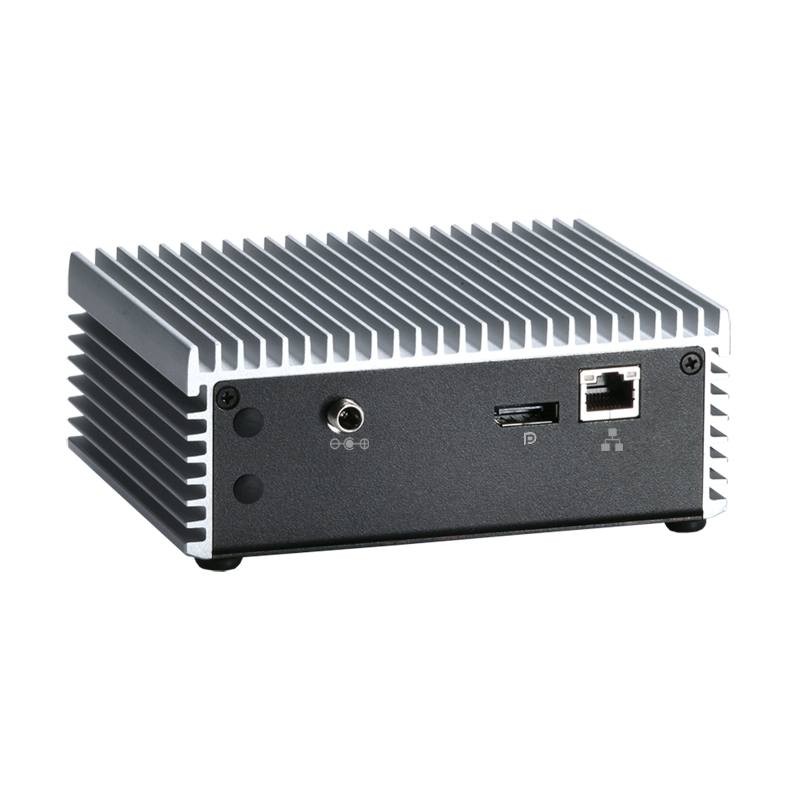

Embedded PC Intel® Core™ i3-5010U ULT SoC, HDMI/DisplayPort, 2 GbE LANs, 4 USB 3.0, 2 COM and PCIe Mini Card

Intel® Haswell & Core™ i3-5010U Broadwell ULT SoC
204-pin DDR3L-1600 SO-DIMM, up to 8GB
Fanless operation design with compact size

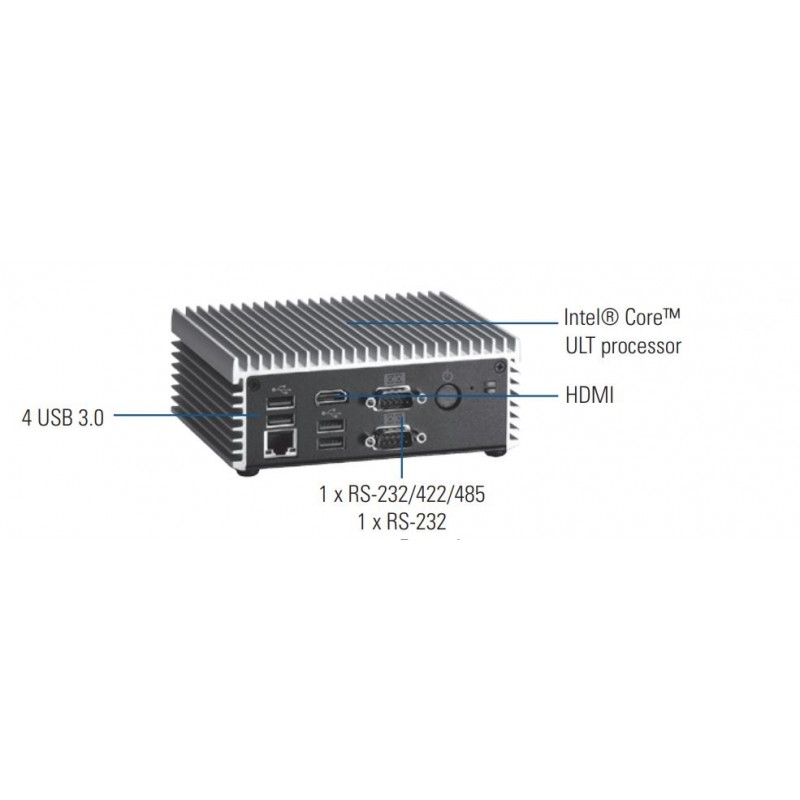

1 RS-232/422/485 and 1 RS-232 port

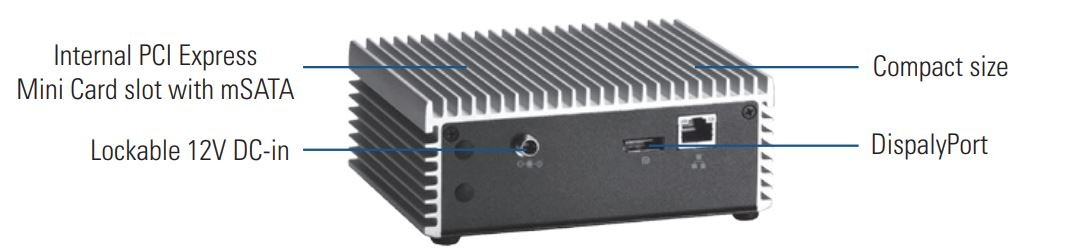

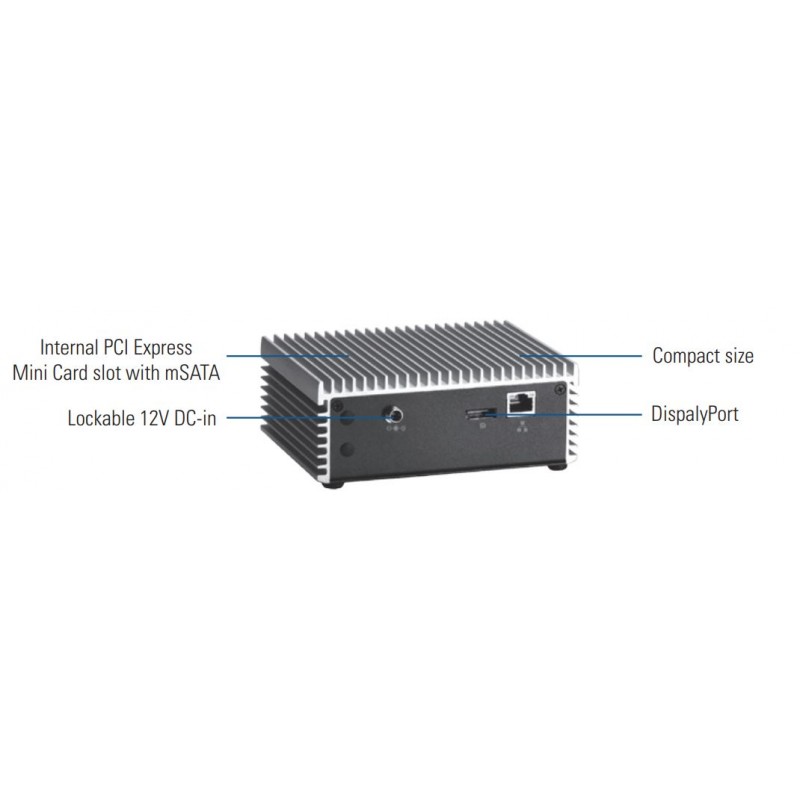

One 2.5” 9.5mm SATA HDD drive bay and mSATA interface
1 PCI Express Mini Card slot and 4 USB 3.0 ports
DisplayPort and HDMI with dual-view supported

EPC-I3-2COM4USB
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

En af vores embedded løsninger. kompakt med i3 CPU. Kan leveres med Celeron/i5 processor.

CPU
CPU Intel® i3-5010U 2.1 GHz Broadwell ULT SoC
Chipset
SoC Integrated
Farve
Standard Color Silver-Black
Andet
1 x VDC 12V power input connector 1 x ATX power switch 1 x Reset button
BIOS
AMI
Approval
CE, UL, FCC & VCCI
Chok/Vibration
Vibration Endurance 3 Grms with SSD™ (5-500Hz, X, Y, Z directions)
Dimensioner
141.5 mm (5.57") (W) x 106 mm (4.17") (D) x 55 mm (2.17") (H)
Driftstemperatur
-20°C ~ +50°C (-4°F ~ +122°F) (with W.T. SSD) Humidity 10% ~ 90% , non-condensing
Ethernet
2 x 10/100/1000 Mbps Ethernet (Intel® i218LM supports wake on LAN,PXE Boot ROM; i210AT)
Forsyning
12Vdc Jack connection
Hukommelse
System Memory 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
IP-Tæthed
IP40
LED
1 x orange LED for HDD active
Compositions
Construction Aluminum extrusion and heavy-duty steel
Msata
1 x mSATA
OS SUPPORT
WE8S, WES7, Linux, WIN 10
Porte
1 x RS-232/422/485 1 x RS-232
Storage
1 x 2.5” 9.5mm SATA HDD drive bay
Udgange
1 x DisplayPort 1 x HDMI
Weight
(net/gross) 0.8 kg (1.76 lb)/1.5 kg (3.31 lb)
Watchdog
255 levels, 1 ~ 255 sec.
WiFi/WLAN
2 x SMA type connector opening for antenna, Withour PCI express ethernet controller
