Embedded PC i3/i5/i7, Celeron, 2 x HDMI, 1 x DP, 4xGbit, 6 USB 6th/7th Gen. CPU
6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HDD (RAID0/1 support)
9-36VDC

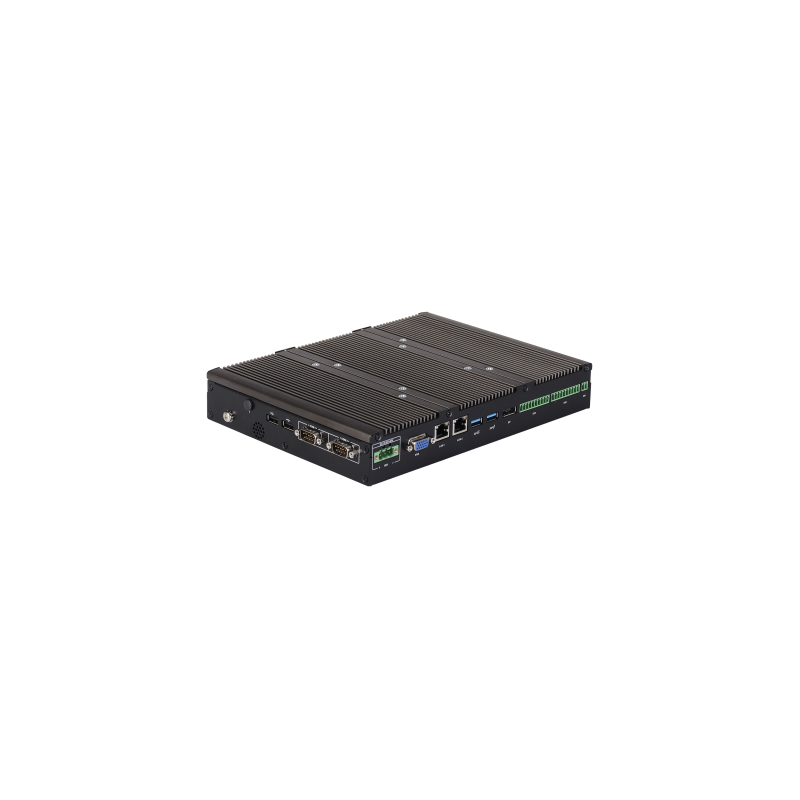

Onboard 8th Generation Intel® Core™ U Series Processor
Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) (standard)
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
Supports CDS Technology for Convertible Panel PC
Built-in Two 2W Internal Speakers
6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HDD (RAID0/1 support)
9-36VDC
Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
Max. 64GB RAM
Intel Q370 Chipset
Intel UHD 620 Graphics
XLow-profile chassis with hot-swappable 2.5" HDD/ SSD tray
Rugged,
4x COM port (2x RS232, 2x RS232/422/485)
2x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolutionwide
Temperature range from -25°C to 70°C fanless operation
Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 1
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix
Fanless Design
CPU Socket LGA 1151 Gen. 6 & 7
Max. 32GB RAM
2 x RS232 / 422/485
4 x RS232
6 x USB 3.0 / 2.0
3 x RJ45 Gbit
DisplayPort, HDMI, VGA and DVI (Supports 3 screens simultaneously)
Power on / off delay control / Configurable ignition power control
Option:WiFi / 3G / 4G / GPS and I / O Extension
2 SATA SSD (1 x removable, 1 x internal),
Supports RAID 0.1
TPM 2.0 Support
DC power input (9 ~ 36V)
Windows 10 IOT ( For 7th Gen Intel CPU)
Windows 7 / Windows8.1/ Windows 10 IOT ( For 6th Gen Intel CPU)
Linux (Kernal 4.4.x )
