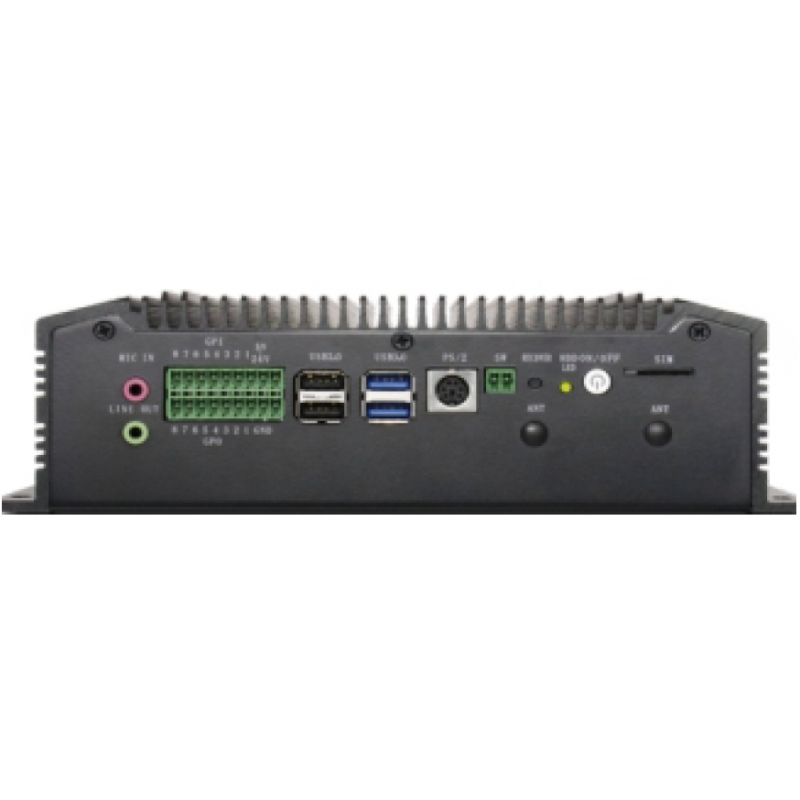

Fanless Embedded PC with Intel® I7 CPU, 9~36 VDC, -20 ~ 60°C, 4x COM, 4x LAN, 4x USB

Fanless design (embedded heat pipe cooling solution)

12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)

Up to 60W GPU MXM module expansion

802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports

DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)

On/off delay control / configurable ignition current control

Supports TPM 2.0 and Time-Sensitive Networking (TSN)

Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported

Front-accessible I/O

1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT

1 x M.2 M for NVMe SSD

285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN

DC 9~36V input

CE, FCC Class A, E-mark

optional extras

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x 802.3at Gigabit PoE + ports via RJ45 connectors
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express Chipset High Speed ​​
RAM: 1 x SO-DIMM DDR3L 1333/1600, 1333/1600 LPDDR3 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Gbit Intel
2 x HDMI
4x USB 3.0
4 x USB3.0
4 x USB 2.0
6 x RS232
WIFI: OPTION!
Supply DC12
234 * 150 * 50MM
Support: Windows 7 / Windows 8 / Windows 10 / Linux

Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
SODIMM MAX. 32GB DDR4 3200
2x 2.5GbE
4x USB3.2 Gen 1 with screw-lock
1x M.2 2280
Gen4 x4 NVMe
1x 3.5"/2.5" SATA HDD/SSD storage
4-CH isolated DI and 4-CH isolated DO
TPM 2.0
VGA + DP dual display outputs
-25°C to 60°C fanless operation (Need special RAM and SSD)
Compact 212 x 165 x 80 mm
Can be wall and DIN mounted needs to be ordered special
1x3-PIN terminal 8~35Vdc remote ON/OFF
