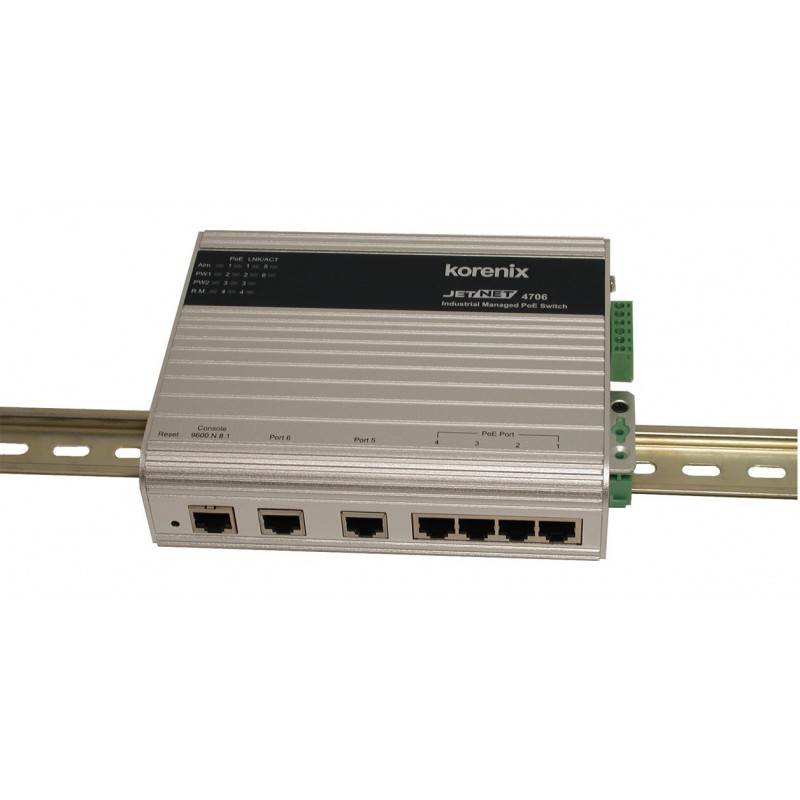

Korenix JETNET 4706 - 6 port switch 4 x 10/100Mbit + 2 x 10/100Mbit Rj45 - DANBIT

6 port switch 4 x 10/100Mbit + 2 x 10/100Mbit Rj45 uplink, POE+, Managed, 48VDC Jetnet 4706

Name: 6 port switch 4 x 10/100Mbit + 2 x 10/100Mbit Rj45 uplink, POE+, Managed, 48VDC Jetnet 4706
Brand: Danbit A/S
SKU: ESW6POE+
Price: 322.56 EUR
Availability: InStock

REMAINDER SALE

4 x 10/100Mbit RJ45 Managed switch with PoE+
2 x 10/100Mbit RJ45 redundant uplink ports
DC 48V Power Input (power supply not included)
Up to 25 Watts per port
Max. 80 Watt total power
Multiple Super Ring technology (MSRTM), 5ms recovery time
Dual Homing (RDHTM)
IGMP snooping multicast
Built-in hardware watchdog timer for system auto-reset
-40~60°C operating temperature

322.56 €

Excl. VAT

Quantity

Physically in stock

Product number ESW6POE+

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

Dimensioner	136 mm (H)
Driftstemperatur	-10° til +60° C
LED	Indikation af on/off, link og aktivitet
Porte	6 x 10/100 Mbit porte med RJ45-stik og automatisk detektering af lige/krydset kabel
Strømforsyning	Redundante indgange til strømforsyning; 2 x terminalblok til 48 VDC. Switchen bruger 11,5 watt maksimalt. Det samlede strømforbrug er afhængig af PoE belastningen
Tilbehør	Leveres med DIN skinnebeslag, vægbeslag, manual på CD og quickguide
Understøtter	Understøtter QoS (Quality of Service), hvor bestemte typer netværkstrafik kan prioriteres højere end andre typer (f.eks. ved maskinstyring eller IP-telefoni). Desuden understøttes VLAN
Watchdog	overvåger driften og laver automatisk reset hvis enheden ”fryser”

6-port Ethernet switch with PoE Plus and ring technology.
Self-configuring network ensures maximum uptime. 30 W PoE Plus.
ESW6POE+ supports the Super Ring technology and PoE Plus, which can deliver more power (30 W) than the normal PoE standard (15.4 W). To take full advantage of this, it is required that the connected PoE devices also support PoE Plus (IEEE 802.3at).

Can supply other devices on the network with power via the network cable (Power over Ethernet or PoE), so a power supply for these devices is redundant. Of course, this requires that the devices support PoE. Has functions for alarming in the event of errors via e.g. relay output and e-mail, administration via web page, automatic reset when the system hangs and prioritization of important traffic (QoS). All this as well as DIN rail mounting, a solid IP31 sealed aluminum housing and an operating temperature range from -10 to 60°C make this switch a good choice.
