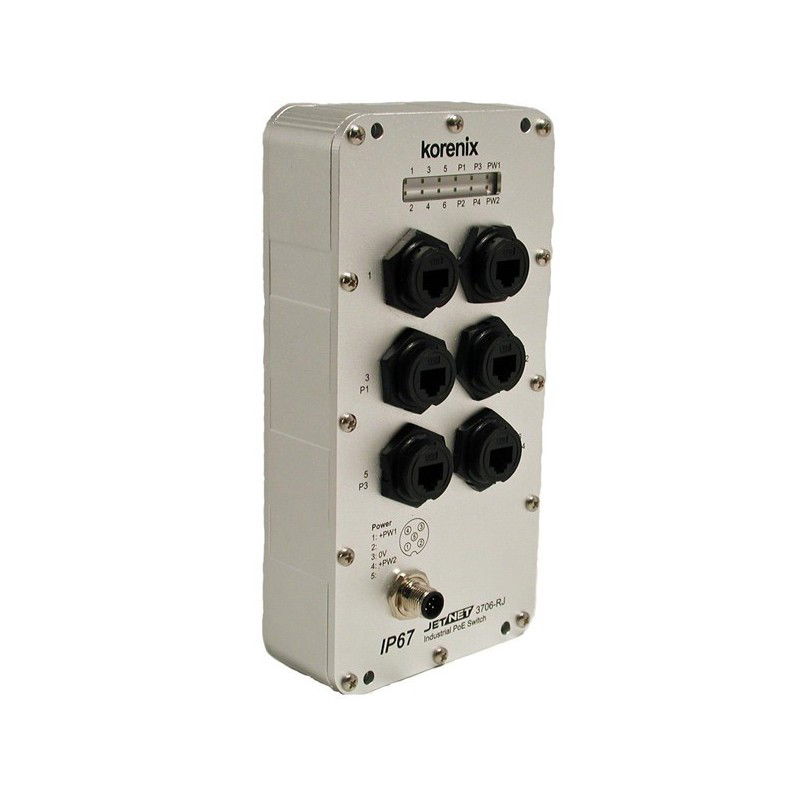

IP67 Unmanaged 6-Port Switch - 10/100 RJ45, 12-48VDC

6 ports switch 10/100 RJ45 IP67 vandtæt Box - Unmanaged, 12-48VDC

Name: 6 ports switch 10/100 RJ45 IP67 vandtæt Box - Unmanaged, 12-48VDC
Brand: Danbit A/S
SKU: ESW6-IP67
Price: 372.88 USD
Availability: InStock

Unmanaged industrial switch with 6 ports
6 x RJ45 10/100 Mbit

IP67 sealed enclosure - wall mounting

$372.88

Excl. VAT

Quantity

Physically in stock

Product number ESW6-IP67

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

Dimensioner	213,6 mm (H)
Driftstemperatur	-25° til +70° C
Porte	6 x 10/100 Ethernetporte med RJ45 hunstik og IP67 tæthed
Strømforsyning	Redundant stik til 12 ~ 48 VDC strømforsyning (strømforsyning medfølger ikke, benyt evt. DC48V625MA-SM)
Tilbehør	Skruer og beslag til vægmontering medfølger
Weight	1200g

Vandtæt 6 ports Ethernet switch.

Industriel switch med IP67 beskyttelse.

Industriel switch til Ethernet med 6 porte. Med ESW6-IP67 følger specielle vandtætte kapper, der monteres ud over RJ45 stikkene og gør dem vandtætte. Kapperne skal monteres på kablet inden RJ45 stikkene.

Der medfølger specielt 5 polet strømstik, der loddes på strømkablet.

Strømkablets og netværkskablets tykkelse kan være 3-8 mm..

2000 MAC adresser, 448 Kbit buffer
