4 x Isolated RS422 / 485 serial ports, PCI DOS, Win 7 (32BIT) Linux support Korenix JETCARD 1404I
REMAINDER SALE

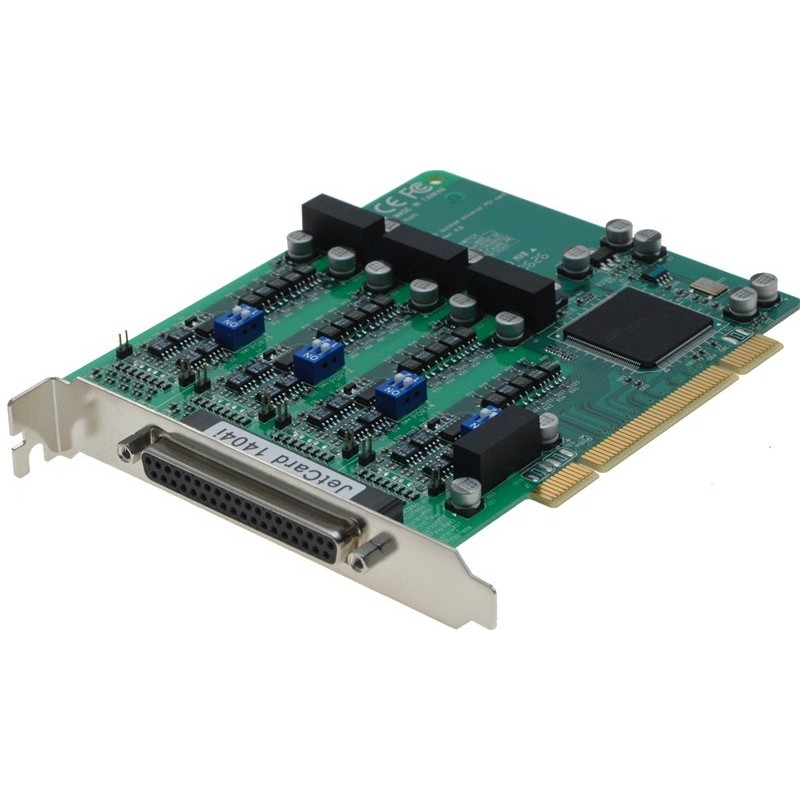

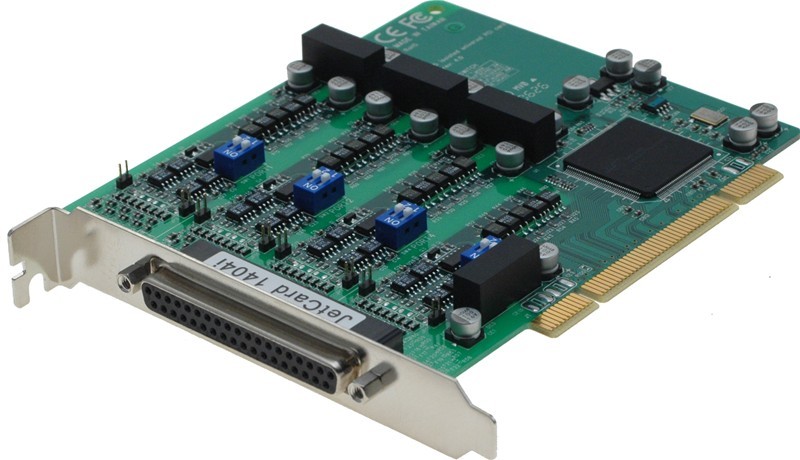

JetCard 1404i 4 x isolated RS422-485
With 2 KV optical isolation
US SUPPORT
Windows 98/Me/NT/2000/XP/2003, Win 7 32bit
Linux RedHat Enterprise 4.0 (2.6.9)/RedHat Enterprise 3.0 (2.4.21)
RedHat 9.0 (2.4.20)/RedHat 8.0 (2.4.18)/RedHat 7.3 (2.4.18)
RedHat 7.2 (2.4.7)/FC5(2.6.16)/FC3(2.6.9)/ FC2(2.6.5)/FC1(2.4.22)
Mandrake 10.1(2.6.8)/Mandrake 9.2 (2.4.22) Regulat
$184.61
Excl. VAT
Quantity
Physically in stock
Product number RS485ISO4K
Specifications
Baudrate | 50 bit/s ~ 921,6 Kbit/s |
---|---|
Drivere | Windows 98, Me, NT, 2000, XP, 2003 og Vista |
Duplex | Point-to-point fuld duplex eller multidrop halv duplex (Kortet understøtter automatisk flow control) |
Høj/lav profil | Høj bagplade |
Isolation | 2 KV optisk isolation og 15 KV ESD beskyttelse |
Porte | 2-4 porte til enten RS422 eller RS485. Op til 4 kort kan monteres i samme system (giver 8-16 porte i alt) |
Signaler | RS-422: TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND (4-tråds) RS-485: Data+/-, GND (2-tråds) |
Spænding | 3.3 og 5 V PCI |
Stik | 1 x DB37 hunstik (100 cm kabel med 1 x DB37 hanstik og 4 x DB9 hanstik medfølger) |
Strømforbrug | Maks. 590 mA (+5 V) |
Terminering | Ingen terminering nødvendig, da termineringsmodstande (120 Ω) er indbygget |
UART | 16C950 kompatibel |
With 2 KV optical isolation.
Limited stock!
