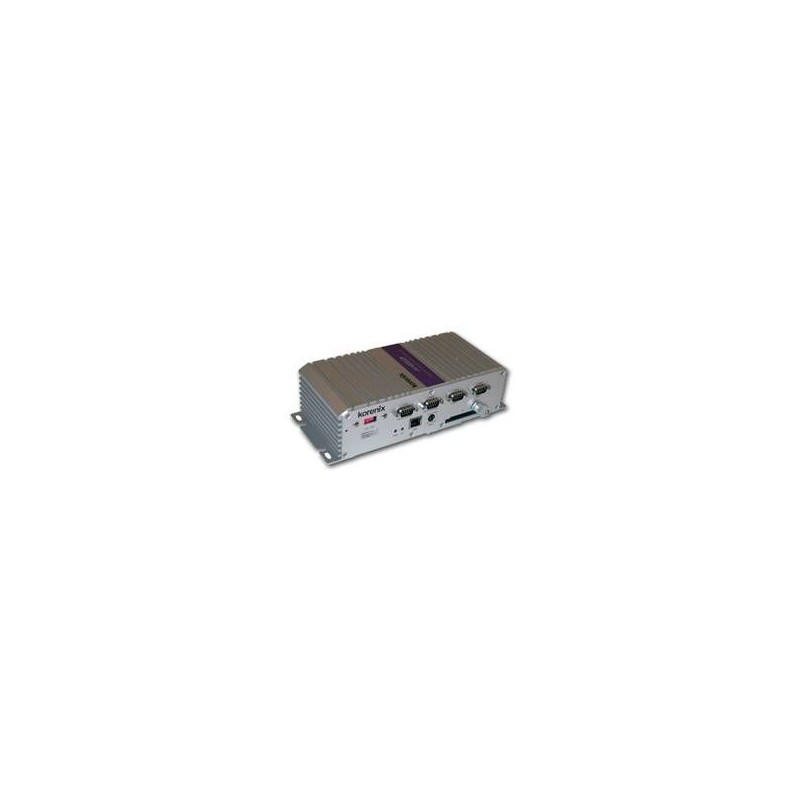

Embedded PC with WIN CE 5.0 - Korenix JETBOX 8210D NEW!

Has a built-in web server, so the programs can be controlled via the web interface or you can see the status.
JETBOX 8210D+CF2G-CC
For application development, help libraries for .NET programming and examples are included. Development of programs takes place locally on the PC.
Equipped with 4 USB ports, 2 RS232 ports, 2 422/485 ports and 2 10/100 Mbit Ethernet ports. The EPC4SER-CE is designed without a disk drive or similar, resulting in high stability and low heat generation.

CPU:

RISC based Intel Xscale PXA270, 416 MHz

RAM:

Onboard 128 MB RAM

Network:

2 x 10/100 Mbit, full duplex

Serial ports:

2 x RS232 and 2 x 422/485 ports (115.2Kbit), supports the handshake signals

USB:

4 x USB 1.1

Sound:

AC 97 mini din6 female plug

Digital I/O:

16 inputs and 16 outputs 3.3 volts with IDC34 male connector with 1.27 mm in

leg distance. Connector included for mounting on 1.27 mm flat cable

Flash cards:

1 x CompactFlash card reader for type II cards, 2 GB flash card with Windows CE 5.0 included

Graphics:

8MB RAM, 640 x 480 resolution

Operating temperature:

- 15 to + 70 °C

Supply:

9 - 36 V _DC 10 Watt, (power supply not included, use DC12V/1.5A-R+ if necessary

Software:

Operating system:

Windows CE 5.0

Supported

protocols:

TCP, UDP, IPv4, FTP, SNMP V1/V3, ICMP, ARP, DHCP, HTTP, PPP, CHAP, PAP, SMTP, NTP, SSL

File System:

FAT16

Programs:

OS command prompt. Login and user administration. Telnet client program.

FTP client program

Development:

SDK software kit is included for developing own programs in .NET

C libraries and Run-times

Component service (COM and DCOM)

Microsoft Foundation Classes (MFC)

Microsoft .NET Compact Framework

XML, including DOM, XQL, XPATH, XSLT and SAX2

SOAP Toolkit

Winsock 2.2
