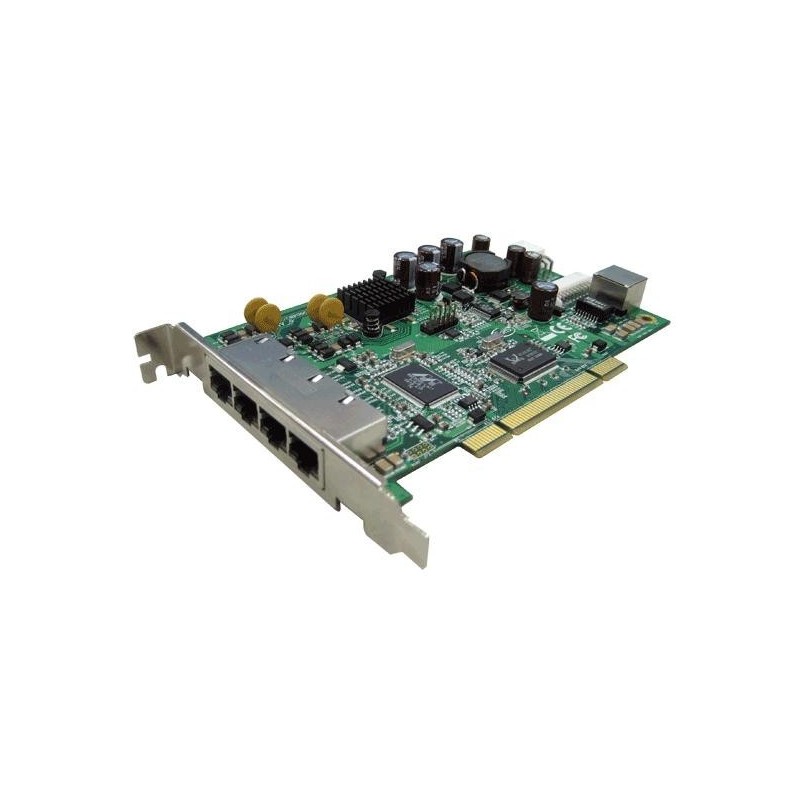

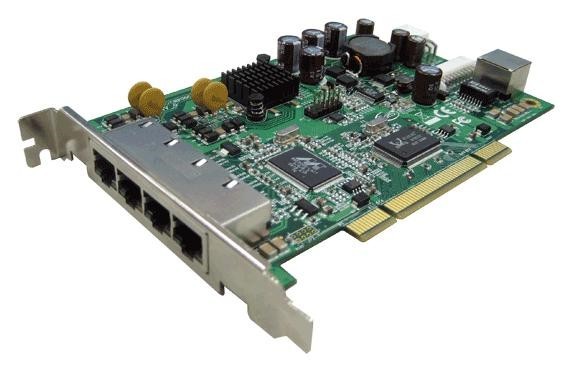

4 port 100Mbit net card, PCI, PoE. Korenix JETCARD 2215
REMAINDER SALE
Korenix Jetcard 2215
4-port 100 Mbit PCI network card with Switch and PoE
$73.20
Excl. VAT
Quantity
Physically in stock
Product number ETH-PCI4POE
Specifications
PoE | IEEE 802.3af PoE standarden |
---|---|
Porte | 4 x RJ45 100Mbit netværksporte |
Standarder | Følger IEEE802.3x, 10/100 Base-TX standarden. Understøtter 802.3af PoE standarden |
Strømforsyning | Strømforsynes via 4-pins ATX stik |
Tilslutning | 32 bit PCI |
Understøtter | Understøtter Auto MDI/MDI-X, autodetektering af krydset/lige kabel |
Can supply PoE equipment directly from a PC.
Based on Realtek RTL 8139+ chip
Limited stock!
Andre produkter i samme kategori:
Korenix JETBOX 3300-W Embedded PC with Linux EOL new
REMAINDER SALE
The EPC-SER2L2 is a compact PC with Embedded Linux that offers many possibilities of use.
Examples of use could be:
- FTP server with 2 network connections, which can utilize local network speeds for uploading files.
- Firewall, proxy server and NAT using the software iptables.
- Built-in GoAhead web server. Files for the web server are placed on a micro SD card and mounted.
- Serial port server with ser2net.
$394.11
Item Number: EPC-SER2L2
Network module with 8 analog inputs Korenix JETI / O 6511
Korenix JETI / O 6511
Network module with 8 x analog inputs
Channels: 8
Resolution: 16 bit
Analog inputs: ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface to the power supply
10/100 Mbit m / RJ45 female connector
Operating temperature: - 25 ° C - 70 ° C
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block. Max 3.2 W
$285.48
Item Number: ETHIOA8T-K
