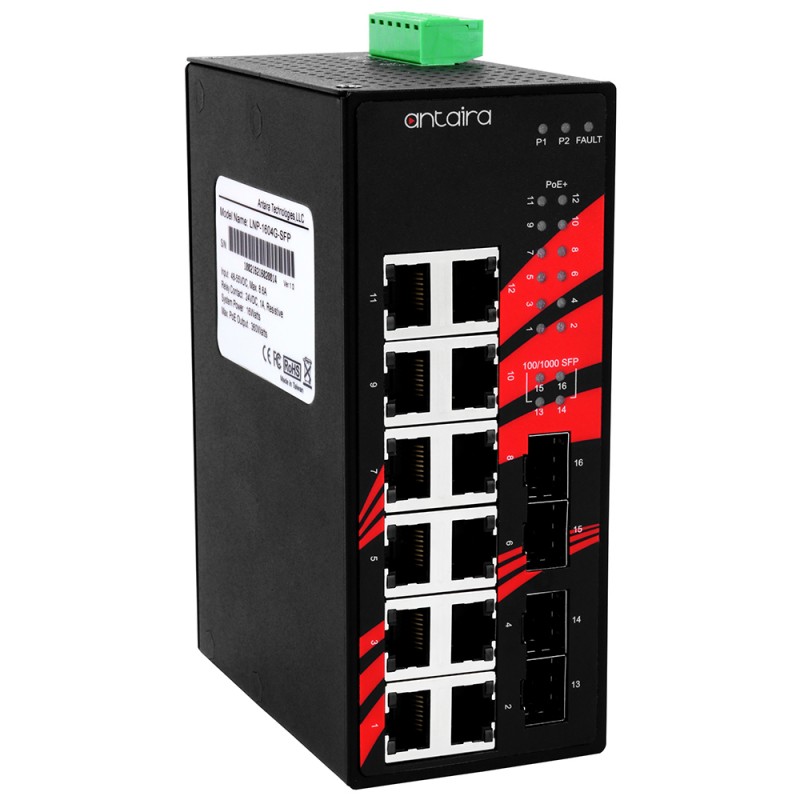

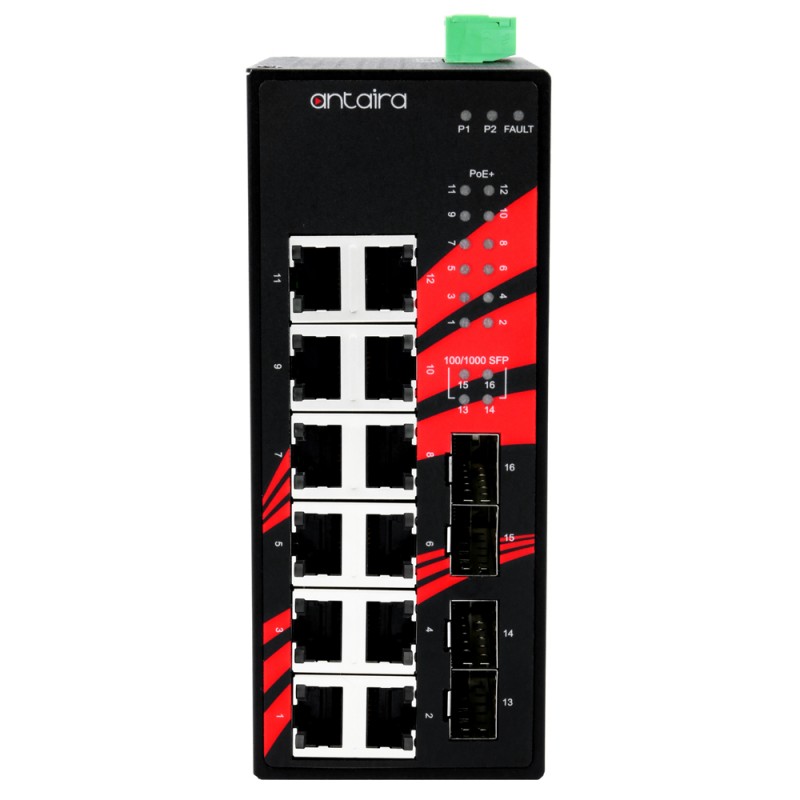

16-Port Gigabit Switch with PoE +, unmanaged 12 x RJ45 ports and 4 x FTP ports, -40 ° to + 75 ° C, 48-55VDC

8 x 10/100 / 1000Tx RJ45 (30W / port)
4 x 100/1000 SFP Ports
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output to Power Failure
IP30 Rugged Metal Case Design
DIN Rail and Wall Mounting
Operating Temperature STD: -10 ° to 70 ° C

24 x 10/100/1000Tx RJ45 (30W/port) IEEE 802.3at PoE+
2 x Gigabit combo (2 x RJ45, 2 x FTP)
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Power supply: 48~55VDC
Built-in relay Output for Power Failure
1U 19" Rackmount design
Operating temperature STD: -10° to 70° C

4 x 10/100 / 1000Mbit, PoE + (30W) IEEE 802.3at
1 x 10/100 / 1000Mbit
2 x 100 / 1000Mbit SFP slot
14Gbps Back Plane
8K MAC Address Table
10.0 Kbytes Jumbo Frame
Overvoltage 2kV DC
ESD Protection 6kV DC
Redundant Power Input Design: 48 - 55VDC
1 Relay Output for Power Error Alarm
IP30 Rugged Metal Cabinet
DIN-Rail and Wall Mount including
Operating temperature: -10 - + 70 ° C

4 x 10/100 / 1000Mbit, PoE + (30W) IEEE 802.3at
1 x 10/100 / 1000Mbit
2 x 100 / 1000Mbit SFP slot
14Gbps Back Plane
8K MAC Address Table
10.0 Kbytes Jumbo Frame
Overvoltage 2kV DC
ESD Protection 6kV DC
Redundant Power Input Design: 48 - 55VDC
1 Relay Output for Power Error Alarm
IP30 Rugged Metal Cabinet
DIN-Rail and Wall Mount including
Extended operating temperature: -40 - + 85 ° C
