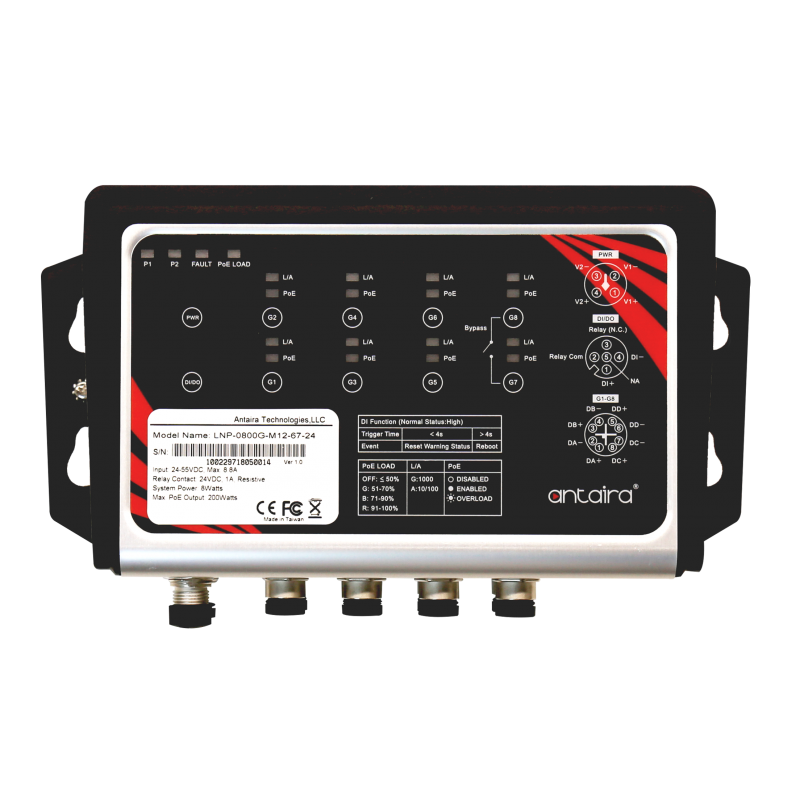

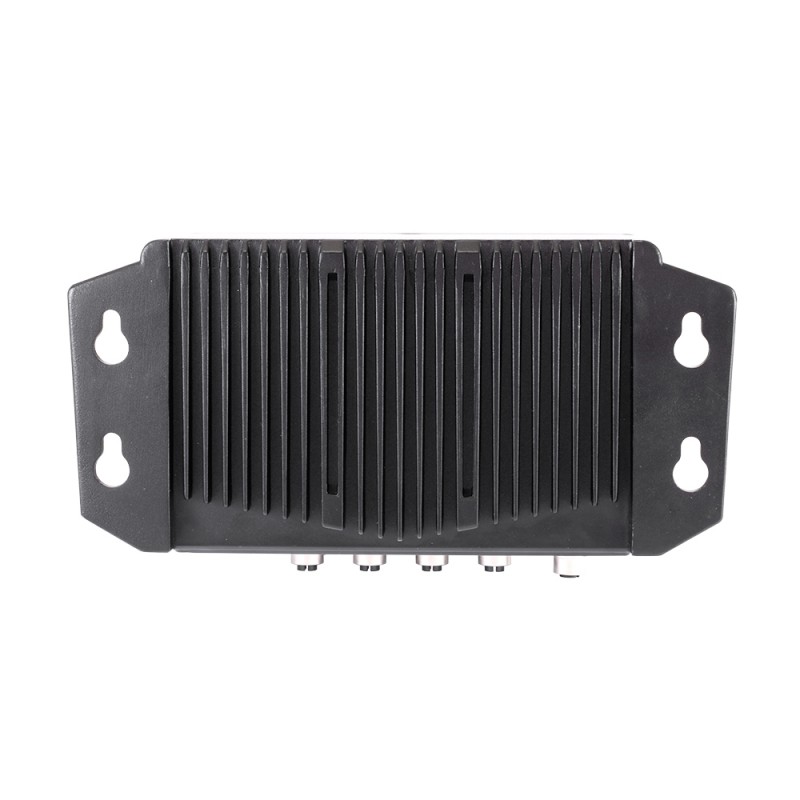

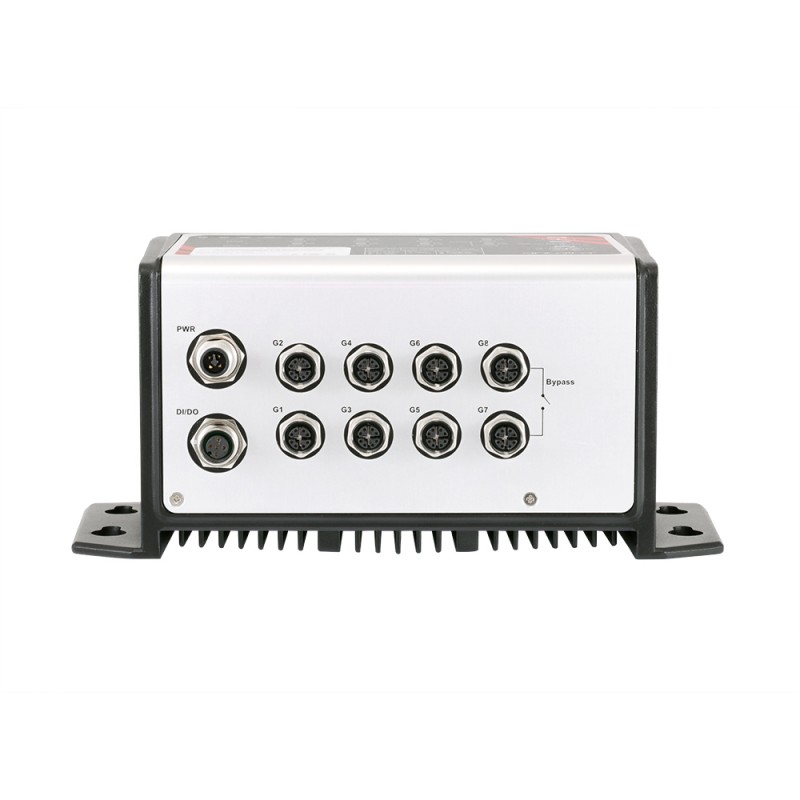

8-port industrial Gigabit IP67 Switch with PoE +, M12 connector (X-Coded), -10 ° to 60 ° C, 24-55VDC

8 x ports 10/100 / 1000Tx, IEEE 802.3at Compliant PoE +
Redundant supply voltage: 24 - 55VDC
Built-in Power Booster Design for PoE / PoE +
Built-in relay output - Power / PoE Failure warning
Bypass Design for Daisy Chain Redundancy
Digital Input / Digital Output
IP67 Rugged Waterproof Metal Design with M12 X-Coded Connection to Ensure Close and Robust Connection
Wall Mounting
Operating Temperature: -10 ° to 60 ° C
Dimensions: 253.57 x 122 x 116.12 mm (W x H x D)

ANR-LNP-0800G-M12-67
15,847.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Approval
EMI, EMS, FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A, CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Buffer
4Mbits
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201
Chok/Vibration
IEC60068-2-6, IEC60068-2-27
Digital I/O
1*Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Dimensioner
253.57 x 122 x 116.12 mm (W x H x D)
Driftstemperatur
-10°C ~ 60°C
Ethernet
8*10/100/1000BaseT(X) with 8*PoE+, 8-pin M12 X-coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Forbindelse
Strøm: 1*M12, 4-pin T-coded, male connector
LED
Power 1, Power 2, Fault, PoE Load Ethernet Ports: On- link / Flash- data transmitting PoE: On- connected to PD devices
Luftfugtighed
5% to 95%, (non-condensing)
Compositions
Metal IP67 protection
Montering
Væg montering
PoE
30W max. per PoE port, Max 200Watts
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3af/at Power over Ethernet
Strømforbrug
8 Watt
Strømforsyning
24-55VDC

4 other products in the same category:

12-Port Industrial PoE +...

12-Port Industrial PoE + Gigabit Unmanaged Switch

8 x 10/100 / 1000Tx RJ45 (30W / port)
2 x 10/100 / 1000Tx RJ45
2 x 100/1000 SFP Ports
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC > UL Class I, Division 2 Certified
Power supply: 48 ~ 55VDC
Built-in relay Output for Power Failure
IP30 Rugged Metal Case Design
DIN rail and Wall mounting
Operating temperature STD: -10 ° to 70 ° C

Price 6,976.00 DKK
Product code: ANR-LNP-1202G-SFP
On the way in
Quick view
26-Port industrial 1U 19"...

26-Port industrial 1U 19" rackmount PoE+ Gigabit unmanaged switch

24 x 10/100/1000Tx RJ45 (30W/port) IEEE 802.3at PoE+
2 x Gigabit combo (2 x RJ45, 2 x FTP)
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Power supply: 48~55VDC
Built-in relay Output for Power Failure
1U 19" Rackmount design
Operating temperature STD: -10° to 70° C

Price 15,209.00 DKK
Product code: ANR-LNP-2602G-SFP
On the way in
Quick view
16-Port Industrial Gigabit...

16-Port Industrial Gigabit PoE + unmanaged switch with 12 RJ45 ports and 4 FTP ports

12 x 10/100 / 1000Tx RJ45 (30W / port) IEEE 802.3at PoE + 4 x 100/1000 SFP Ports
Store-and-Forward Switching Architecture
8K MAC Address Table
12.2Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Power Supply: 48 ~ 55VDC
Built-in Relay Output for Power Failure
IP30 Rugged Metal Case Design
DIN- Rail and Wall Mounting
Operating Temperature STD: -10 ° to 70 ° C

Price 9,330.00 DKK
Product code: ANR-LNP-1604G-SFP
On the way in
Quick view
5 ports Industrial 10/100 /...

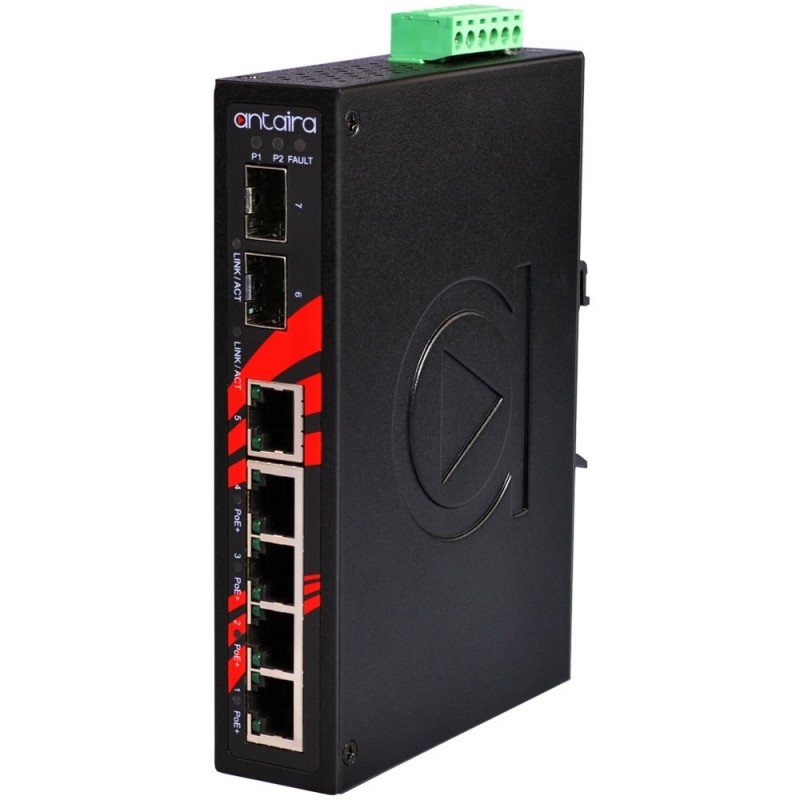

5 ports Industrial 10/100 / 1000Mbit switch + 2 x Gbit SFP slot, PoE + (30W), DIN rail, -40 - + 85 ° C, 48 - 55VDC
