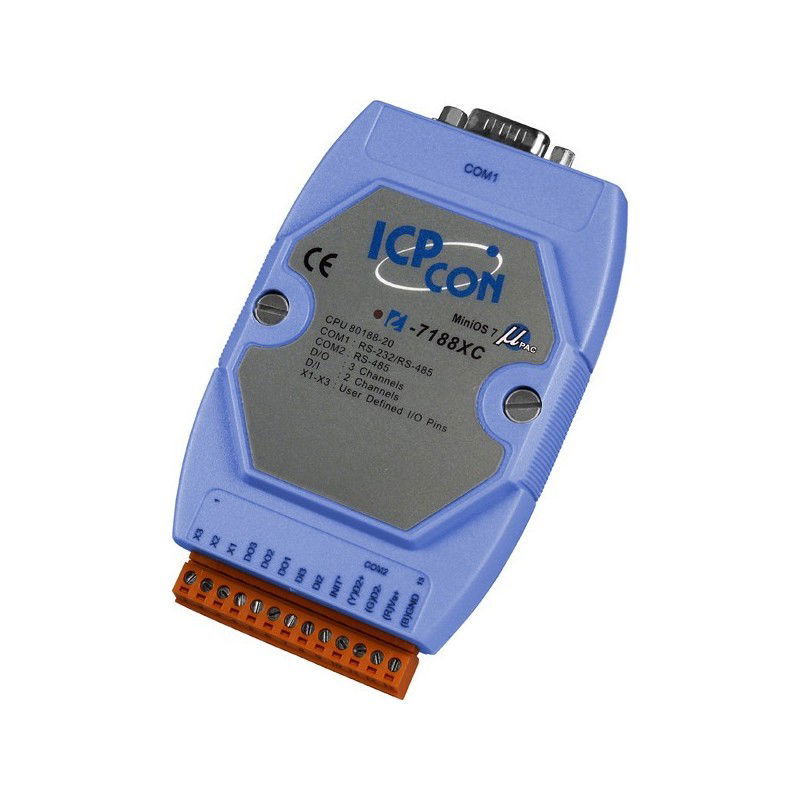

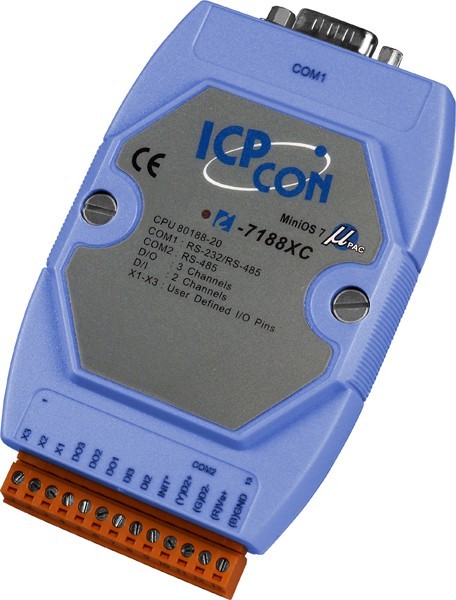

Robust Embedded Controller with Expandable MiniOS7 Modules
Previous
Next
Robust Embedded Controller with Expandable MiniOS7 Modules

Embedded Controller for hard environments - Expandable with built-in modules

Expandable with built-in modules - comes with MiniOS7

2,277.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number M485A-PC-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU 80188, 20 MHz CPU (16 bit mikroprocessor)
BIOS Boot MiniOS7
Flash 256 kB, heraf 192 kB til bruger
Forsyning 10 - 30 VDC, 2 W
Hukommelse SRAM 128 kB, heraf 107 kB til bruger
Indgang 2 stk. Logisk 0: åben Logisk 1: lagt til stel
Porte COM1: RS232/485, COM2: RS485
Software Software til download af brugerprogrammer medfølger
Stik COM1 DB9 hun, COM2 Skrueterminal
Udgange 3 stk. “Open collector” 30 V/100 mA
Udvidelser ntern I/O udvidelsesbus til 1 stk. udvidelsesmodul med analoge indgange eller I/O funktioner m.m. Skrueterminalen har 3 stk. ledige klemmer til dette formål. Skal der bruges flere, bliver standard I/O taget til dette formål

MiniOS7 is a version of DOS, where all features that are not needed when using an embedded PC are removed to make it so full that the program can be on a 64kB ROM circuit. Together with M485A-PCI a software package is provided that includes DLL files, Active X and DDE / OPC server.

Borland Turbo C compiler for application writing to M485x-PC-xxx in the DOS environment, can be downloaded here:

http://edn.embarcadero.com/museum

ICP DAS X104 - 8 programmable I/O channels TTL Expansion Module
8 programmable IO TTL channels

8 programmable I/O channels TTL expansion module for M485A-PC-I

213.00 kr
Item Number: M485A-DIO8
Physically in stock
ADD TO CART
Quick view
ICPDAS X103 Expansion module with digital inputs
7 digital isolated inputs: 3.5 - 30 V, for the embedded PC - M485-PC-I

Spare part

7 digital isolated inputs
3.5 - 30 V
expansion modules for M485A-PC-I

322.00 kr
Item Number: M485A-DI7ISO
Physically in stock
ADD TO CART
Quick view
Prototype Map (as Vero-Board) (64 x 70 mm) for the M485A PC-I series
Prototype card (64 x 70 mm) for the M485A PC in series. Mounts on the circuit board in the unit.

Prototype Map (64 x 70 mm) Expansion module for M485A PC-I

157.00 kr
Item Number: M485PROTO
Physically in stock
ADD TO CART
Quick view
Previous
Next

Other products in same category:

Industrial Fanless embedded mini PC to the network installation firewall
Fanless Ultra Compact industrial embedded PC with Intel Celeron Processor N3350, 4 LAN and 1 HDMI

Intel Celeron Processor N3350
1 x 1866 DDR3L-SO-DIMM, up to 8GB non-ECC memory
4 x 10/100/1000 Mbps Ethernet
1 x RS 232, 2 x USB 3.0
1 x HDMI
Dimesion 33.5 x 146 x 118.2 mm
1 x mSATA (Half size)
1 x mSATA (Full size)
12VDC via DC connector

Call +45 56 66 20 20 for price
Item Number: EPC-N3350-4LAN
Physically in stock
ADD TO CART
Quick view

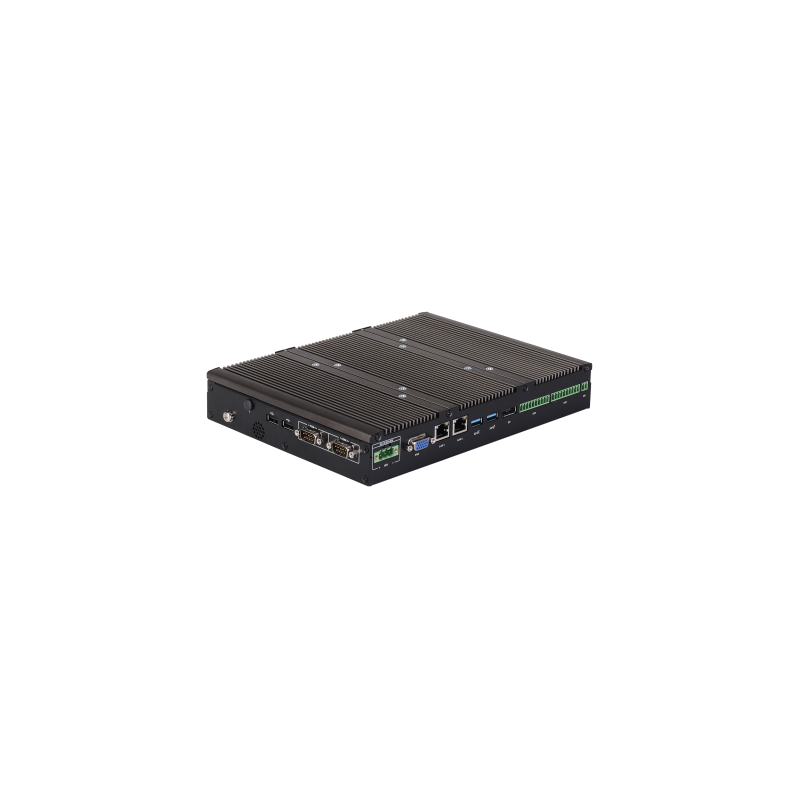

Fanless embedded computer for vehicles with 8th generation Intel processor i3, i5
Embedded PC with 8th Generation Intel i3 CPU, 9~48VDC

Onboard 8th generation Intel® Core ™ U Series Processor

Intel® Core ™ I3-8145ue Dual Core Processor (4M Cache, up to 3.90 GHz) (Standard)

2x DDR4 SO-DIMM, supports up to 2400MHz, 64GB

Integrated USB 3.2 Gen 2 supports up to 10 Gbps

M.2 E-Key for wireless module or Intel CRF module

Supports ignition function (IGN) (Must order additional CFM module)

Supports 2x POE+ function (Need to order extra CFM module)

Supports CDS technology for Panel PC

Built-in two 2W internal speakers

9~48VDC via 3-pin Terminal Block

Call +45 56 66 20 20 for price
Item Number: EPC-GEN8-I3-CDS
Physically in stock
ADD TO CART
Quick view

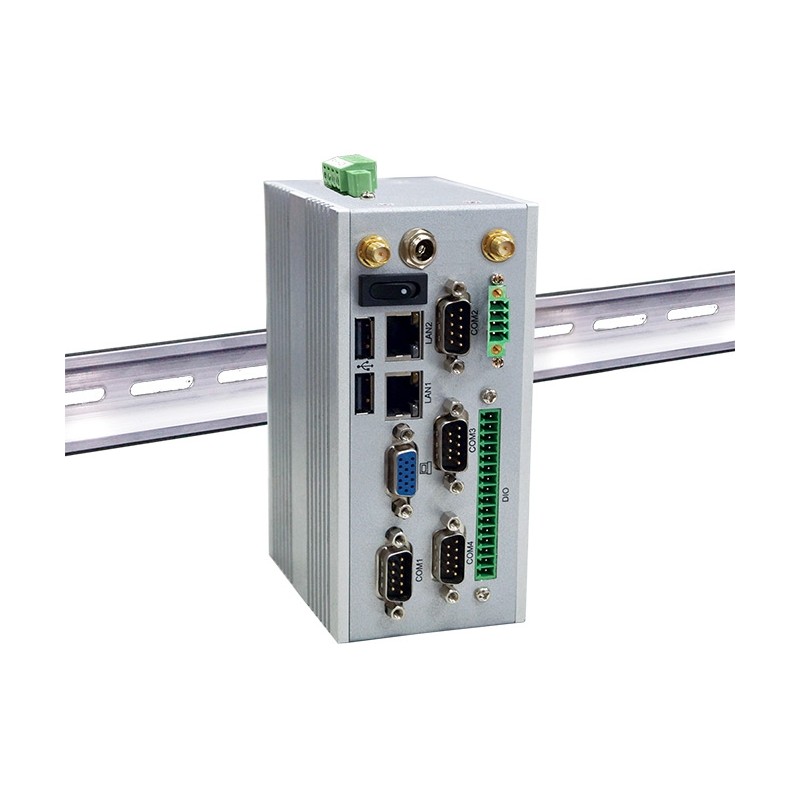

Compact Fanless Embedded PC for Industrial Use
Embedded PC Intel® Bay Trail, Celeron® J1900, 4GB RAM, DIN-rail

Celeron® J1900
4GB DDR3L
2 x GbE, 4 x COM, VGA, 2 x USB
Wide Range 9~36V DC input
mSATA, HDD / SSD*
DIN Rail mountable (with optional Kit)
Dimensions 140 x 92 x 64 mm
Operaiting Temp. 20°C to +60°C

Call +45 56 66 20 20 for price
Item Number: EPC-J1900-DIN
On the way in
ADD TO CART
Quick view

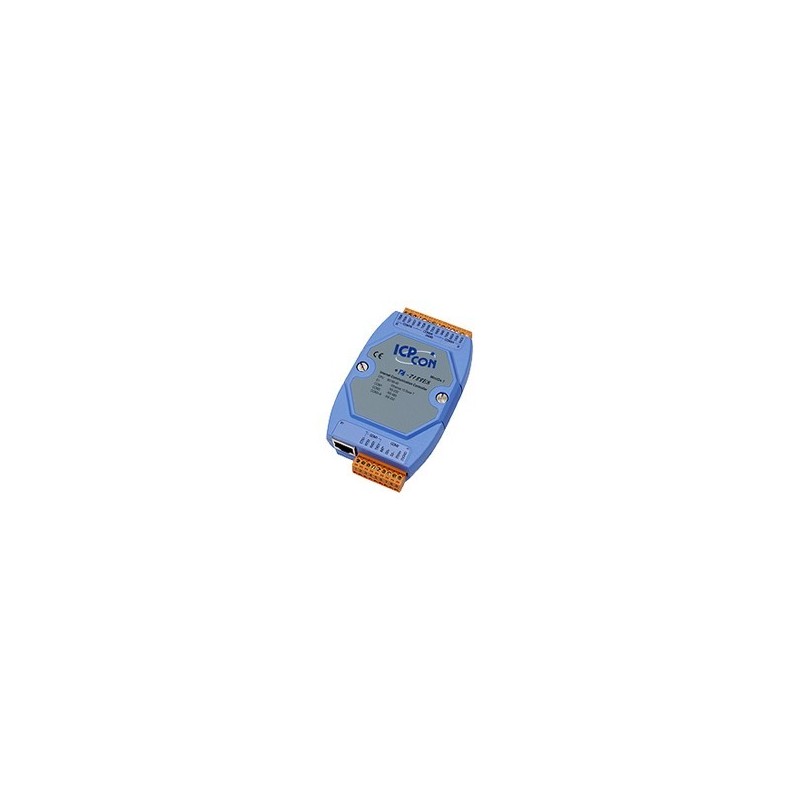

8 ports controller 7 x RS232, 1 x RS485 og 1 x ethernet portforMini...
8 ports controller 7 x RS232, 1 x RS485 og 1 x ethernet port

. Embedded pc. Embedded controller til I/O-styring over TCP/IP netværk/internet

4,167.00 kr
Item Number: M485-PC8ETH-I
On the way in
ADD TO CART
Quick view

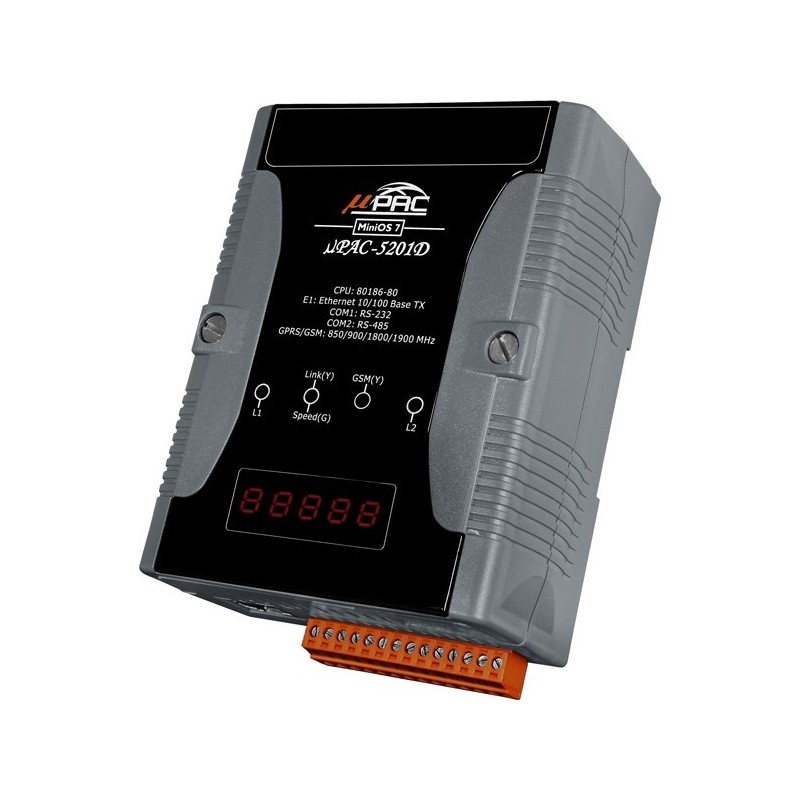

ICPDAS UPAC-5201D is an embedded PC with Minios7, GSM / SD reader, data logging
Embedded PC with MiniOS7, with 80186, 80MHz CPU, 2G GSM GPRS with SD card, data logging

Embedded PC LAN and 2G (GPRS) incl. Minios7
80186, 80 MHz CPU
1 x 10/100 Base-TX Ethernet
1 x RS-232
1 x RS-485
512 KB Flash / 16 KB EEPROM / microSD / 256 MB Nand Flash Disk
64 bit
for DIN rail Mounting
Supply 12-48VDC, 2.5W
Operating temperature: -25 to + 75 °

1,271.00 kr
Item Number: M485-PC-ETH-G-I
Physically in stock
ADD TO CART
Quick view
ICPDAS X103 Expansion module with digital inputs
7 digital isolated inputs: 3.5 - 30 V, for the embedded PC - M485-PC-I

Spare part

7 digital isolated inputs
3.5 - 30 V
expansion modules for M485A-PC-I

322.00 kr
Item Number: M485A-DI7ISO
Physically in stock
ADD TO CART
Quick view
ICPDAS X107 is an ADD ON pcb for M485-PC ETH. Digital I / O module
M485 Digital Expansion Module for the Embedded Mini PC M485 PC ETH + FX

Add-on module for M485-PC-ETH + FX PCEN
6 x digital inputs 3.5 - 30V
7 x digital outputs Open Collector - 30V / 100mA per port

380.00 kr
Item Number: M485-DI7DO6
Physically in stock
ADD TO CART
Quick view

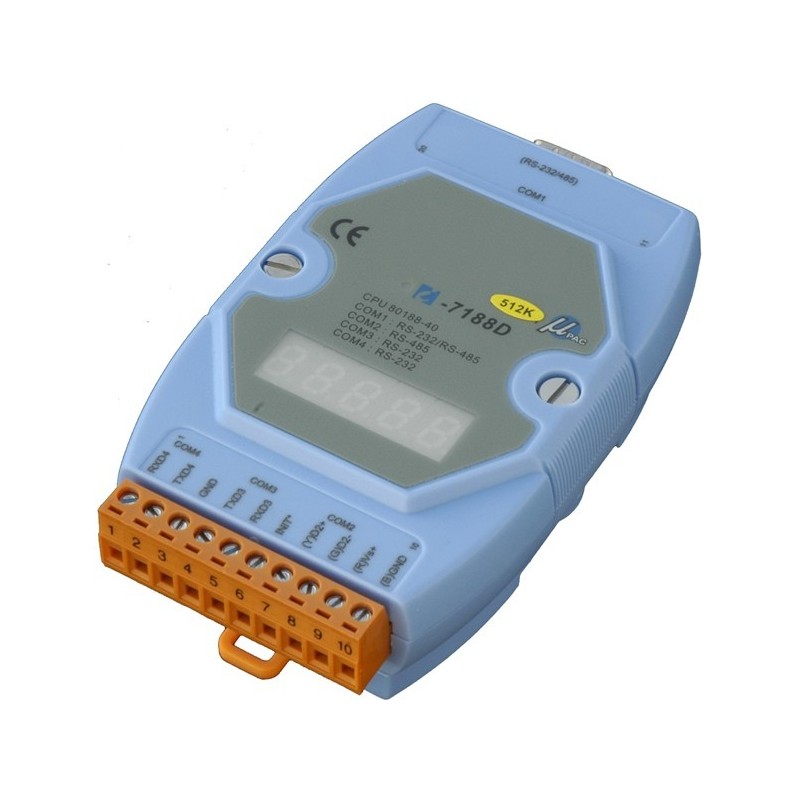

ICPDAS I-7188D/DOS/512 is a mini PC PAC with 80188-40 CPU, ROM-DOS, 256KB SRAM, RS232 / RS485 ports
