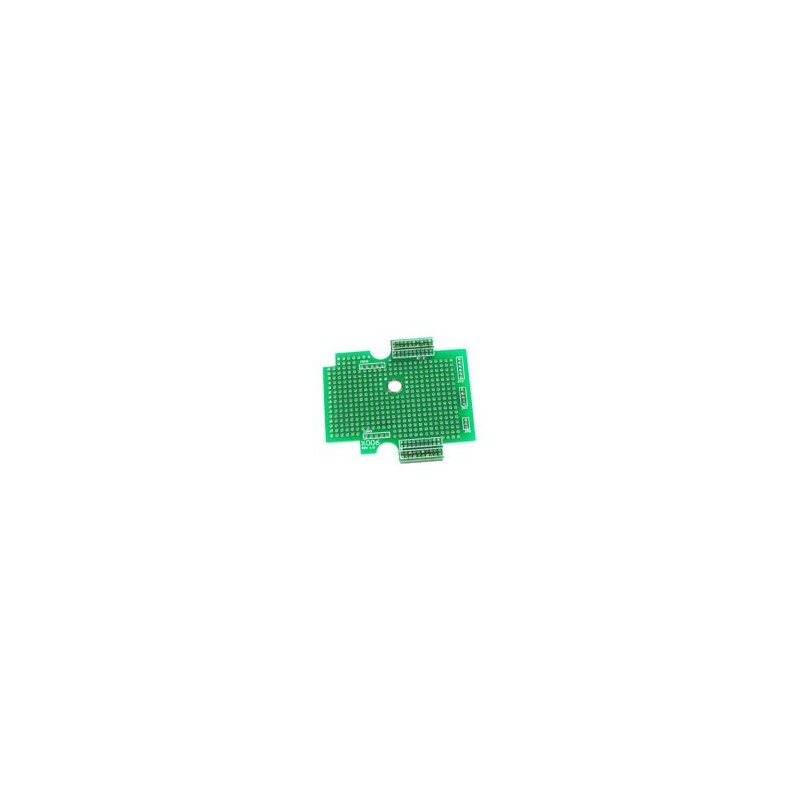

Prototype Map (64 x 70 mm) Expansion module for M485A PC-I
RS485 module with 2-channel strain gauge gauge
high resolution: 16-bit
excitation voltage range: 0 ~ +10 V.
50 Hz Event counter (digital input)
high / low alarm (Digital Output)
Linear Map Function
3000 VDC Intra Module Isolation
Double Watchdog
Temperature Area: -25 to + 75 ° C
Supply Voltage: 10 - 30vdc
Dim: 123 x 76 x 35 mm
RS485 Module for load cells
2 analog inputs for 4 wire load cell,
1 excitation Exit
1 Digital input
4 digital outputs
Supply: 10 - 30VDC
RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C
1 A/D indgang til vejecelle,
1 D/A udgang
4 digitale udgange
