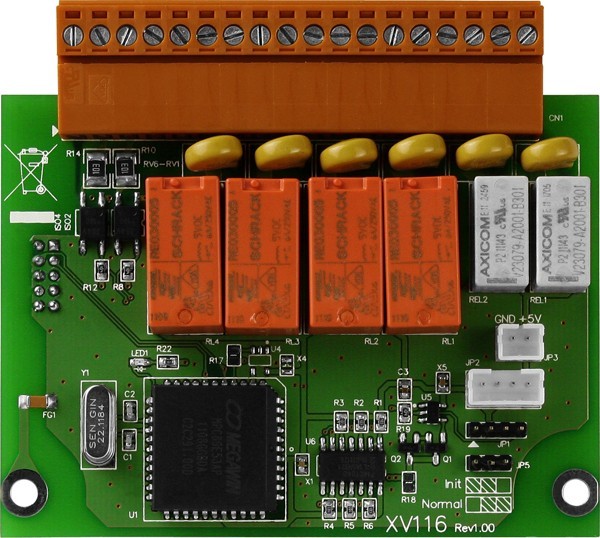

Extension module for L-CON-LOG-x series. 6 relay outputs (normally open, COM N.O.) 5 Digital inputs.
Built-in module with screw terminals
5 x digital inputs, Wet Sink / source. 0 - + 50VDC
All inputs are with 32bit counter
2 x relay outputs 30VDC / 2A to 4 x 35 VDC relay outputs 6A, 6A
Relays 250VAC is non-inductive load
1,462.00 kr
Excl. VAT
Quantity
Physically in stock
Product number L-CON-LOG-D5I6R+
Specifications
Indgang | 5 stk. logisk 0: maks. 1 volt og logisk 1: +3.5 ~ +50 VDC |
---|---|
Udgange | 4 stk relæer AC 250V / 6A samt 2 stk.AC 250 V/0,25A relæer |
supply 5 channels to the digital input, and 6 form the A-relay channels. In addition, either digital or digital input source type is selected via the wire connections. All input channels can be used as 32-bit counters. Also provides options for configuring the digital output value. 4 kV ESD protection and 3750 VDC intra-module isolation is also available to improve noise immunity functions in industrial environments.
Andre produkter i samme kategori:
Temperature and moisture meter for L-CON-LOG series. RS485 bus. -20 - + 60 ° C, 0 to 100% RH, IP66, 10 - 30VDC
Measures: -20 ~ + 60 ° C and 0 ~ 100% RH
Accuracy: ± 0.4 ° C; ± 3.0% RH
LCD display shows the temperature, humidity, dewpoint and
module ID
10 ~ 30 VDC power input
IP66 Waterproof
Data Logger
Memory for temperature and 4,088 humidity records
RS-485 communication interface
DCON or Modbus RTU
1,194.00 kr
Item Number: L-CON-LOG-TH
4 differentielle eller 8 single-ended analog indgange Udvidelsesmoduler til L-CON-LOG serien
Insert module for L-Con log series
4 x differential analog inputs 4 - 20mA
or 8 single-ended analog inputs 4 - 20mA
Resolution: 12bit
Sample Rate: 4khz
2 x Analog Output 4 - 20mA
Resolution: 12bit
3 x Digital Input (DRY) - Contact to GND
3 x Digital Outout (Open Collector) + 40VDC / 200mA per port
Dim: 82 x 66 x 13 mm
with screw terminal block
1,450.00 kr
Item Number: L-CON-LOG-AD16C
Expansion module for L-CON-LOG series. 4 x Analog inputs, 2 x Analog Output, Digital input 4 x, 4 x Digital output
Multifunction concealed board
with 4 x AI, AO x 2, 4 x DI, 4 XDO
individual channel configuration
Jumper selectable voltage- or current input
Broken kabeldetektion by current measurement
Configurable settings for the initial value
digital input channels can be used as 32-bit counters
120 VDC surge protection to the analog input
60 VDC surge protection for digital input
Overload protection for digital output
Short circuit protection for digital output
1,650.00 kr
Item Number: L-CON-LOG-AD16C+
Expansion module for L-CON-LOG-x series. 8 digital inputs, Wet, 0 - + 50VDC, 8 x Digital outputs (OC) + 50VDC 700mA
The integration module with screw terminal
8 x digital inputs 0 - + 50VDC
All inputs with 32 bit counter (50 Hz)
8 x digital outputs, the Open Collector + 50VDC 700mA / channel
948.00 kr
Item Number: L-CON-LOG-D8I+
