8 af de digitale udgange kan trække op til 500mA pr. kanal
Kort ID, så 4 kort kan installeres i samme system
Terminal card with screw terminals
DB37 male / female cable of 1.8m included
For DIN rail mounting
103 x 85 x 50 mm (W x L)
Support a 32-bit 3.3 V or 5 V PCI bus
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
PCI kort med 8 relæer og 8 optoisolerede indgange
8-CH high power relay outputs (5A @ 250VAC or 30VDC)
8-CH isolated digital inputs with AC-filter
1-CH emergency shutdown input
Pluggable connector for high current input
Supports universal 32-bit 3.3V and 5V PCI bus
Initial state and safety state setting by DIP switches
Built-in watchdog timer
Supports a 32-bit 5 V PCI bus
64-CH isolated digital inputs
2500 VRMS optical isolation
Sink current up to 500 mA on each isolated output

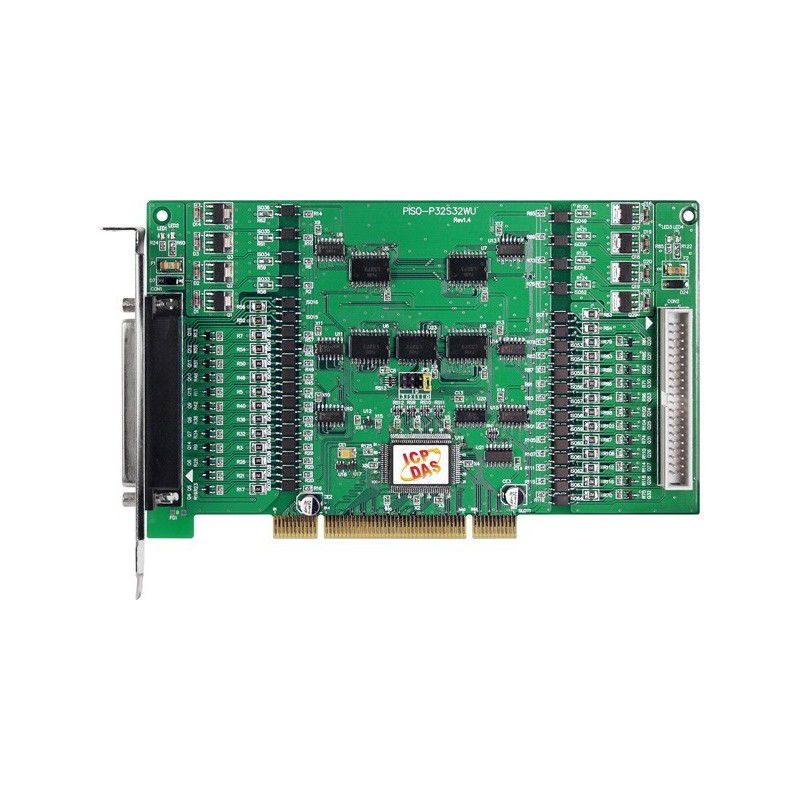

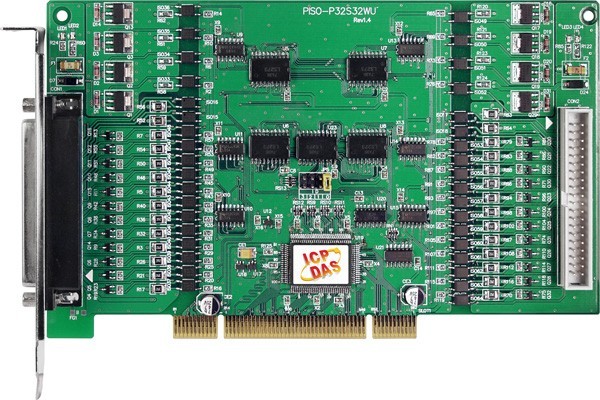

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
