Wide SCSI LVD cable, 1.5 meters Mini DB68 male – Mini DB68 male
LVD Wide SCSI cable with 2 x mini DB68 male connectors

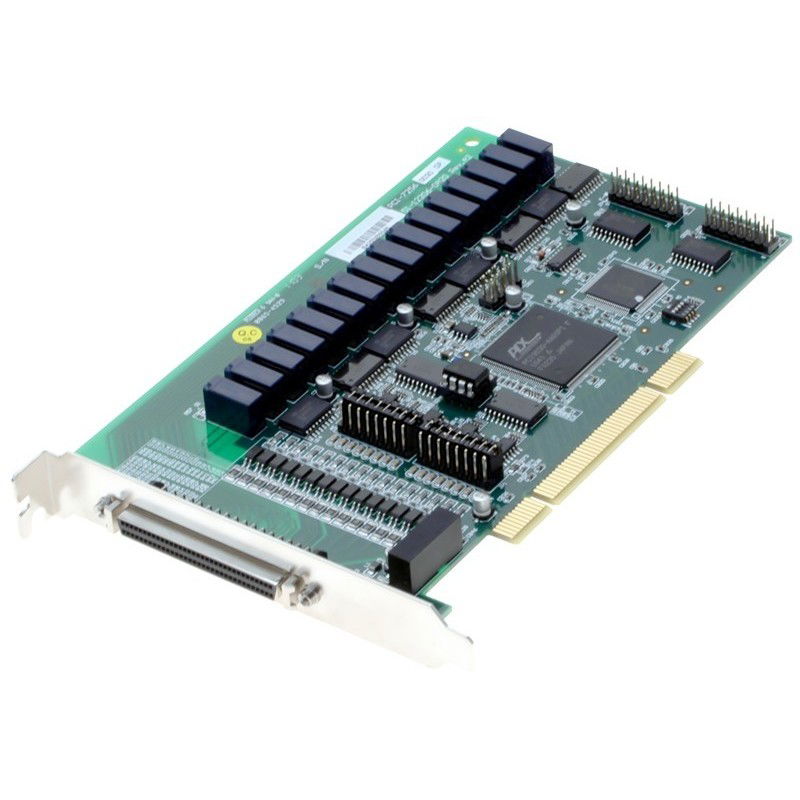

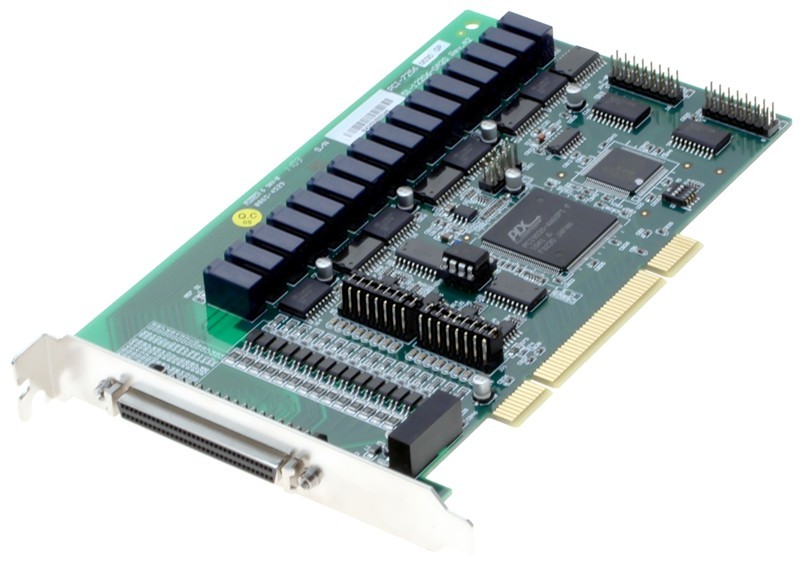

Relæerne holder deres stilling, selv om strømmen til kortet afbrydes
Supports a 32-bit 3.3 V or 5 V PCI bus
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchanged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Change-of-status (COS) interrupt
Board ID
Mulighed for at aflæse relæernes status via softwaren
LVD Wide SCSI cable with 2 x mini DB68 male connectors
Adlink DIN-68S-01
Terminal Boards
On-board Connector
68-pin SCSI-II female
103 x 85 x 46.2 mm (W x L x H)
8 af de digitale udgange kan trække op til 500mA pr. kanal
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
With condition detector on all 32 inputs
optoisulated inputs - 2.5kv - Common frame
logic: Low 0-3,2vdc, High: 3.5 - 24VDC
