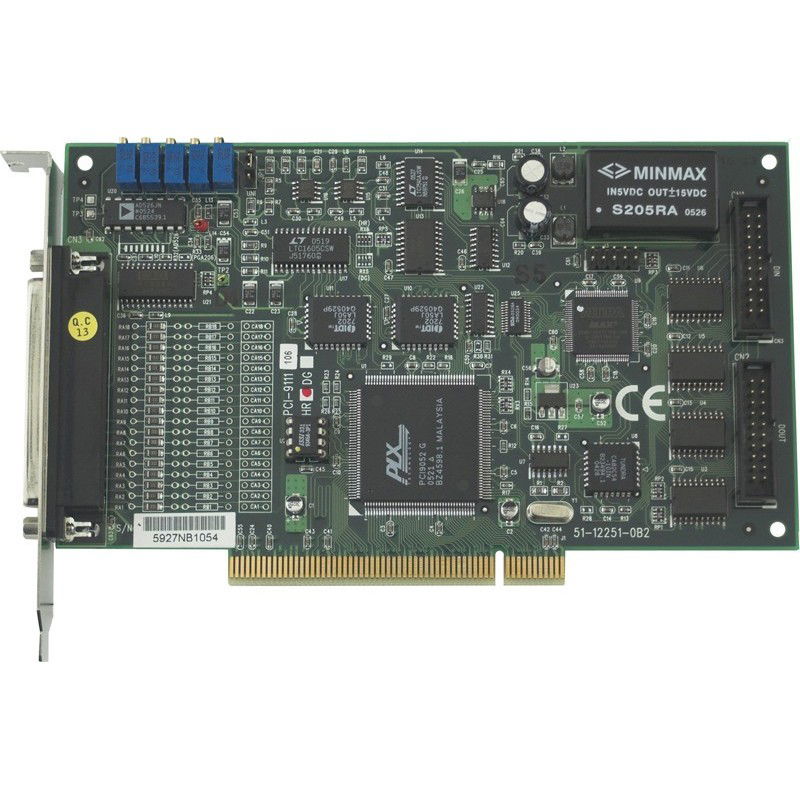

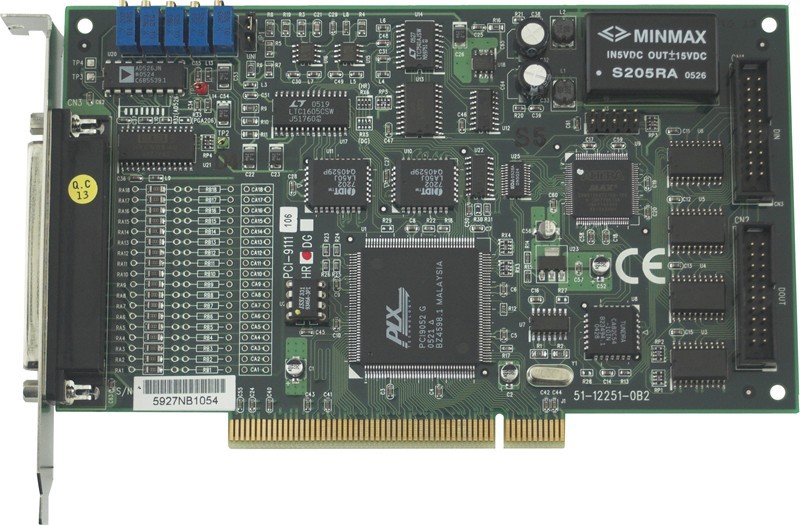

Adlink PCI-9111HR. 16 kanalers A/D dataopsamling, 16 bit, 100 kHz, PCI

Supporterer 32-bit 5 V PCI bus
16-bit A/D resolution (PCI-9111DG)
16-CH single-ended analog inputs
Op til 100 kS/s sampling rate
On-board 1 k-sample A/D FIFO
Programmerbar forstærkning på x1, x2, x4, x8, x16
Bipolar analog input-område

AD16S16PCI-LC
DKK5,997.00
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

100KHz 16 bit A / D data acquisition.

And voltage outputs and 16 TTL I / O up to 100 kHz / channel PCI card.

All inputs are equipped with an input circuit, for example. can be mounted low-pass filter, voltage divider or shuntmodstande (for current measurement).

Input Adjustment:

Upon delivery, only the input resistor R1 to 0 Ω assembled and places to R2 and C are free.

Stik
DB37 hunstik til analoge ind- og udgange samt til programmerbare digital I/O. 2x20 ben IDC stik til 16 digitale ind- og udgange
Digital I/O
16 TTL ind- og 16 TTL udgange samt ekstra 4bit programmerbare I/O
Tæller
Type 8254 - kan bruges som Timer, Pacer trigger og Pre-trigger tæller
