Adlink DIN-68S-01. Terminal board with 68 screw terminals
Adlink DIN-68S-01
Terminal Boards
On-board Connector
68-pin SCSI-II female
103 x 85 x 46.2 mm (W x L x H)
Supporterer 3.3 V eller 5 V PCI bus
12-bit A/D og sampling rate op til 110kS/s
16-CH single-ended or 8-CH differential inputs
On-board A/D FIFO
Bipolar eller unipolar analog input område
16-CH TTL DI og 16-CH TTL DO
2-CH 12-bit multiplying analog outputs

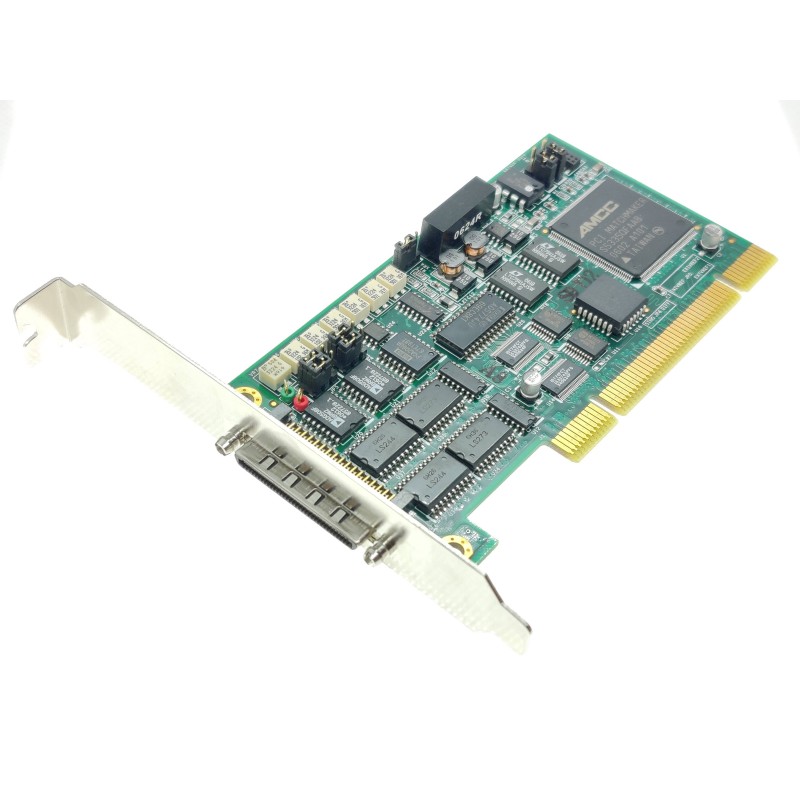

100KHz 12 bit A / D data acquisition.
And voltage outputs and 16 TTL I / O up to 100 kHz / channel PCI card.
All inputs are equipped with an input circuit, for example. can be mounted low-pass filter, voltage divider or shuntmodstande (for current measurement).
Input Adjustment:
Upon delivery, only the input resistor R1 to 0 Ω assembled and places to R2 and C are free.
Cover profile version 3.3 and 5 volt PCI slot.
12 bit ver. low-profile PCI.
Adlink DIN-68S-01
Terminal Boards
On-board Connector
68-pin SCSI-II female
103 x 85 x 46.2 mm (W x L x H)
Supporterer 32-bit 5 V PCI bus
16-bit A/D resolution (PCI-9111DG)
16-CH single-ended analog inputs
Op til 100 kS/s sampling rate
On-board 1 k-sample A/D FIFO
Programmerbar forstærkning på x1, x2, x4, x8, x16
Bipolar analog input-område
Supporterer 32-bit 5 V PCI bus
12-bit A/D resolution (PCI-9111DG)
16-CH single-ended analog inputs
Op til 100 kS/s sampling rate
On-board 1 k-sample A/D FIFO
Programmerbar forstærkning på x1, x2, x4, x8, x16
Bipolar analog input-område

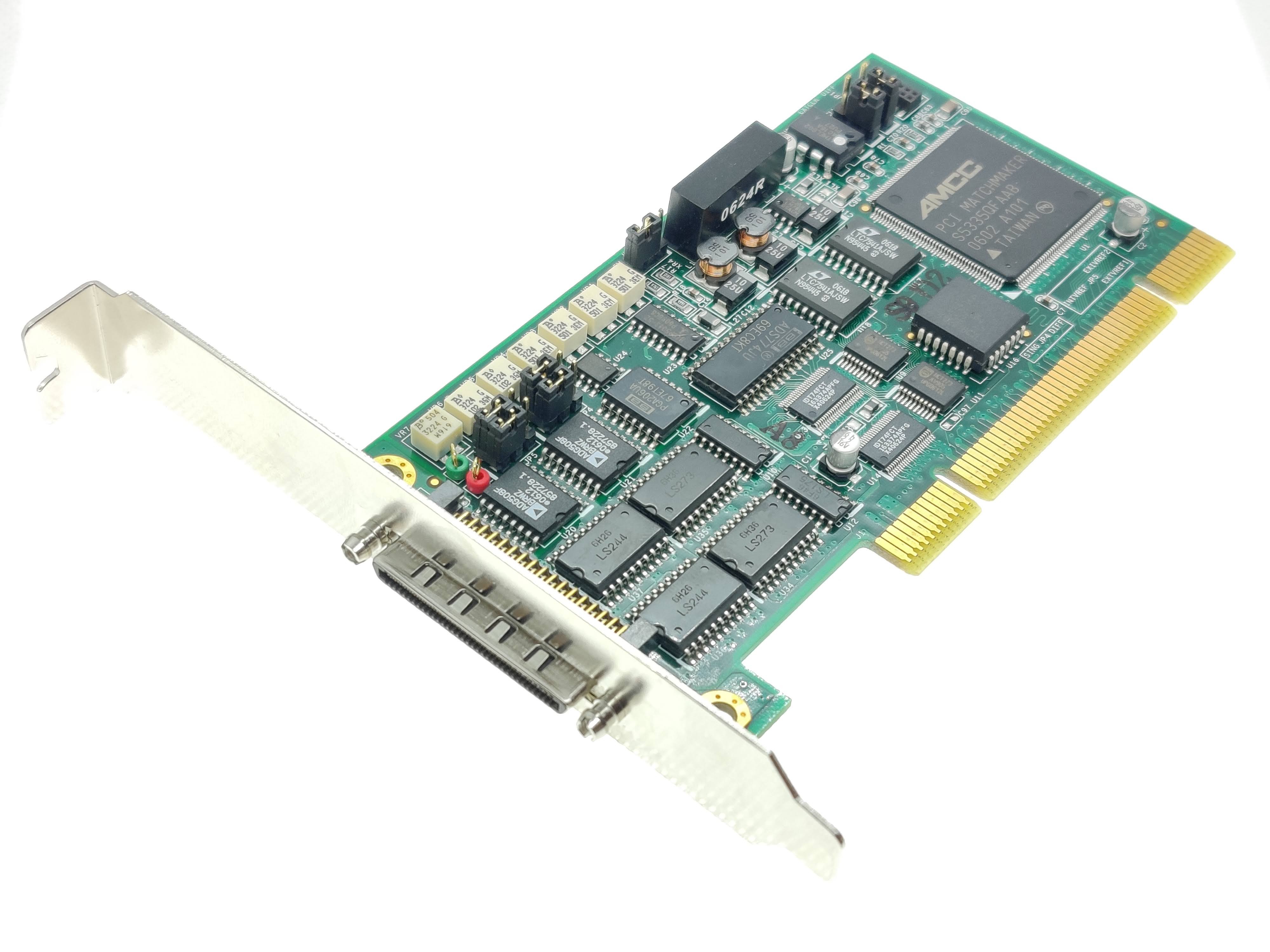

12 bit A / D card with programmable gain
16 "single-ended" or 8 differential
45Khz for sharing between active channels (Conversion time: 8 μs)
D / A output: 1 output with 12 bit resolution
Area: 0-5 V and 0-10 V; linearity: ½ bit; stabilization time: 0.6 μs
Didital I / O: 16 TTL input and 16 TTL outputs
12 bit ver. incl. drivers for DOS and Win.
Connectors: DB37 female connector for analogue inputs and outputs
2 x 20 pin IDC connectors for 16 digital inputs and outputs and counters
