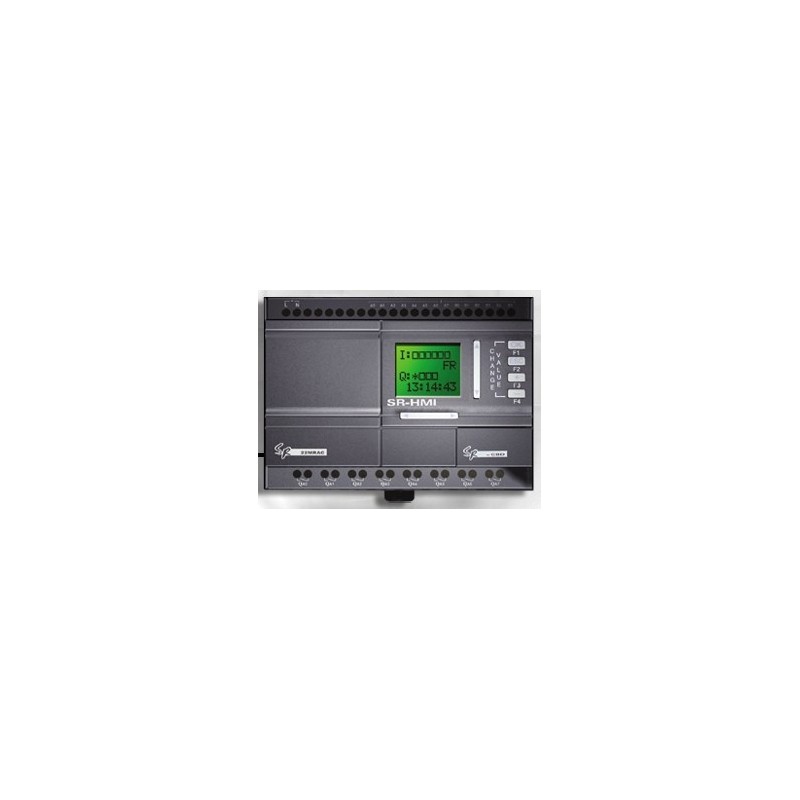

Mini plc to 12 - 24VDC
6 x digital inputs
8 x analog inputs
8 x relay exits
DC 12-24V
With extension modules for up to 122 I / O ports
user keys to change values in eg. Dosage tables
Detachable LCD-display for PLC for showing status
For automatic announcment over telephone linie. Can handle preprogrammed messages
Expansion module for PLC
12 pcs. Digital DC inputs
8 transistor outputs
DC 12-24V
Expansion module for PLC with 12 pcs. Digital DC inputs and 8 relay exits
DC 12-24V
Detachable LCD-display for PLC for showing status
HMI control with 4.3 "TFT Touch
IP40
interface: 2 x RS485
USB port for download
RTC - Real Time Clock
Free HmiWorks Development software
Supply voltage: 12 - 48VDC
Temperature: -30 - + 50 ° C
Goal: 140 x 87 x 41 mm
Less-Surface-Exposed Housing Design Design
HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm
Til mindre styringsopgaver, med TFT display og touch
