Cable for programming the PLC
Cable for programming the PLC from a PC

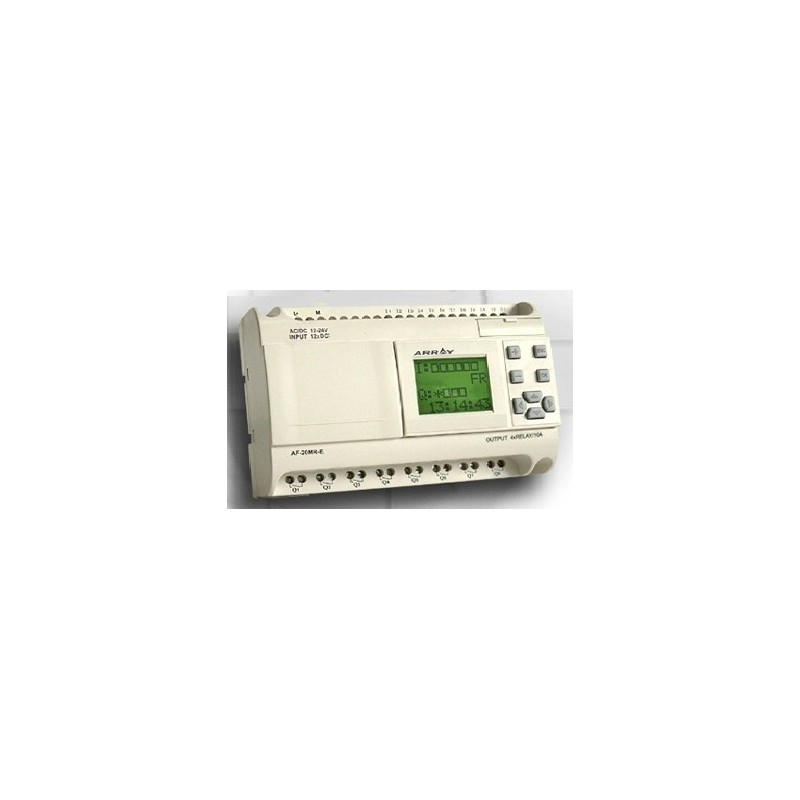

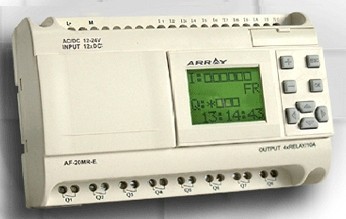

Mini PLC for AC 110-240AC
12 x analog inputs
8 x relay outputs
Remote control capability via a modem and telephone calls from the noise
Several PLC diet communicate with each other via an RS485 network
Cable for programming the PLC from a PC
Cable for connection between PLC and modem
Network cable for connection between PLCs
Expansion module for PLC with 12 pcs. Digital AC inputs and 8 relay outputs. AC 110-260V
HMI control with 4.3 "TFT Touch
IP40
interface: 2 x RS485
USB port for download
RTC - Real Time Clock
Free HmiWorks Development software
Supply voltage: 12 - 48VDC
Temperature: -30 - + 50 ° C
Goal: 140 x 87 x 41 mm
Less-Surface-Exposed Housing Design Design
HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm
6 pcs. DC / analog inputs, 4 transistor outputs, DC 12-24V
