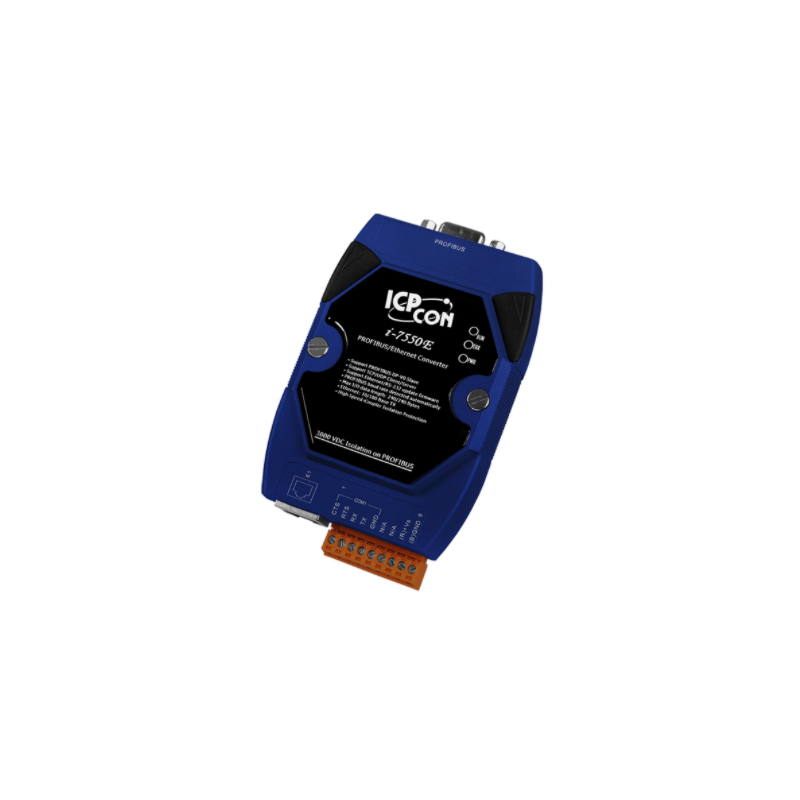

Profibus DP Master for Ethernet Slave Devices Gateway. DIN

Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed ​​(Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration

M485-PROFI-ETH-I
4,672.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

M485-PROFI-ETH-I er specielt designet til slaveenhed i PROFIBUS-DP -protokollen. Det giver PROFIBUS-masteren for at få adgang alle former for Ethernet enheder, der understøtter TCP / UDP-protokollen . M485-PROFI-ETH-I kan indstilles som TCP / UDP server og klient , det er fleksible for brugeren at matche deres krav. Hertil kommer, at I- 7550E -modul indbygget webserver , kan brugeren indstille modulet ved webbrowser . Ved at bruge dette modul , kan brugerne lægge deres Ethernet-enheder i PROFIBUS-nettet meget let.

Controller
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Dimensioner
72mm x 33mm x 119mm (W x L x H)
Driftstemperatur
-25 ~ 75 ℃
Forsyning
Unregulated +10 ~ +30 VDC Protection Power reverse polarity protection, Over-voltage brown-out protection Power Consumption 2.5 W
Interface
RS-232 (For updating firmware) COM Connector 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND )
Isolation
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
LED
PWR LED, RUN LED, ERR LED
Luftfugtighed
5 ~ 95% RH, non-condensing
Montering
DIN rail
Stik
RJ-45 with LED indicator
