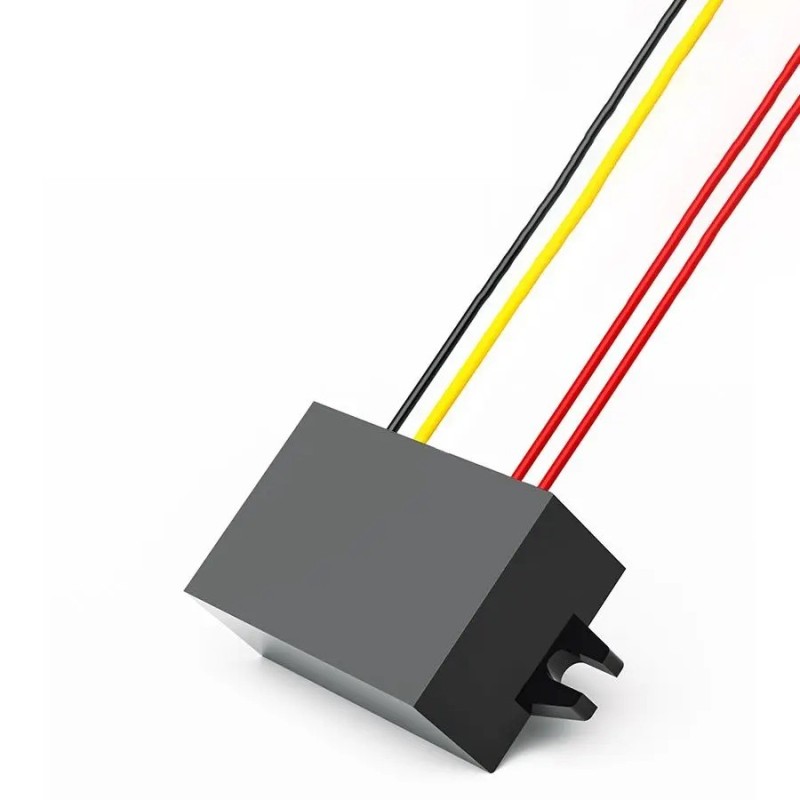

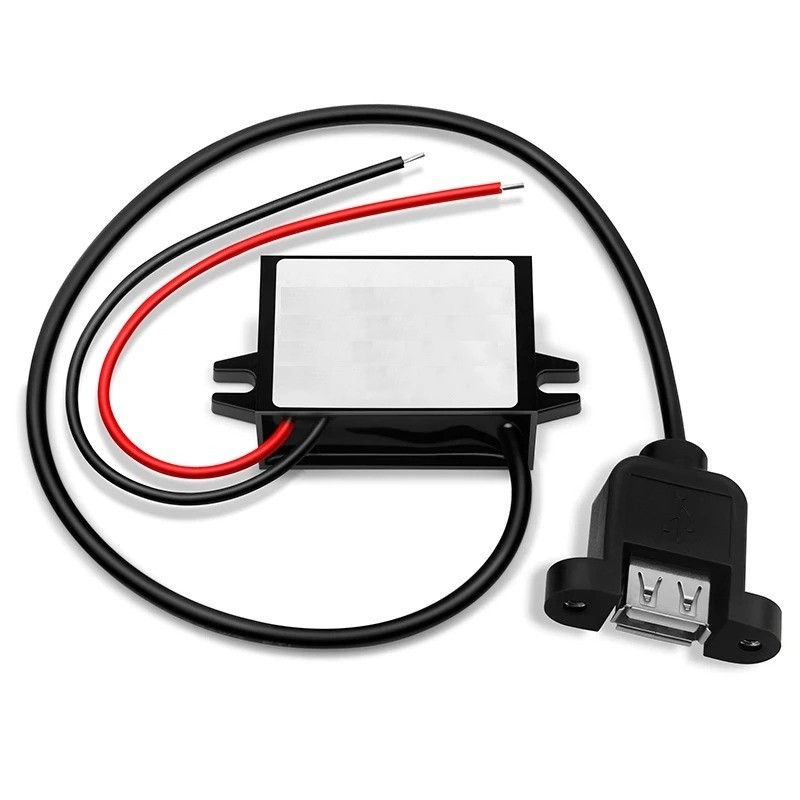

DC–DC Step-Down Converter 8–85 V to 5V – 3A, 15W MAX USB Power Module
DC–DC step-down converter for 8–85V DC input
Stable 5V DC USB output, up to 3 A (15 W)
High efficiency >93%, low ripple 40 mV
Wide operating temperature -30°C to +80°C
IP67 Water resistance
Compact ABS housing with 13–14 cm cable
266.00 kr
Excl. VAT
Quantity
On the way in
close
Specifications
| Operating Temp. | –30 °C to +80 °C |
|---|---|
| Isolation | Non-isolated |
| Kabel | 13–14 cm |
| Strømforsyning | 8–85 VDC |
| Strømstyrke | 15W, Conversion Efficiency: >93% |
| USB-output | 5 V DC (USB) 3A MAX |
| Dimensioner | 46 × 32 × 18 mm |
This miniature DC–DC step-down power converter is designed for reliable voltage regulation in automotive, industrial, and embedded electronics.
It accepts a wide 8–85 V DC input range (compatible with 12 V, 24 V, 36 V, 48 V, 60 V, and 72 V systems) and delivers a stable 5 V DC output with up to 3 A continuous load (15 W).
The module features high conversion efficiency (>93%), low ripple (40 mV at full load), and a low no-load current (25 mA), making it well-suited for battery-powered systems. Built in an ABS plastic housing, it is lightweight yet durable, with a 13–14 cm cable for flexible installation.
It operates across a wide temperature range from –40 °C to +80 °C, making it suitable for harsh environments. Common applications include USB charging for devices in cars, trucks, solar systems, industrial controls, and off-grid setups.
