Temperature and humidity sensor with 1-wire interface for Teracom

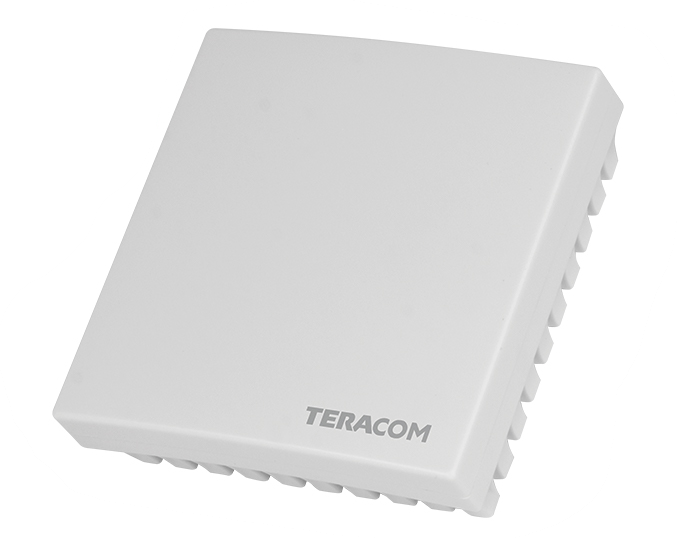

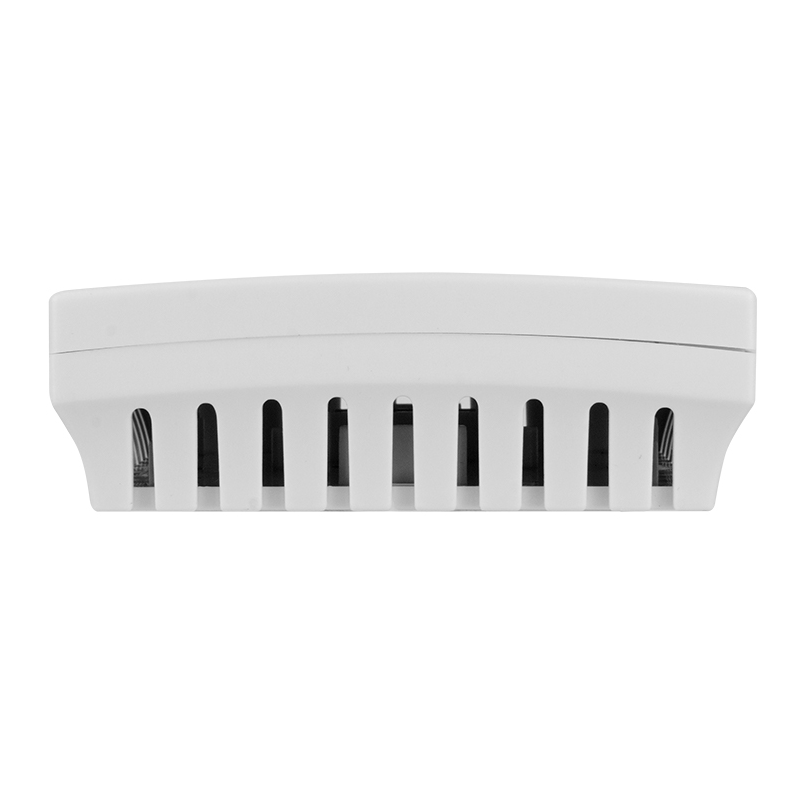

Temperature and humidity sensor
1-wire interface for Teracom controller
Temperature: +/-0.4 °C (-10 to +60 °C), max. +/-0.6°C
Resolution: 0.1°C
Humidity: +/-3.0% RH (20 - 80% RH), max. +/-5% relative humidity
Solution: 0.1% RH
Supply voltage: 4.5 - 26VDC
LED indicator for communication status
Long-term stability based on digital signal processing
Changeable bit rate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g

TSM400-1-TH
1,023.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The TSM400-1-TH is a humidity and temperature sensor that supports the MODBUS RTU protocol over the RS-485 interface. A unique capacitive element is used to measure relative humidity, while temperature is measured by a bandgap sensor. Both sensors are seamlessly connected to a 12-bit analog to digital converter. This results in superior signal quality. The TSM400-1-TH multisensor is housed in a slim plastic housing. The lower part of the cabinet is suitable for mounting on standard ø68mm built-in/cavity wall boxes, with installation openings of 61 mm.
