1-Wire Temperature / humidity sensor for Teracom. -20 - +60°C 10 - 90%rH. 12/14 bit A/D. 1 meter cable

1-wire Temperature / Humidity sensor
Temperature -20 - +60°C
Humidity 10 - 90% RH
Temp tolerance +/-0.4°C at -10 - +60°C
Moisture tolerance ±3.0%rH at 20 - 80%rH
Long term operation ±0.25%/year at 20 to 80%rH
Long-term operation ±0.05°C/year at -10 to +60°C
Solution 0.1 %rH 0.1 °C
Power supply/consumption 4.0 to 5.5 VDC 5 mA
Dimensions 62 x 28 x 16 mm
Cable length 1 m

TSH202B
638.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

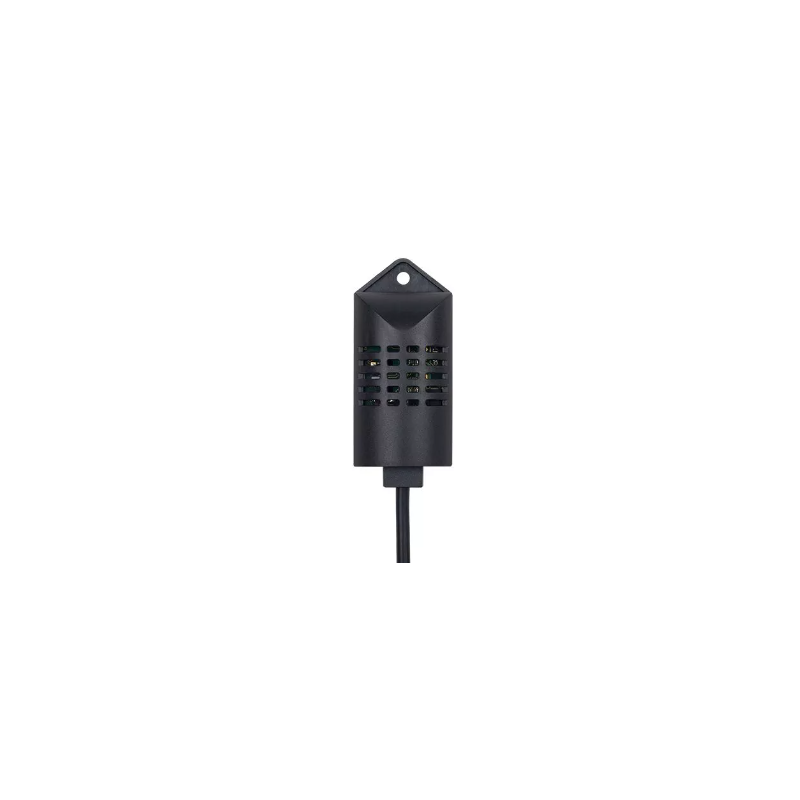

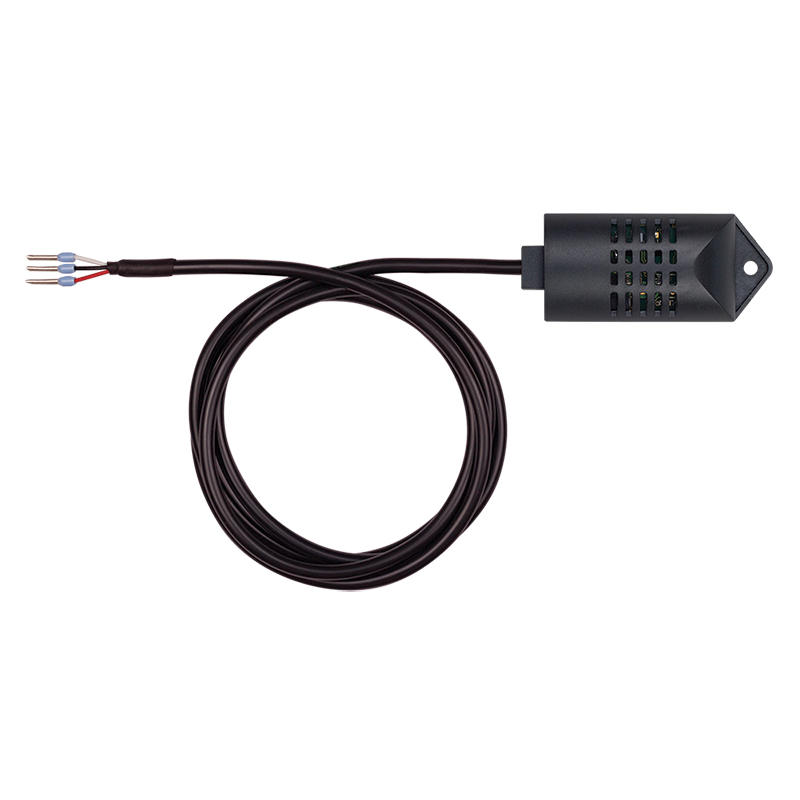

The TSH202B is a compact humidity and temperature sensor that offers reliable and accurate data collection.
It integrates a unique capacitive element for moisture sensing and a bandgap sensor for temperature measurement, both seamlessly coupled to a 12-bit analog-to-digital converter for superior signal quality and fast response time.

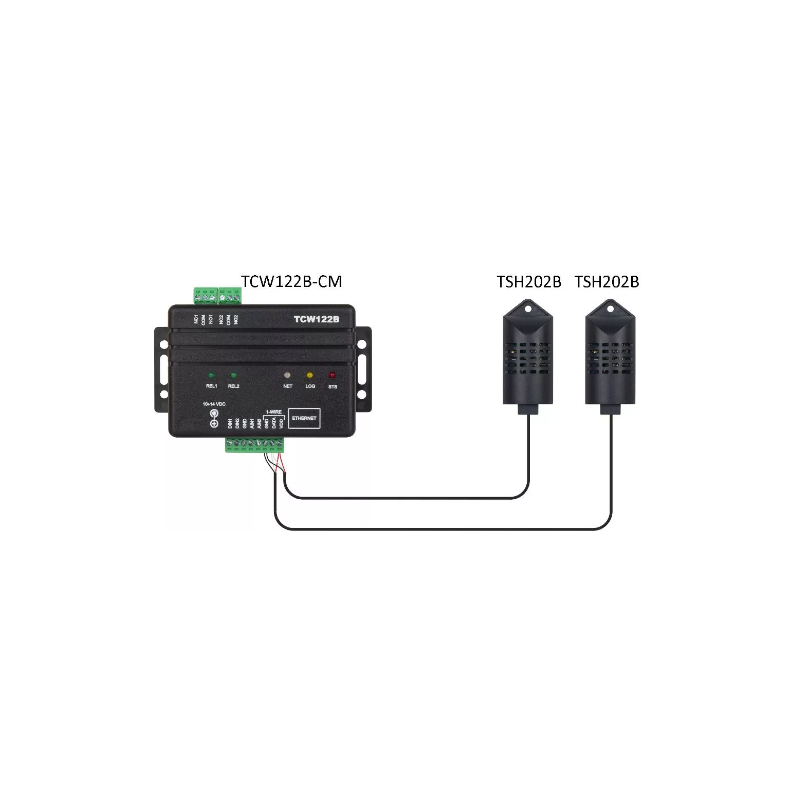

With its 1-wire bus communication protocol and unique 64-bit serial code, the TSH202B allows for easy connection of multiple sensors for simultaneous humidity and temperature monitoring.
Its compact design makes it ideal for use in a variety of applications where space is limited, such as environmental monitoring systems, HVAC control and more.
Whether you need to monitor temperature and humidity in a single room or across multiple locations, the TSH202B provides a cost-effective and reliable solution to your data collection needs.
