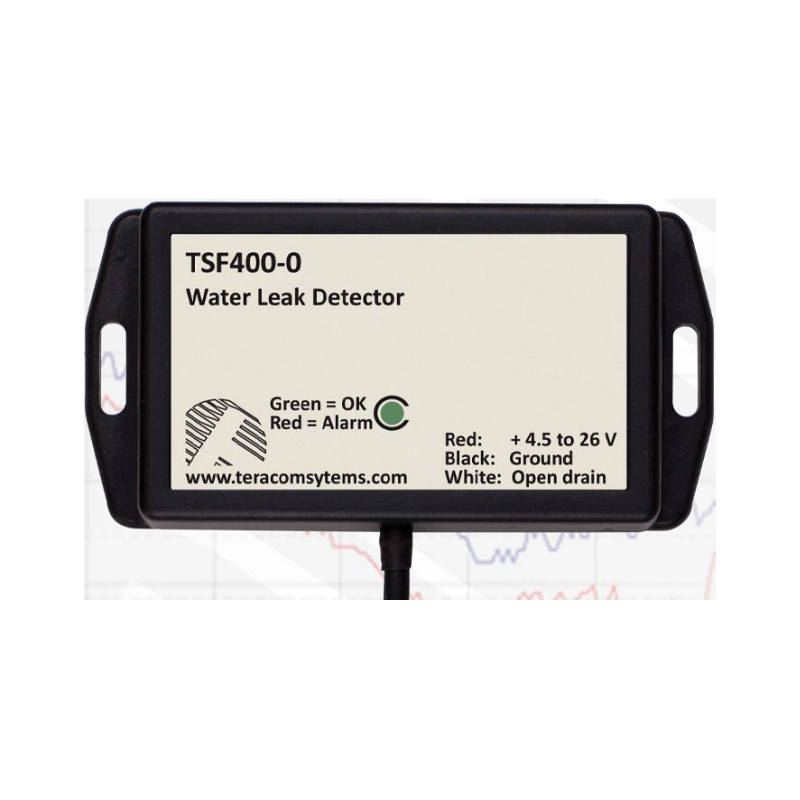

Leak detector with digital output. The unit is IP65 sealed. Sensor under the bottom. LED indicator

Water leak detector with digital output. The device is IP65 sealed. Sensor is under the bottom. LED indicator

Water leak detector

Water leak sensor with sensor on the underside

Output: Open Collector.30V/100mA

Active LOW.

2-color LED indicator

Supply voltage: 5 - 26VDC

Flange mounting

Dimensions: 88 x 46 x 17 mm

IP65 tight

Operating temperature: 0 to +50°C

424.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number TSF400-0
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

The TSF400-0 is a compact water leak detector designed for early detection of water on floors, trays or inside equipment cabinets. It operates from a wide 5-26 VDC supply and provides an NPN open-collector output for direct connection to PLCs, controllers, alarm modules or building automation.

automation systems.

Detection is based on the conductivity between the sensor electrodes. When water connects the electrodes, the output changes state, enabling fast and reliable alarming. The detector is fully electronic with no moving parts, ensuring high reliability and long service life.


Link to the manufacturer's web page: Water Leak Detector with Digital Output TSF400-0
