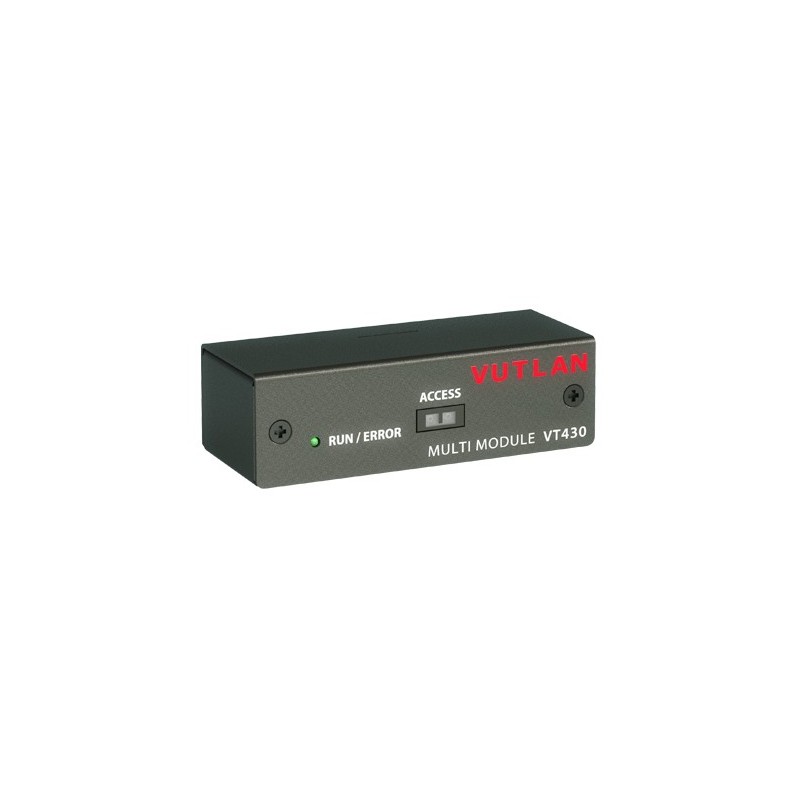

Rack Monitoring Unit for Temperature, Humidity, and PIR Sensors

Compact and efficient rack monitoring solution with essential environmental sensors

Type CAN digital sensor

Power Supply Over CAN bus

Humidity Accuracy ±3%

Temperature Range -10 to +85 °С

Temperature Accuracy ±1 °С

Optimal Temperature Range: -10° C to +80° C

IR Sensor Distance 1-4 cm

Weight 270 g

Dimensions 89 x 27.1 x 48.2 mm

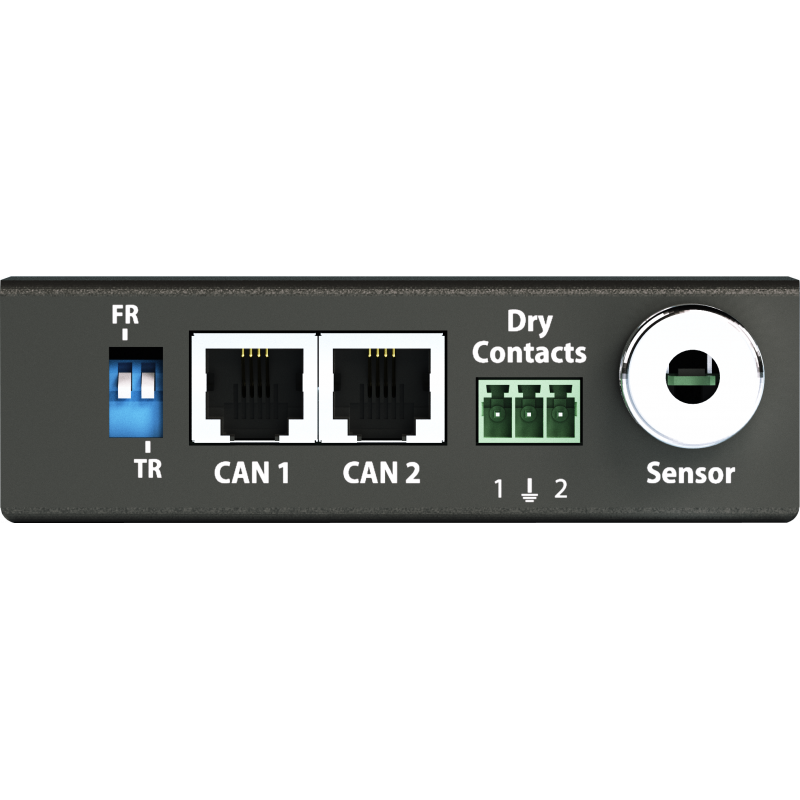

Inputs x2 dry contacts, x2 RJ-12 ports

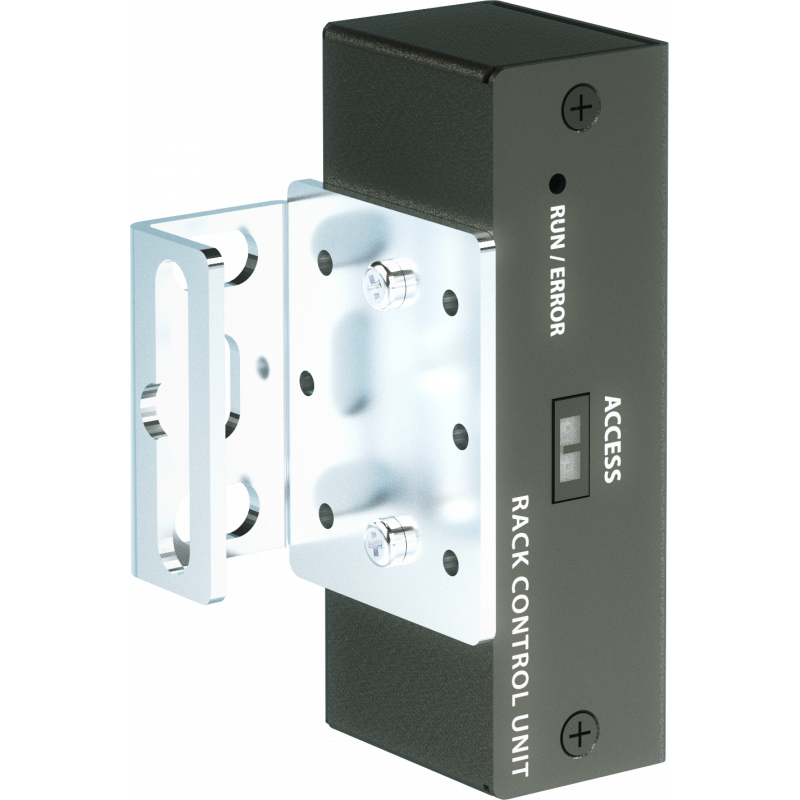

Package Includes Unit, mounting bracket, screws

VTL100041
1,780.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Advanced rack control unit with integrated sensors for temperature, humidity, and door control. Features two dry contacts and operates in a wide temperature range.
Dimensioner

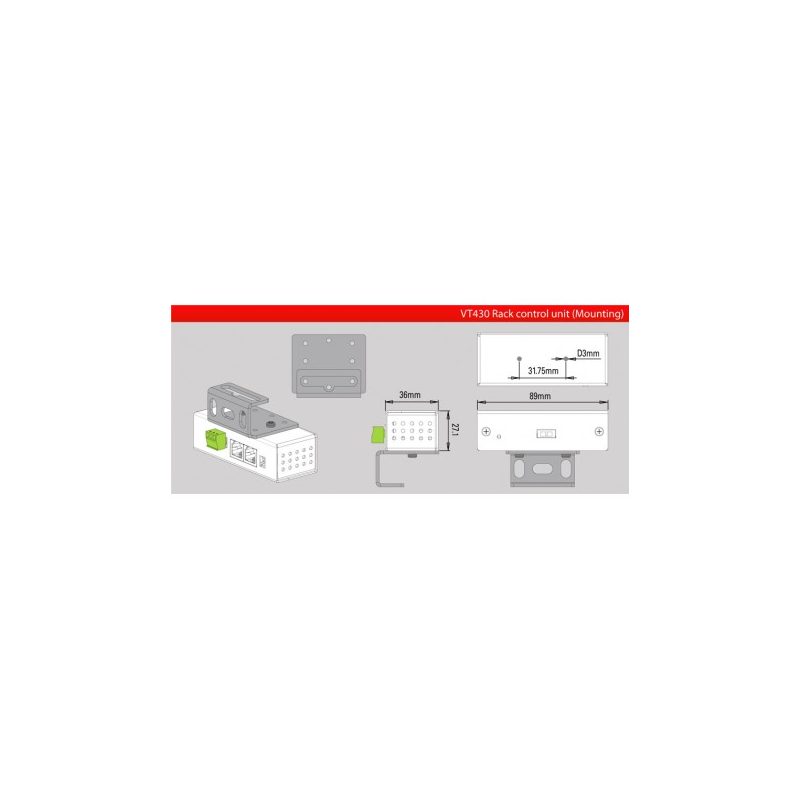

(Width, Height, Depth) 89 x 27.1 x 48.2 mm
Type
CAN digital sensor
Weight
270 g
Operating Temperature
-10° C to +80° C
