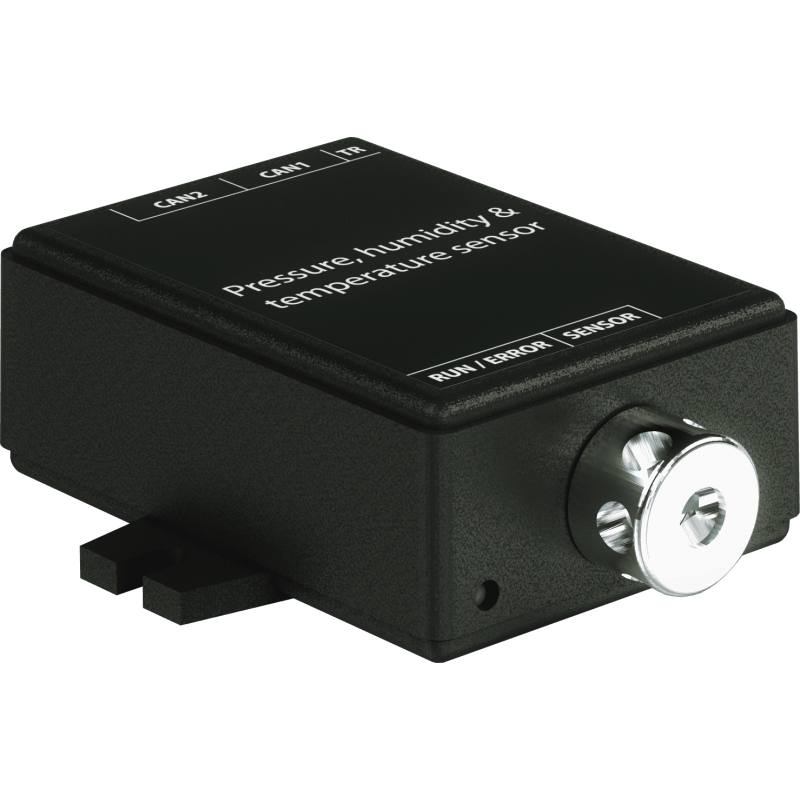

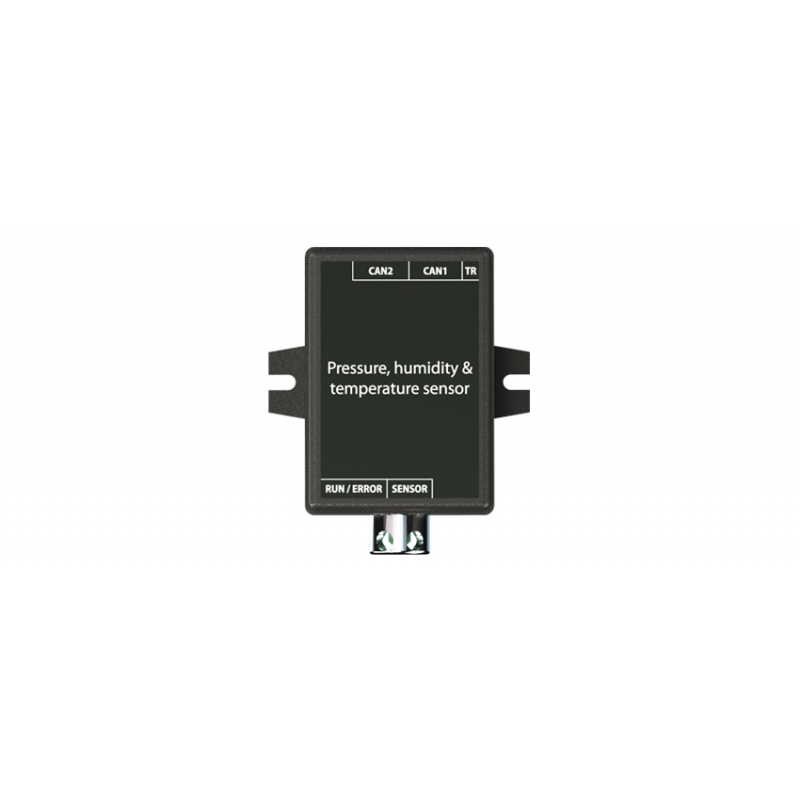

Pressure, Humidity and Temperature Sensor
Compact and efficient sensor for accurate pressure, humidity, and temperature readings
Sensor Type CAN digital
Pressure RMS Noise 0.2Pa (1.7cm equivalent)
Pressure Error ±0.25% (1m at 400m height change)
Pressure from °C: ±1.5Pa/K (±12.6cm at 1°C change)
RH Accuracy ±3% RH (max)
Hysteresis ≤2% RH
Temperature Accuracy ±1.5°C
Pressure Range 300 to 1100 hPa
Operating Temperature -40 to +85 °С
Power 12V DC 1A, 1 Watt
Dimensions 68x47x26 mm
Weight 160 g
Mounting Options Desktop, Wall mount
149.18 €
Excl. VAT
Quantity
On the way in
Product number VTL100043
Specifications
Dimensioner | 68x47x26 mm |
---|---|
Driftstemperatur | −40 to +85 °С |
Type | CAN digital sensor |
Weight | 160 g |
Range | Pressure 300 to 1100 hPa |
Power Supply | 12V DC, 1A, 1 Watt |

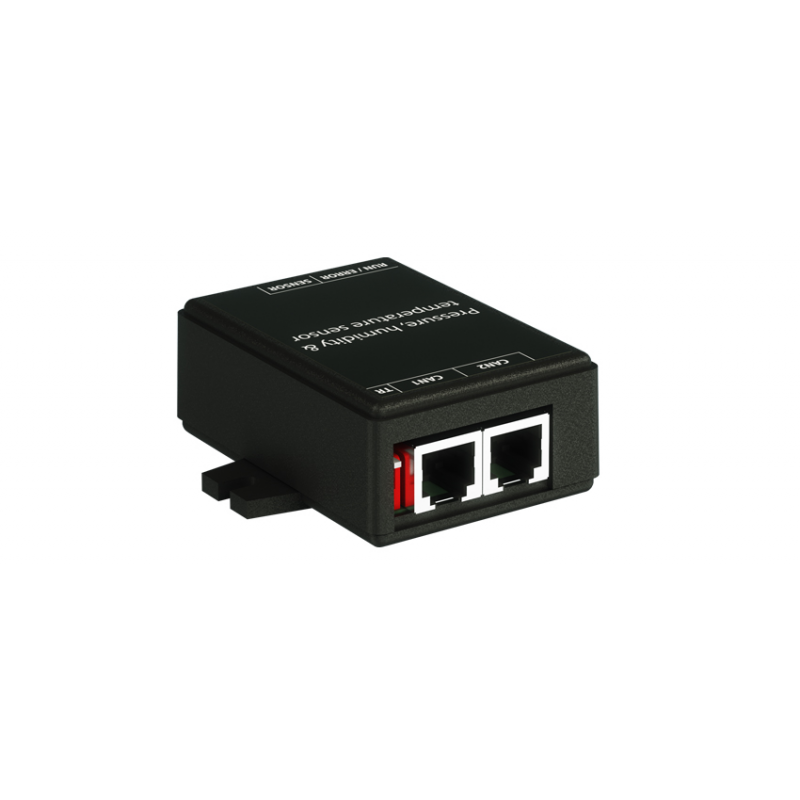

Inputs/Outputs | x2 RJ11 6P4C ports |
High-quality digital sensor for measuring pressure, humidity, and temperature. Ideal for a wide range of monitoring applications.
