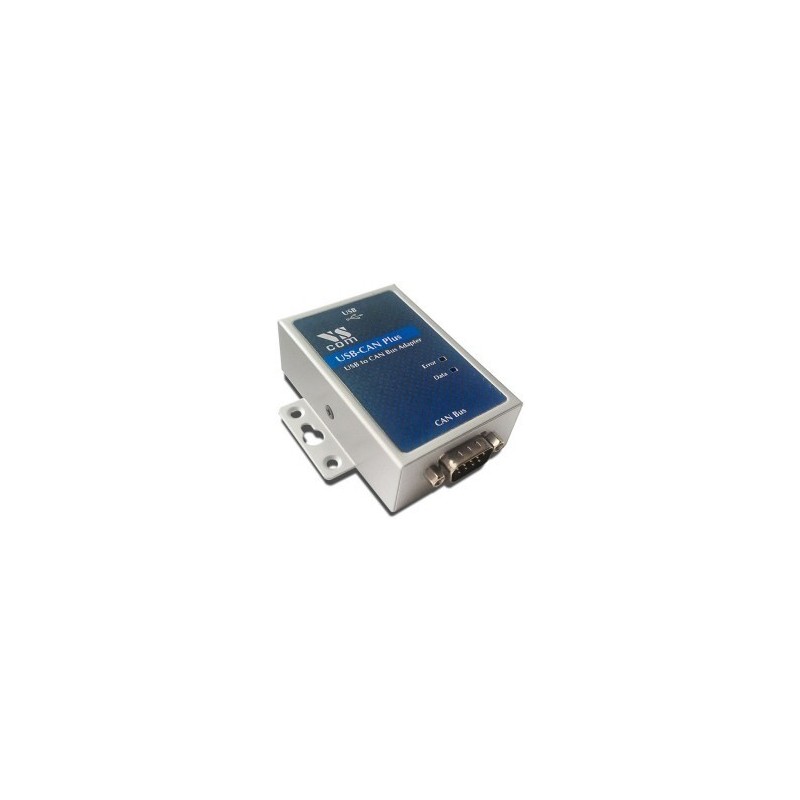

USB to CAN bus converter, isolated

Konverter fra USB til CAN bus
Tilsluttes via USB
Supporterer CAN 2.0A / 2.0B, op til 1 Mbit/s
Drivers til Windows, Linux and Mac OS X
16kV ESD surge protection
2.5kV isolation
Til væg eller DIN skinne montering

Reference: CNV-USB-CAN-IV

2,459.00 DKK

Tax excluded

Quantity

On the way in

Download PDF
Downloads

Ask a question

Product Details

Dimensioner: 50×72×22 mm (W×L×H) Case 72×72×22 mm (W×L×H) with mounting wings
Driftstemperatur: −25°C - 75°C
Forsyning: Via Input Voltage 5V (USB) Power Consumption max 80mA @ 5V, 400mW Connector USB Type B, bus powered, no external supply
Interface: USB 2.0 Full Speed, USB 1.1 compliant
Isolation: 16kV ESD surge protection 2.5kV Electrical isolation
Materiale: 0.8mm sheet metal
Montering: DIN-Rail (optional) Wall mount
OS SUPPORT: Windows 2000 up to Windows 10 Windows Server 2000 up to 2012 Linux kernel 2.6+ Mac OS X support available
Stik: DB 9 han stik til CAN bus. USB type B hun stik
Weight: w/o box 150g; w/h box 200g
