1 PORT MODBUS serial port server, RS232 / RS422 / RS485 Modbus over Ethernet. Can run Modbus TCP Master
MODBUS
Serial Device Server
1 x RS232 / 422/485 port
Atop MB5001C
WIN XP / 7/8 / WIN 10
Web Server Config.
9 ~ 30 VDC

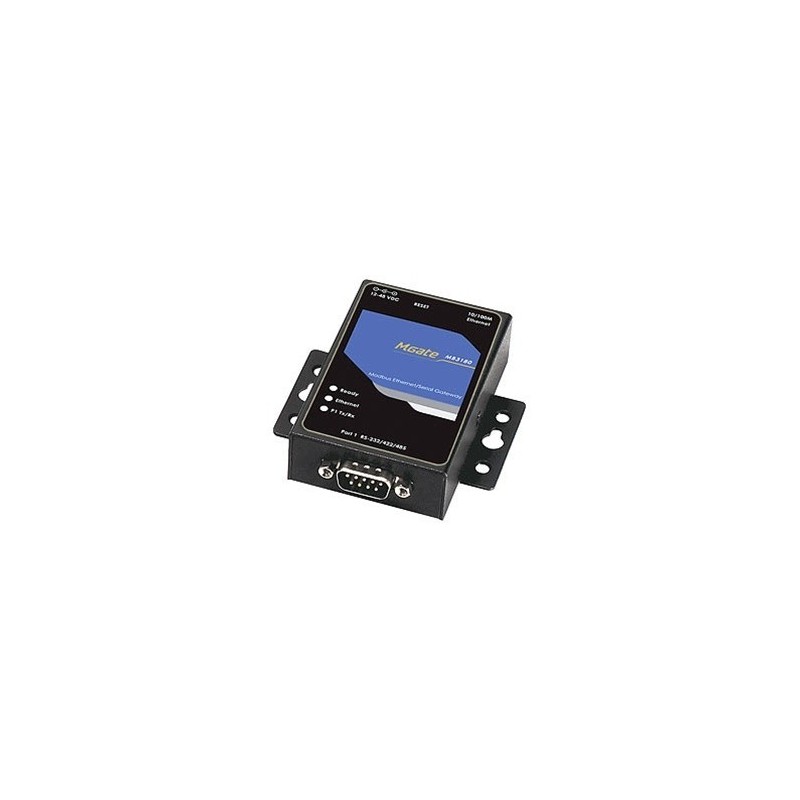

Moxa MGATE 3180 1port RS232/422/485 Modbus TCP to serial.
Ethernet Interface:
Protocol: Modbus TCP
Number of Ports: 1
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface:
Protocol: Modbus RTU/ASCII Slave/Master
Number of Ports: 1
Serial Standards: RS-232/422/485, software selectable
Connectors: DB9 male
ESD Protection: 15 kV for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Flow Control: RTS/CTS, DTR/DSR (RS-232 only)
Baudrate: 50 bps to 921.6 kbps
Serial Signals:
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
Software:
Configuration Options: Web Console, Serial Console, Telnet Console, Windows Utility
Utilities: MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)
Multi-master and Multi-drop: Master mode: 32 TCP slaves
Slave mode: 16 TCP masters (request queue 32-deep for each master)
Support Smart Routing, MXview, SNMP v1 (read only)
Physical Characteristics:
Housing Metal, IP30 protection
Weight: 340 g
Dimensions Without ears:
MB3180: 22 x 52 x 80 mm
With ears:
MB3180: 22 x 75 x 80 mm
Environmental Limits:
Operating Temperature: 0 to 60°C
Storage Temperature: -40 to 85 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements:
Input Voltage 12 to 48 VDC
Power Connector: Power jack
Power Consumption: 200 mA (max.)
MODBUS
Serial Device Server
1 x RS232 / 422/485 port
Atop MB5001C
WIN XP / 7/8 / WIN 10
Web Server Config.
9 ~ 30 VDC
Modbus over the Ethernet or Internet
MODBUS server with 1 x RS232 and 1 x 422/485
Can run Device to Device
0/100 Mbps Ethernet port, auto MDI / MDIX, 10/100 auto, 1500V magnetic insulation only on
RS485 RS232 Modbus ASCII / RTU port, 1 RS422 / 485 Modbus ASCII / RTU port, 16V / 400W TVS isolated, RS485 automatic line control
9 ~ 30VDC power input, IP30 enclosure , DIN rail mounting structure, USB port (Modbus serial port expansion and capture of memory)
Internet Communication controller with 1 x CAN bus, 1 x RS-232, 1 x RS-485 and 1 x Ethernet
10/100 Base-TX Ethernet controller
TCP / IP protocol
80 MHz CPU
1 x RS-232 port, 1 x RS-485 port and 1X CAN port can be used simultaneously
Max Transmission Speed up to 1M BPS for CAN and 115.2Kbps for RS-232 RS-485
7 -Segment LED Display
Software Configuration for Can and RS-232
Web Configuration
Up to 25 Ethernet Client Connections
Supports Virtual Com
1 channel software-selectable RS-232/485/422 port
Baud rate: 1200 - 230,400 / RS485 921,600
1 x 10/100 Mbps RJ45 Fast Ethernet port
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Modbus TCP/RTU/ASCII
Configuration via the web server side, the Telnet console and the Windows Utility
Upgradable firmware via Ethernet from a remote PC
Robust metal cladding; industrial EMC protection
Redundant dual DC inputs for non-stop operation
Optional DIN rail mounting
Supply: 9 - 30VDC or 5VDC / 9W
Dimensions: 78 x 65 x 28 mm
Temp: -40 - +70°C
