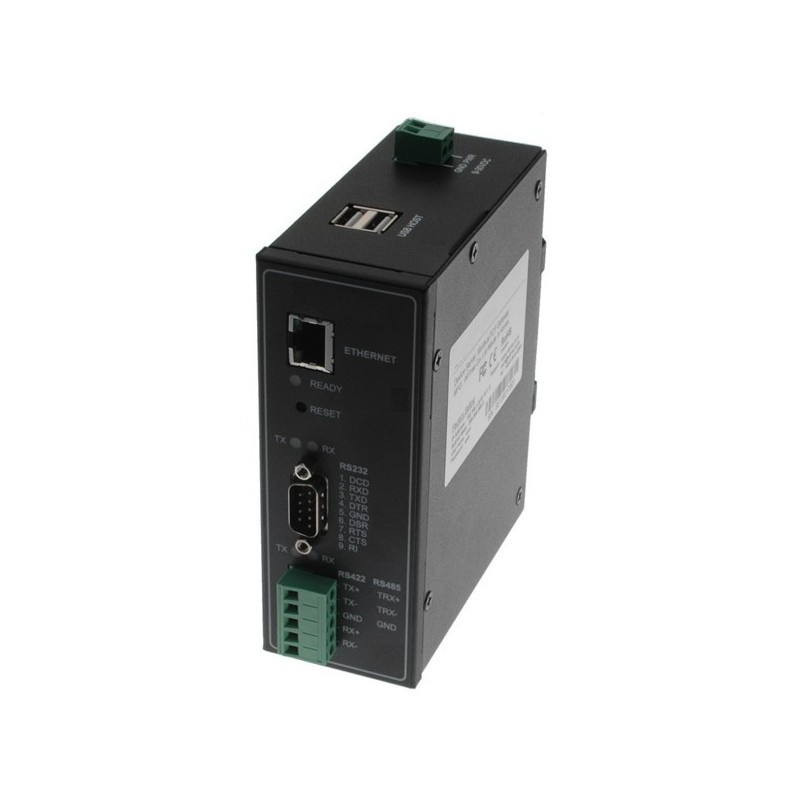

Ports 2 MODBUS serielportserver 1 x RS232 + 1 x RS422 / 485th Serial Device Server Box Box option

Modbus over the Ethernet or Internet
MODBUS server with 1 x RS232 and 1 x 422/485
Can run Device to Device
0/100 Mbps Ethernet port, auto MDI / MDIX, 10/100 auto, 1500V magnetic insulation only on
RS485 RS232 Modbus ASCII / RTU port, 1 RS422 / 485 Modbus ASCII / RTU port, 16V / 400W TVS isolated, RS485 automatic line control
9 ~ 30VDC power input, IP30 enclosure , DIN rail mounting structure, USB port (Modbus serial port expansion and capture of memory)

ETH2MOD
2,893.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

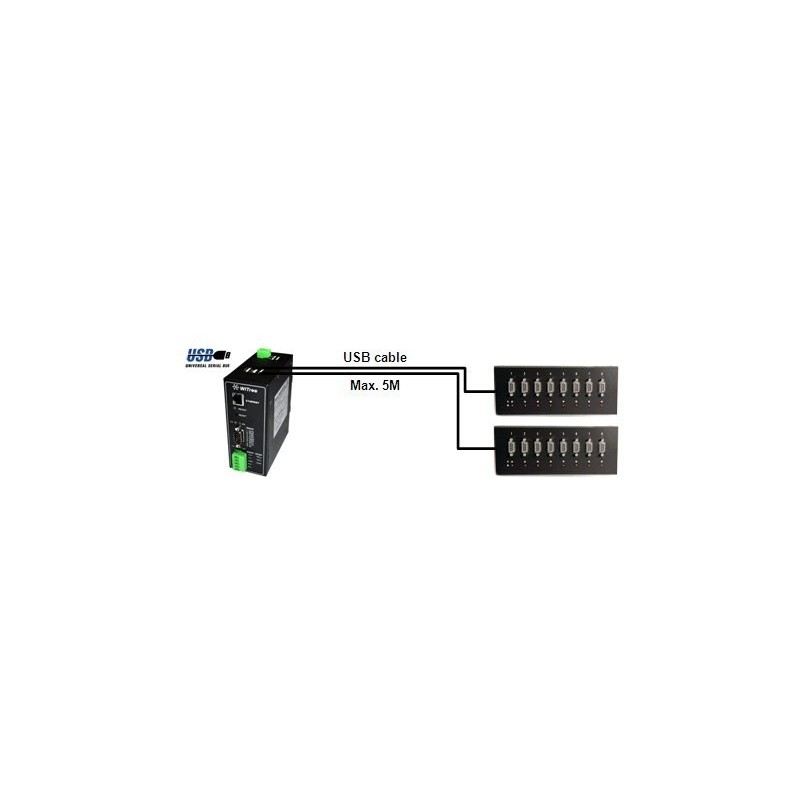

ETH2MOD is a MODBUS serial port server via Ethernet network that can be extended with several serial ports. The extension consists in that the device supports USB to serial converters based on FTDI circuit (see www.ftdichip.com), then up to 16 additional ports can be added and these ports have the same opportunities for management and configuration as they built. Setup can via a USB key that moves between two paragraphs. ETH2MOD, downloaded or saved as a backup. With very wide temperature range.

Administration
Web interface
Driftstemperatur
-40 – 85 °C
Kabinet
IP30-tæt metalkabinet i format 49 x 130 x 105 mm (H x B x D)
Montering
DIN skinne
Netværk
1 x 10/100 Mbit kablet Ethernet netværksport.
Porte
1 x RS232 port og 1 x RS422/485 port. Hastigheder fra 150 bit/s til 921 Kbit/s, Databit:5/6/7/8, Stopbit:1/2. Paritet: Lige/Ulige/Ingen
Protokol
TCP/broadcast TCP/server, TCP/klient, UDP/server, UDP/Klient, Modbus/ASCII, Modbus/RTU og Master/Slave
Signaler
RS232: TxD, RxD, RTS,CTS, DTR, DSR, DCD, GND. RS422: TxD+, TxD-, RxD+, RxD-, GND. RS485 2-leder: Data+, Data-, GND
Stik
RS232 port: DB9 han. RS422/485 port: terminalblok. Ethernet: 1 x RJ45 hunstik
Strømforsyning
9 ~ 30 VDC via terminalblok; forbrug ca. 10 watt afhængigt af tilsluttet ekstra udstyr via USB bussen
USB
2 stk. USB 2.0 porte. Bruges til udvidelse, samt gemme/hente opsætningen via en USB nøgle
