12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
2 channel duplex or four-channel simplex fiber optic bypass switch
Fiber Speeds 100 Gbps / 40 Gbps / 10 Gbps / 1 Gbps / 100 Mbps
Multimode with SC connector
Optical Bypass fallback switch
Supplyvoltage control fallback switching
Swiche-time under 8ms
1dB insertion loss (through-loss)
Very high reliability of critical network link
IP30 metal housing close
Supply voltage 9 ~ 48VDC or 24VAC, 0,6Watt
DIN -skinne and wall
Relay output for warning of power failure
Operating temperature: -40 to + 75 ° C
Industrial-grade design
Dimensions: 135 x 87 x 32 mm
In order to protect the critical fiber optic networks against failure in the power system is FIBER BYPASS-XX-Series ultra-fast automatic recovery solution for fiber network which does not tolerate failure, if there is a power failure on some critical network switches. Redundant backbone design with fiber bypass XX as bypass (fiber-switching) can minimize this.
Fiber bypass XX series is an industrial grade Bypass switch for optical fiber built-in 4 x duplex LC with 2-channel duplex or simplex 4-channel fiber-optic connection with bypass function. The optical fiber ports support 100Gbps / 40Gbps / 10Gbps / 1Gbps / 100Mbps fiber connections. FIBER-BYPASS XX automatically switch optical network traffic to prevent link failure during power loss. It also allows the local area network switch can be replaced or removed without stopping the network.
An optical fiber routing.
FIBER bypass XX series using fiber-to-fiber technology to achieve ultra-low loss and ultra-fast switching time. Two of fiber ports used to connect to two remote fiberomskiftere, and the other two fiber ports used to connect to the local fiberomskifter. FIBER-BYPASS-XX series and the local fiber Ethernet switch operated from the same power source.

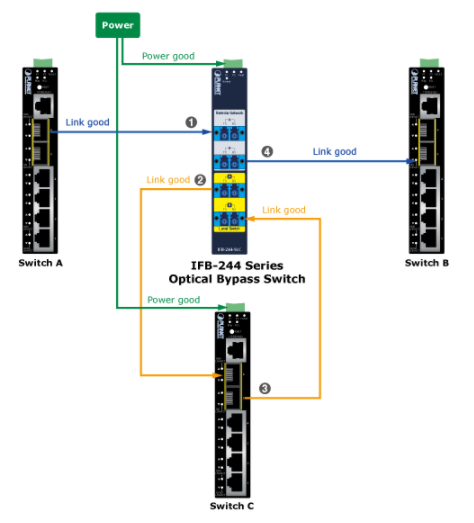

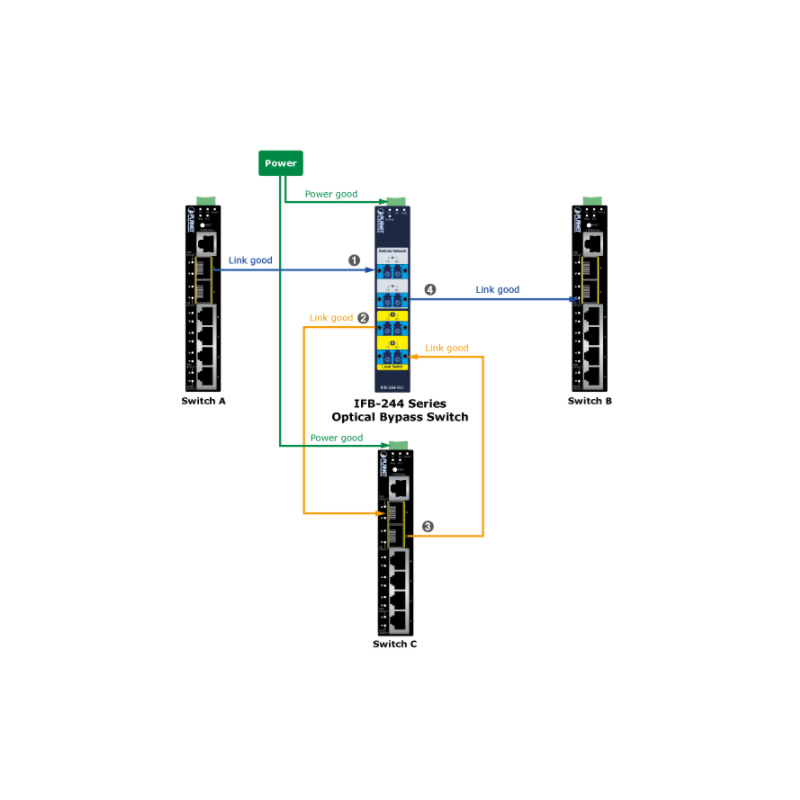

When the system power is on, functions FIBER BYPASS-XX series in Normal mode and forwards Ethernet packets between two external fiberomskiftere and local fiberomskifter.

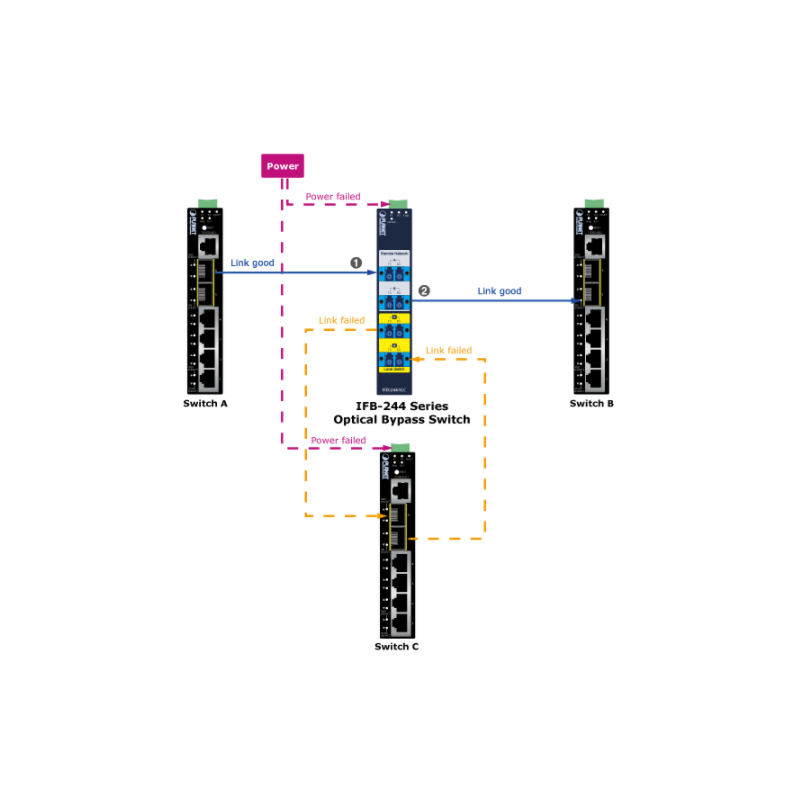

When a power outage occurs, works fIBER BYPASS-XX series in a omkoblingstilstand within 8 milliseconds, which directly forwards Ethernet packet between two external fiberomskiftere and bypasses the local fiberomskifter.
When the system power is recovered, resume network traffic operation between the two external and local fiberomskiftere fiber switch.
Can work as a A:B fiber changer.
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable

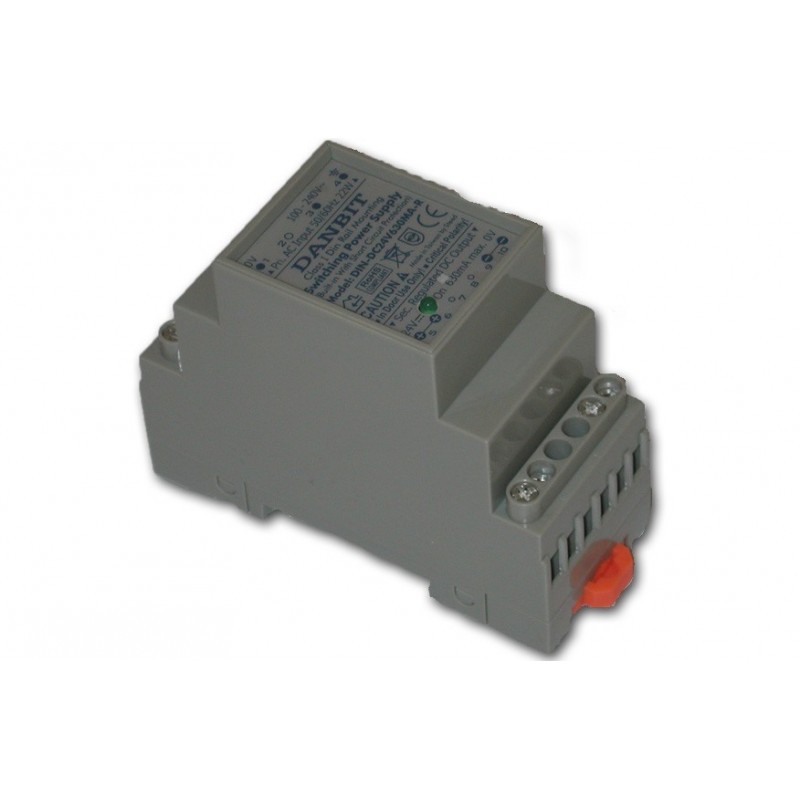

LINEAR AC / DC power supply for DIN rail mounting
230V to 24VDC 400mA - NO SWITCH MODE
No high frequency noise
Screw terminal
Operating temperature: 0 ° - 40 & nbsp; C For Indoor only use.
Compact design
Output 54VDC vlotage for PoE device use
Space for PoE switch / PoE Surge protector installation
IP66 rated
Include Thermal Switch control heater and blower
Include fiber panel for fiber cable connection
Battery protection for deep discharge and short circuit
Space for 12V/7Ah Battery x 4PCS
8 Ports Managed Switch With Fast Recovery and Ring
Erps (Ethernet Ring Protection Switching)
8 x RJ45 10/100/1000Mbit Switch
Store and Forward Architecture, Broadcast Storm Checking
1.5mbits SRAM Packet Buffer
Automatic Address Learning and Address Aging
Supply paging: 12 - 48VDC or 24VAC

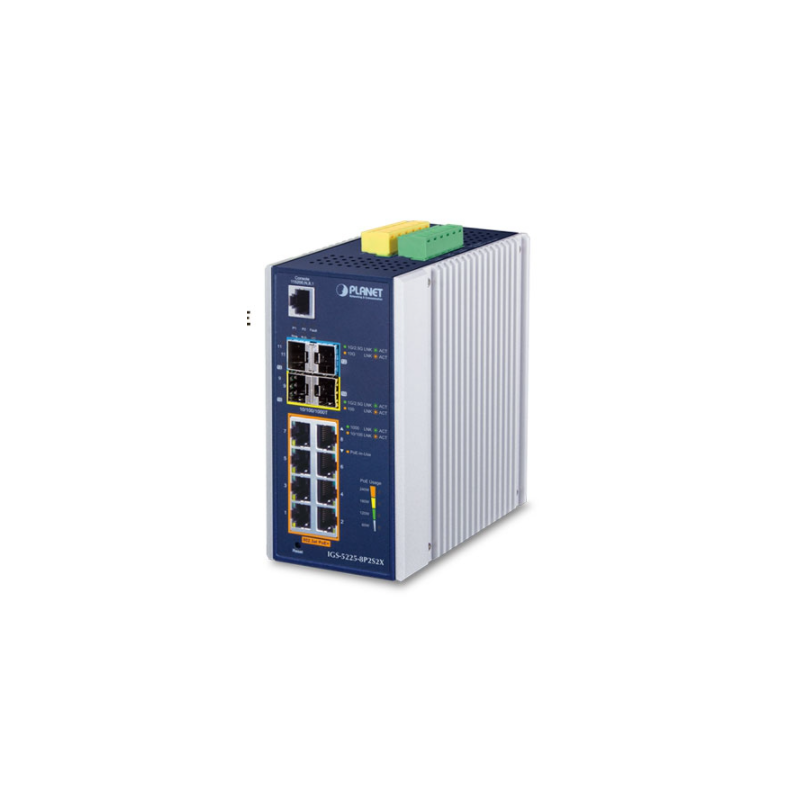

Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams

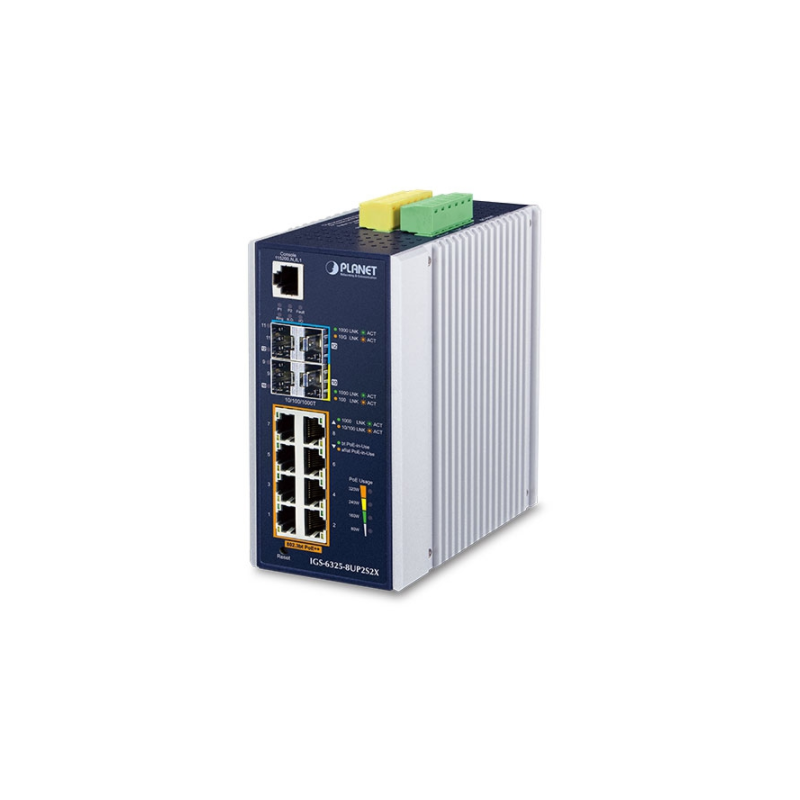

Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac
