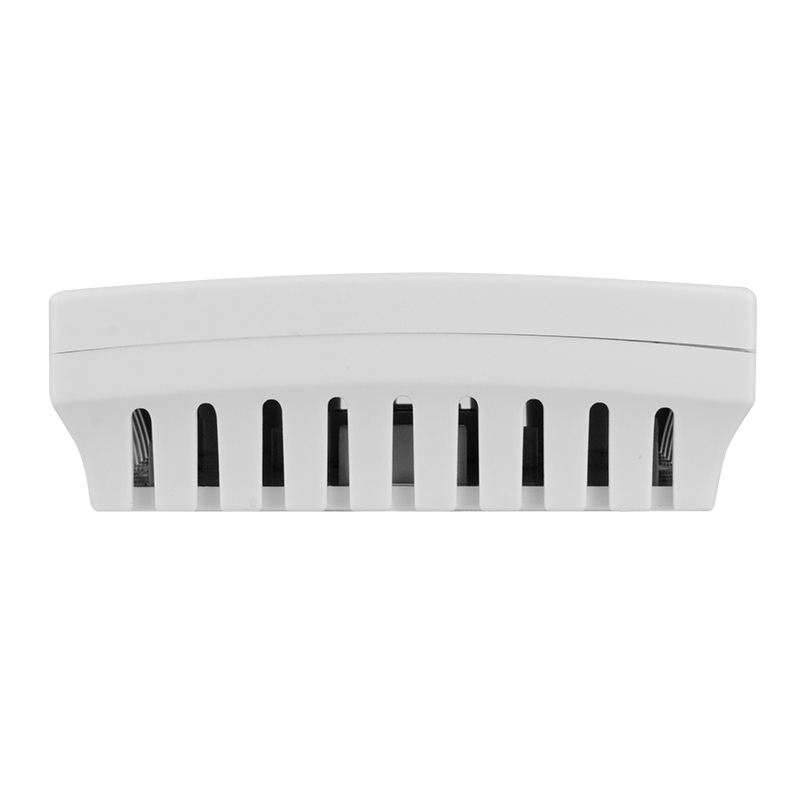

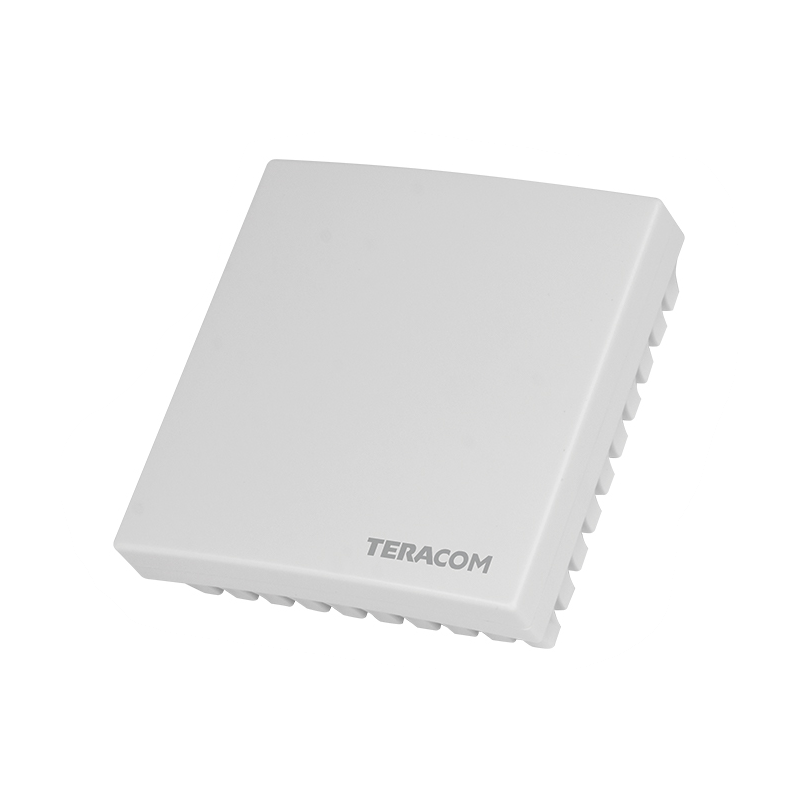

Combined CO2 and barometric pressure sensor with a 1-wire interface for Teracom controllers

Multisensor for CO2 and barometric pressure
Interface: 1-wire (+/- and data)
LED indicator for communication status
Long-term stability based on digital signal processing
Self-calibration on fresh air for CO2 measurements
Interchangeable communication parameters
Non-volatile memory for all settings
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
Supply voltage: 4.5 - 26VDC / Max. 150mA

TSM400-1-CP
1,904.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

TSM400-1-CP is a multi-parameter sensor that supports the 1-Wire protocol. The sensor measures the concentration of carbon dioxide and atmospheric pressure. Both basic sensor elements, for carbon dioxide and pressure, used in the device are digital. This ensures high measurement accuracy and longterm stability. The basic sensing element for atmospheric pressure is factory calibrated and it does not require any lifetime recalibration. Automatic calibration is available for carbon dioxide measurements. TSH400-1-CP is housed in a slim plastic enclosure. The bottom part of the enclosure is suitable for installation on standard flush-mounted/cavity wall boxes ø68mm, with installation openings on 61mm.

CO2 measurements:
Range: 400 to 5000 ppm
Accuracy: ± (40 ppm +5 %)
Resolution: 1 ppm
Calibration: Automatic, if the sensor is exposed to fresh air for more than 30 minutes.

Barometric pressure measurement:
Range: 10 to 1200 hPa
Accuracy (min): ±1.5 (25°C at 750 hPa)
Accuracy (max): ±2.5 (-20°C to + 85°C, 300 to 1100 hPa)
Resolution: 1 hPa
