Terminal board with 8 x relay outputs for USB-DIO24
Passer til USB-DIO24

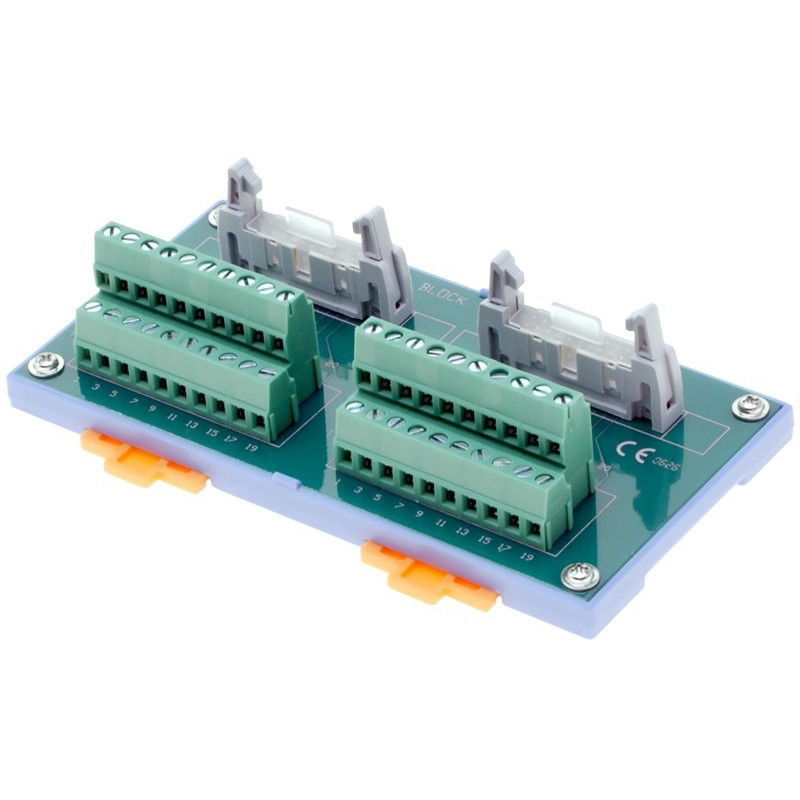

Double terminal board with 2 x 20 screw terminals
2 x 20 pole IDC male connector
For DIN rail mounting
Incl. x 1m flat cable IDC20 female to IDC20 female
148 x 70 mm (W x L)
Inkl.2 x 1,0 m fladkabel IDC20 han til IDC20 hun
Passer til USB-DIO24
DB9 male connector
RS232 with 9 pins and screw terminals. RS232 / 485/422
D-SUB 9pin
3 x 4.7 x 1.8 cm (4.7 cm from the front of the DB9 connector to the back of the PCB)
Terminal cards with 25 and 10 screw terminals
DIN-Rail Mounting
9-pin D-sub connector
25-pin D-sub connector
Pin to Pin screw terminal
Dimension: 148mm x 76mm
24 pcs shift relay (COM, NC, NO) 250VAC and 24VDC 1Amp - 24 LEDs show relay position
Control of TTL signal (+ 5VDC is relay ON)
Supplied with +24 VDC externally
Plugs: IDC50
Dimensions: 130 x 220 mm (W x D)
