RFID 2.45GHz reads / write for active RFID tag. Range up to 140 m. Ethernet, RS232, RS485. Removable antenna

Long Range 2.45GHz RFID reads and writes for 140 m Range
Programmable parameter
1 x RJ45 (10/100 Mbit)
1 x RS232 (RX, TX)
1 x RS485 2-wire Protocol: ICMP, ARP, IP, TCP (Server / Client), UDP, DHCP, HTTP
Supply voltage: 7 - 15 VDC / 4 Watt
Dimensions: 107W x 138h x 30D (mm)
Weight: 222g
easy installation

RFID245READ-S
7,632.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

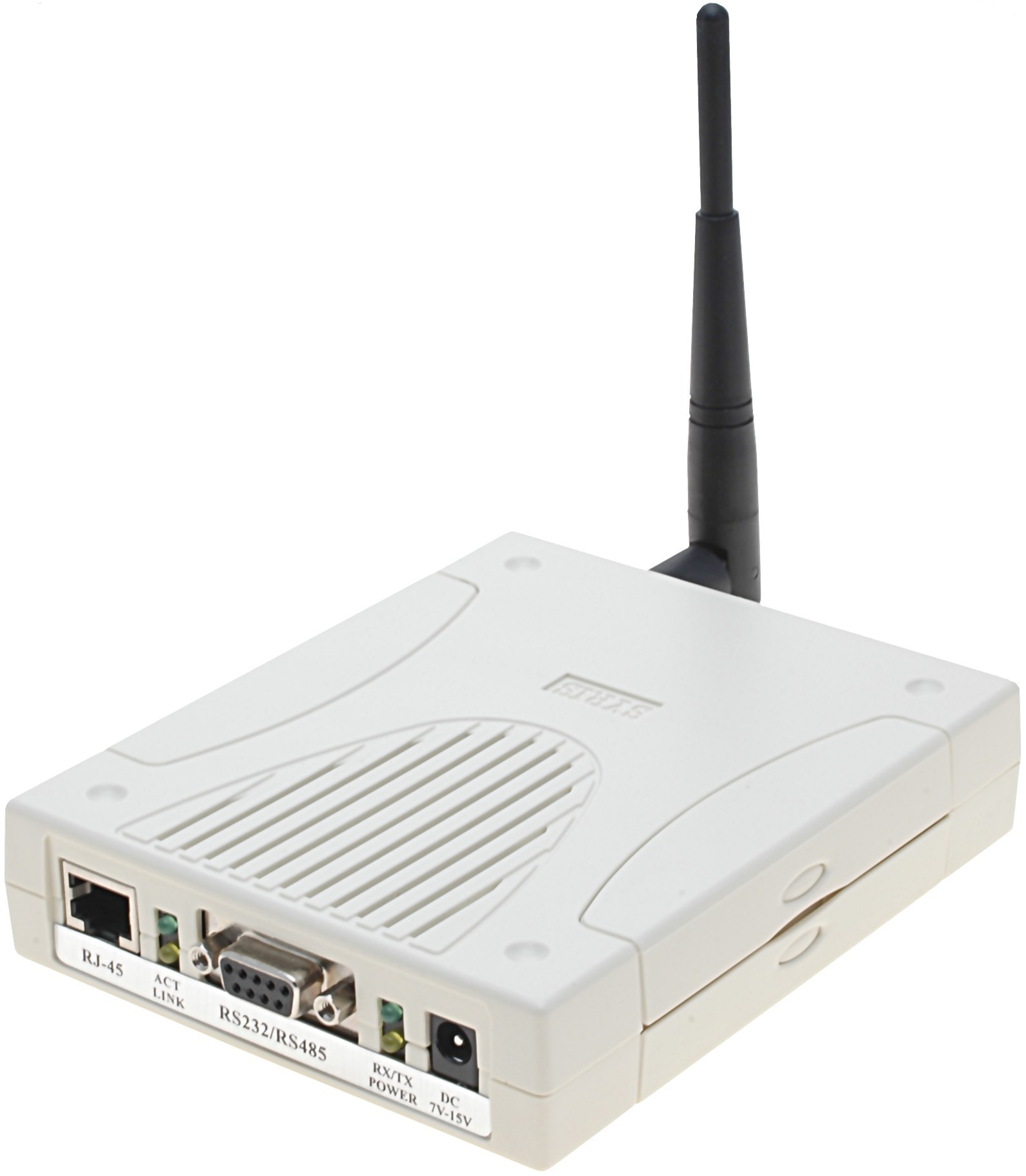

RFID 245 Read-S is an RFID reader / printer to active tags (with batteries). The range is up to 140 meters depending on the Type and Samhane Reinforement. RFID245READ-S can be used for purposes as a search of products or persons, gate opening and access control.
RFID245READ-S Detects the transmission power from the tag. Using the right software and multiple recipients, the site can therefore be approximated.
Tags are available in different versions. RFID245Tag-RM-AA1 can measure the temperature, respectively. On the front and back (skin and air) and have a light sensor so that it can detect if the person is light or dark. There is keychain pendant with and without alarm key and with and without vibrationføler.rfid245Tag2c-BM0, both 13.56 MHz Mifare chip and 2.45 GHz active transmitter.

Antenne
Rundstrålende (omnidirektionel)
Dimensioner
107 x 138 x 30 mm. Vægt 222 g
Driftstemperatur
-20 til +65 °C
Forsyning
7-15 VDC 3,6W. 12 VDC, 1.5 A 230VAC adapter medfølger
Frekvens
2,40 - 2,48 GHz
Interface
RS232, RS485 og 10/100Mbit Ethernet interface
Læseafstand
Op til 140 m afhængig af tag
Protokoller
ICMP, ARP, IP, TCP (Server/Client), UDP, DHCP, HTTP
Software
Administrationssoftware til indstilling af parametre, demosoftware til afprøvning af funktionerne og SDK til udvikling af egen software medfølger.
