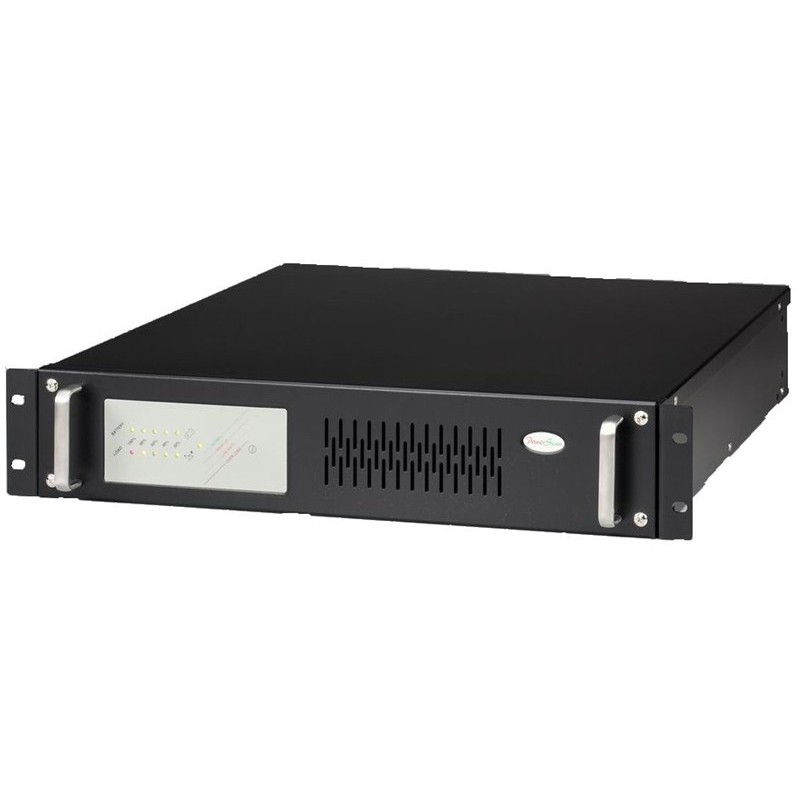

2.2 kVA / 1.3 kWatt UPS for 19 "rack mounting, incl. 4 batteries

2.2 kVA / 1.3 kW UPS for 19" rack mounting, incl. 4 x 12V / 7Ah batteries, 2U

2200VA, 1350W 2U UPS, 19 "rack mounting
Simulated sine wave
During the 3-hour recharge time
Alarm v. Low battery and overvoltage mm
Connectors: 6 x IEC ed and 1 x IEC engrave.
Operating temperature: 0-40 °
Supports automatic shutdown via software
Incl. 4 x 12V 7Ah battery

6,577.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number UPS2200R
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. 0-40 °C
Alarm Bip hvert 3. sekund hvis batteri er aktivt, bip hvert sekund hvis batteriniveau er lavt og kontinuerligt bip ved overspænding
Batteri 50 % belastning: 12 min, fuld belastning: 4,5 min<br>4 x 12V 7Ah inkluderet
Beskyttelse Mod over- og underspændinger, overbelastning og kortslutning
Genopladningstid (90 %) mindre end 3 timer
Kapacitet 2200VA / 1350 W
Montering 19” rack
Software Der medfølger software, der giver information, om ladestatus, ind- og udgangsspændinger, e-mail advarsel, skemalagt test af UPS og meget mere.
Stik 6 x IEC stik til udgang og 1 x IEC stik til indgang (standard pc spændingsforsyningsstik)
Støj Under 40 dB (ved 1 meter)
Weight 31 kg
Dimensioner 2 U x 47 cm

UPS for 19 "rack mounting
Emergency power supply with 230VAC / 50Hz, 2200VA / 1300Watt
