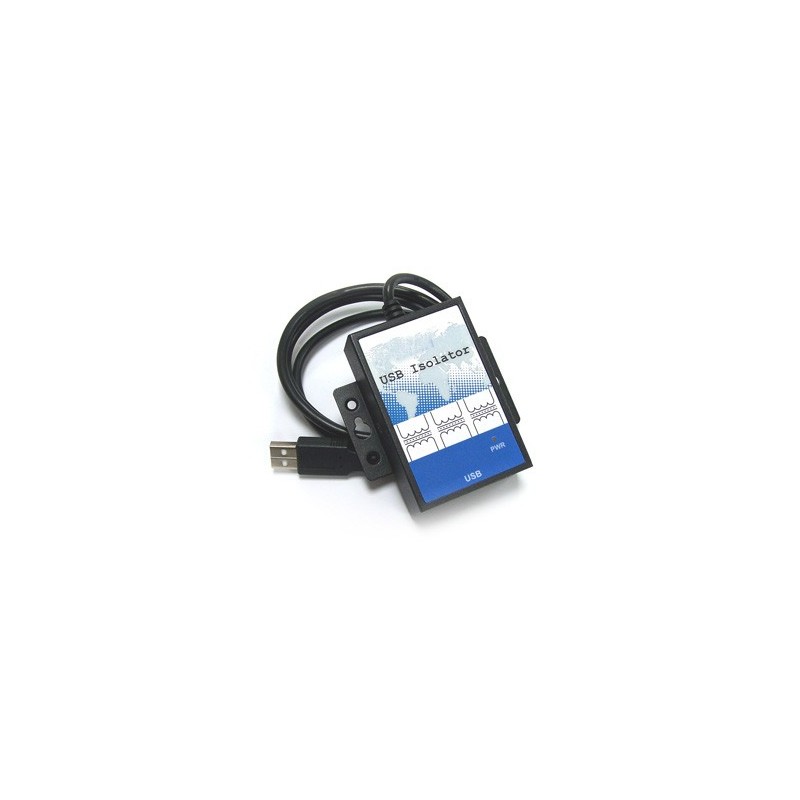

USB galvanic isolator (3kV) between USB devices and up to 15 kV overvoltage. Output 5VDC/420mA
Isolates and protects USB device from USB host
Electrical insulation up to 3000V both directions
Common mode filtering on all data lines
Output voltage: 5V 420mA
USB2.0 12 Mbps or USB1.1 1.5 Mbps with jumper
No software or drivers required
Short circuit protection
LED for power indication
Operating temperature: -40 - +70°C
Robust metal housing with DIN rail mounting
USB cable is securely locked to the case
$102.21
Excl. VAT
Quantity
Physically in stock
Product number USB-ISO+
Specifications
Beskyttelse | Protected with surge protection of 15kV 3000V DC optical isolation for all signals Short circuit protection |
---|---|
Dimensioner | 73mm × 52mm × 25mm (L × W × H) 73mm × 75mm × 25mm (L × W × H) with DIN rail ears |
Driftstemperatur | -40°C to 70°C (-40°F to 158°F) |
Forsyning | Power supplied via USB (5V) connector No external power needed |
Kabinet | SECC metal chassis with DIN rail brackets |
Porte | 1 x tilslutningsport fra pc’en med 1 m USB kabel type A hunstik. 1 x tilslutningsport USB 1.1, type A stik. Kompatibel med USB 2.0 (maks. hastighed er 12 Mbps) |
USB | USB 1.0/1.1 compliant, USB 2.0 & 3.0 compatible Speed 12Mbps, full-speed USB 1.5Mbps, low speed USB |
Weight | 190g |
USB-ISO+ is a robust, industrial-grade full speed USB isolator that provides high-voltage 5kV isolation to protect the host computer and expensive USB equipment that are connected to it.
This industrial USB isolator is designed to build protective isolation barriers to the power and USB signals between a host computer and any connected USB devices.
Both the computer and the connected USB device are protected from harmful voltage, power surges, transient voltage spikes, ESD shock,
EMI/RFI interferences and noise that may cause damage and inaccurate measurements.
The isolator is very efficient and secured to eliminate ground loop currents and protect against overvoltage.
The data transfer rate of USB-ISO+ can be configured to either USB2.0 full speed 12Mbps or USB1.1 low speed 1.5Mbps.
The isolator is bus-powered and provides up to 420mA current to downstream devices. There is no need for any driver or software installation.
By plugging the cable from the USB isolator to the host USB port of the PC and connecting your USB device to the downstream port of the isolator, the host PC and USB device are immediately protected by isolation.
The USB isolator helps improve system stability and protect valuable industrial and medical equipment. When the USB host and USB devices are operating at different ground voltages,.
The USB-ISO+ is an ideal protector to prevent damage.
