4K60 HDMI transmitter over Cat.6a cable with Poh. 100 meters HDbaseT protocol. Can be powered from PSE

Send incompressed 4K / HD video and audio over CAT6A / 7 cable up to 100 meters
HDbaseT communication protocol (5 in 1)
HDbaseT Supporter: Audio Video, Operation, Ethernet, USB, Power

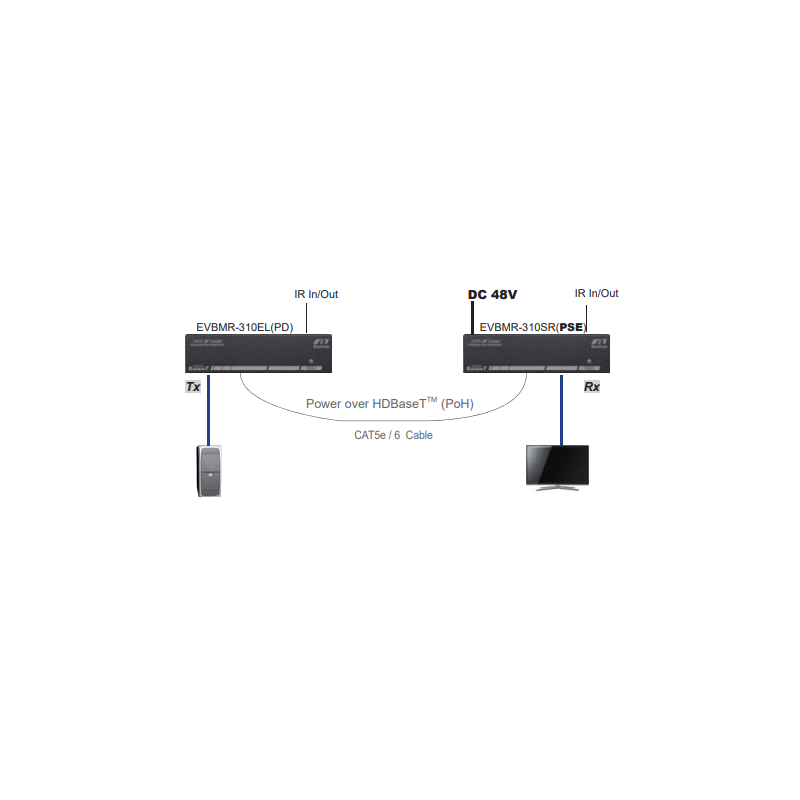

Can be powered from HDbaset with PSE
PSE is equipment that sends Poe out on the RJ45 port
power from Mini-USB by no PSE connected
map HDMI cable, eliminates the need for extra cables
Resolution Up For UHD (3840 x 2160), Deep Color and HD audio formats
4K @ 60Hz 4: 2: 0
4K @ 30Hz 4: 4: 4
HDCP compatible and Blu-Ray ready
Plug-and-Play No Software Installation
Requires Best Quality Cable! No Support if not the cable is from Danbit

BOOST-HDMI100-4K-ST
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

HDMI sends Boost-HDMI100-4K-ST is an HDbaset Extender solution that allows for HDMI extension through a single cat. 6A cable up to 100 meters at 1080p (or 70 meters at dissolution 4K) comply with HDCP 1.4. The built-in auto edid configuration feature ensures the optimized output. It is the best solution for factory, campus, military, office, medical use, control room or simple digital signage.

In addition, no software or drivers and easy to install are required. The Extender is compatible with all leading operating systems and supports all USB device types from high-speed webcams, hard drives, printers, scanners, audio devices, digital cameras and game controllers.

The manufacturer joined HDbaset Alliance and developed hundreds of HDBASED EXTENDERS. Through HDbaset Extenderers, users have a better experience of ultra-high-definition video sound, Ethernet, control, USB and POH (Power over HDbaset). HDbaset Extenderers send long distance as 100 meters through a single cable, even more, they can deliver up to 4K video, and we can expect 8k in the near future.
