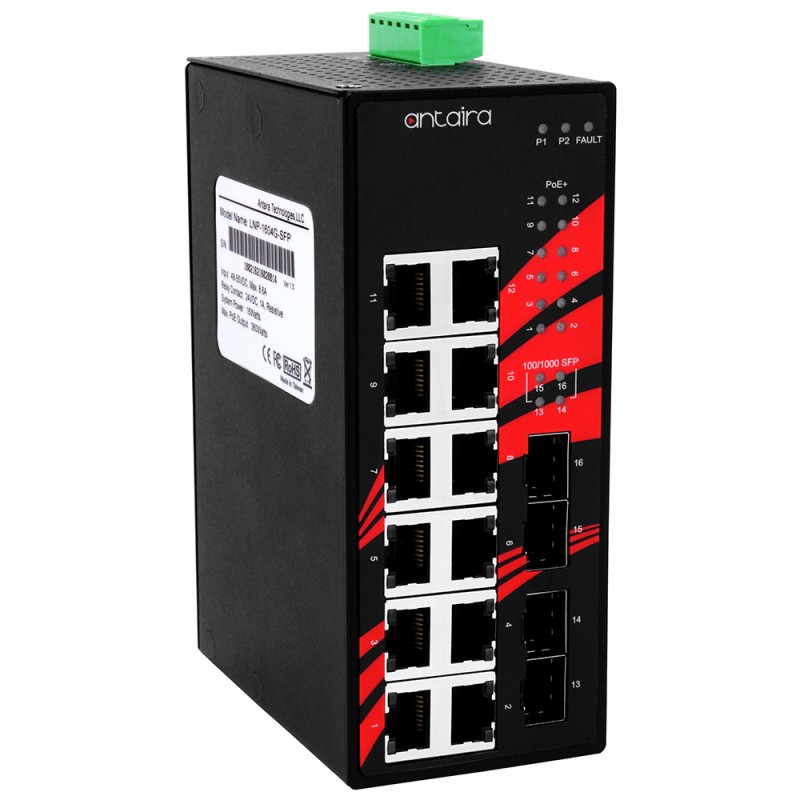

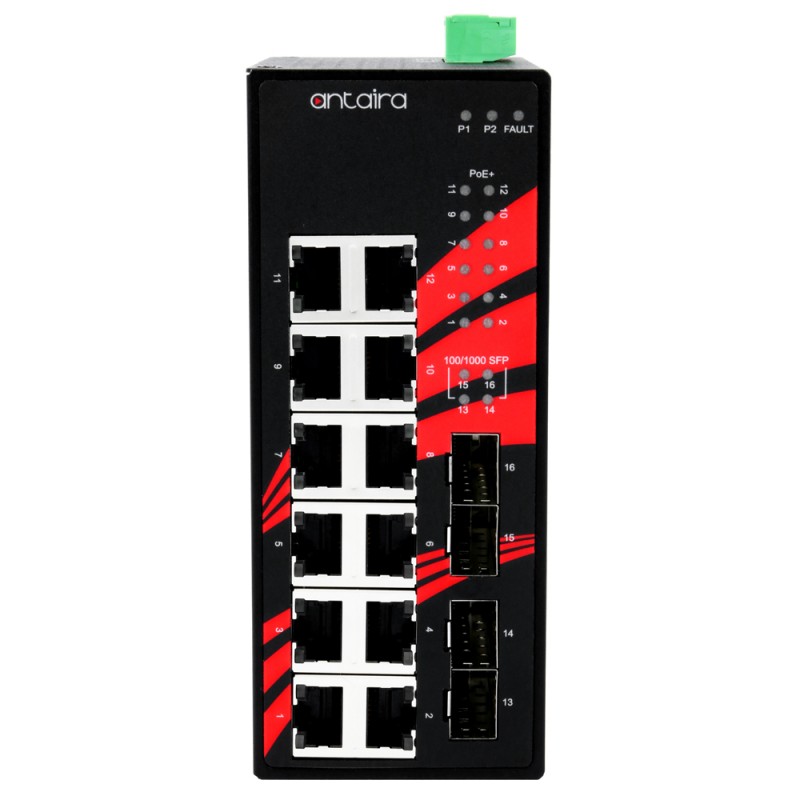

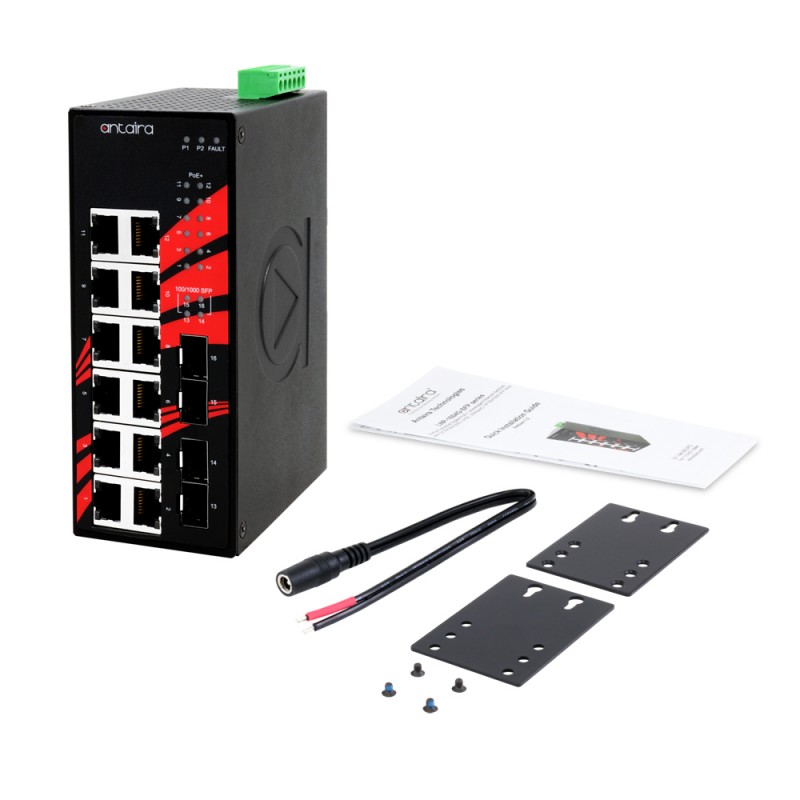

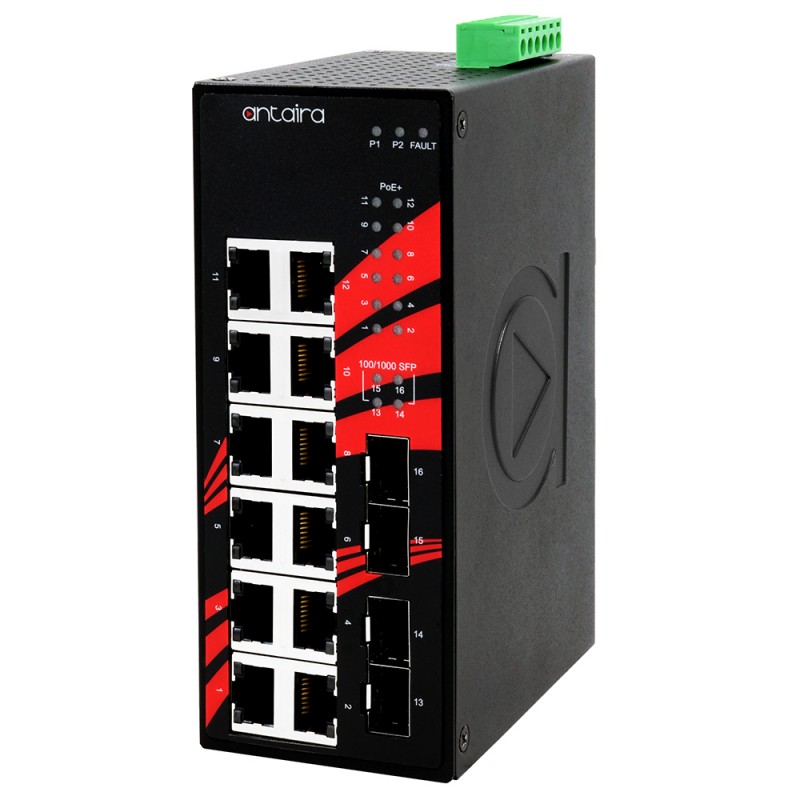

16-Ports industriel Gigabit PoE+ unmanaged switch med 12 RJ45 porte og 4 FTP porte

12 x 10/100/1000Tx RJ45 (30W/port) IEEE 802.3at PoE+
4 x 100/1000 SFP porte
Store-and-Forward Switching Architecture
8K MAC Address Table
12.2Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Strømforsyning: 48~55VDC
Indbygget relæ Output til Power Failure
IP30 Rugged Metal Case Design

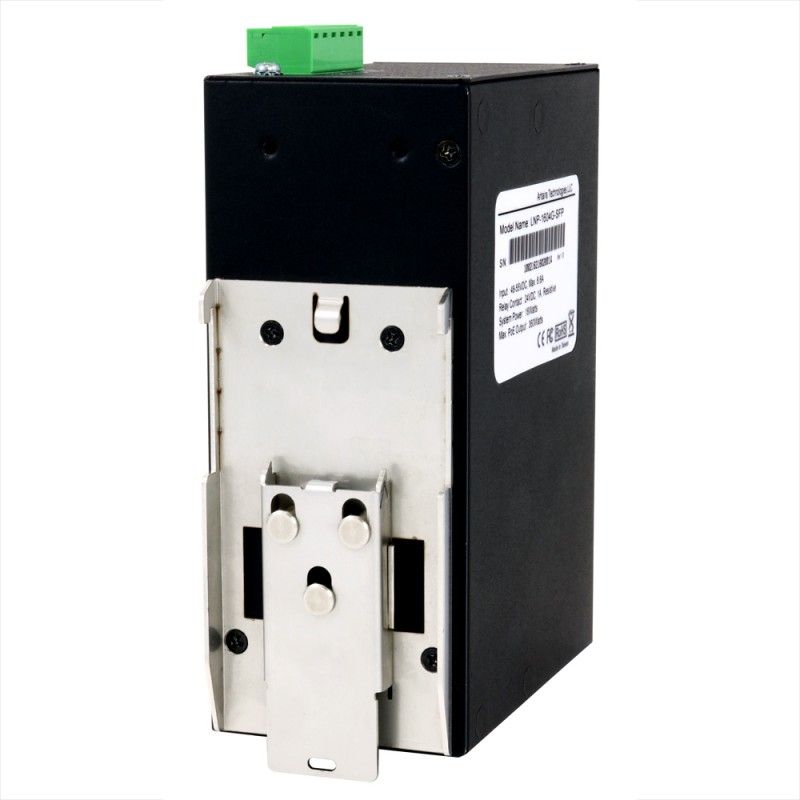

DIN-Skinne og Væg montering
Driftstemperatur STD: -10° to 70° C

ANR-LNP-1604G-SFP
9.330,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Buffer
4 Mbit
Certifications
FCC, CE
Chok/Vibration
IEC60068-2-32, IEC60068-2-27
Dimensioner
59 x 99 x 142 mm (W*D*H)
Ethernet
12*RJ45 Ports w/10/100/1000Tx (w/PSE: 30W/port), auto negotiation speed, Full/Half duplex, and auto MDI/MDIX connection
Fiber
4*100/1000 SFP Slots
Forbindelse
1 removable 6-contact terminal block
Luftfugtighed
5% to 95%, (non-condensing)
Materiale
Metal IP30 protection
Protokol
CSMA/CD
Relæ
24 VDC, 1A resistive
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3af/at Power over Ethernet
Strømforbrug
16W; (376W w/full PSE load)
Strømforsyning
48-55VDC
