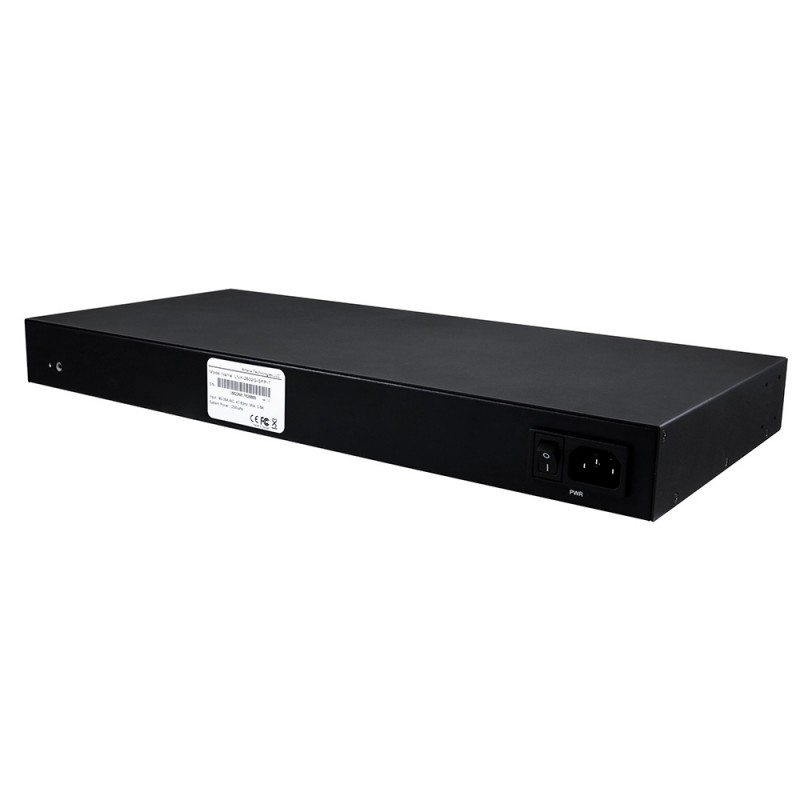

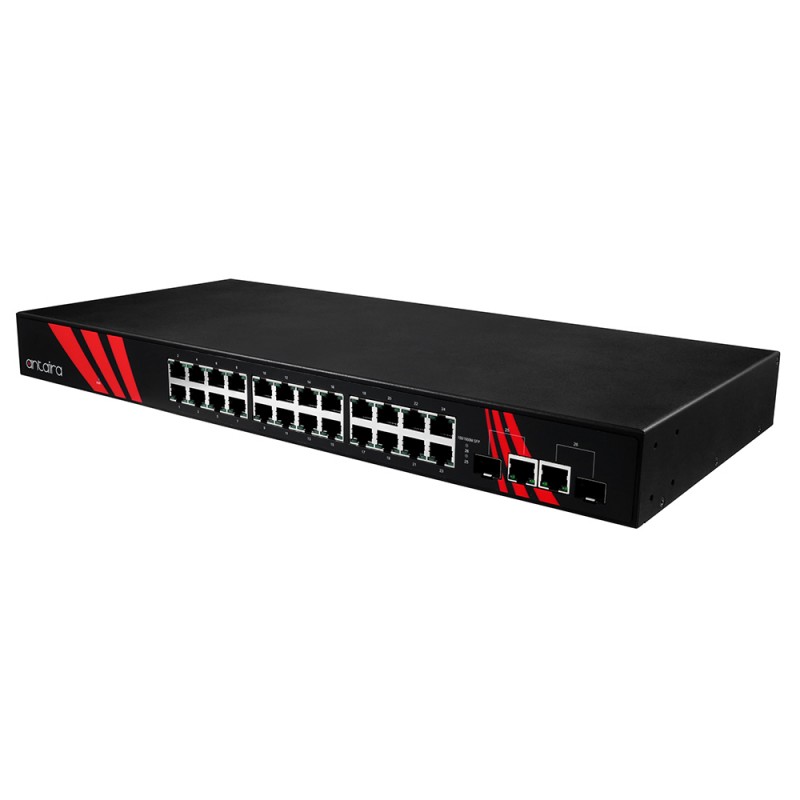

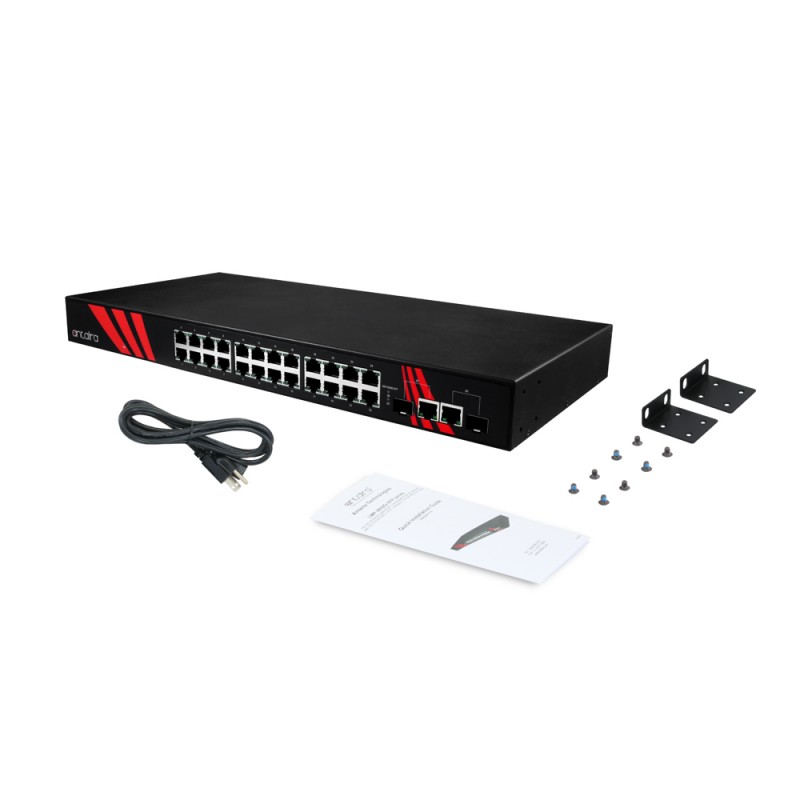

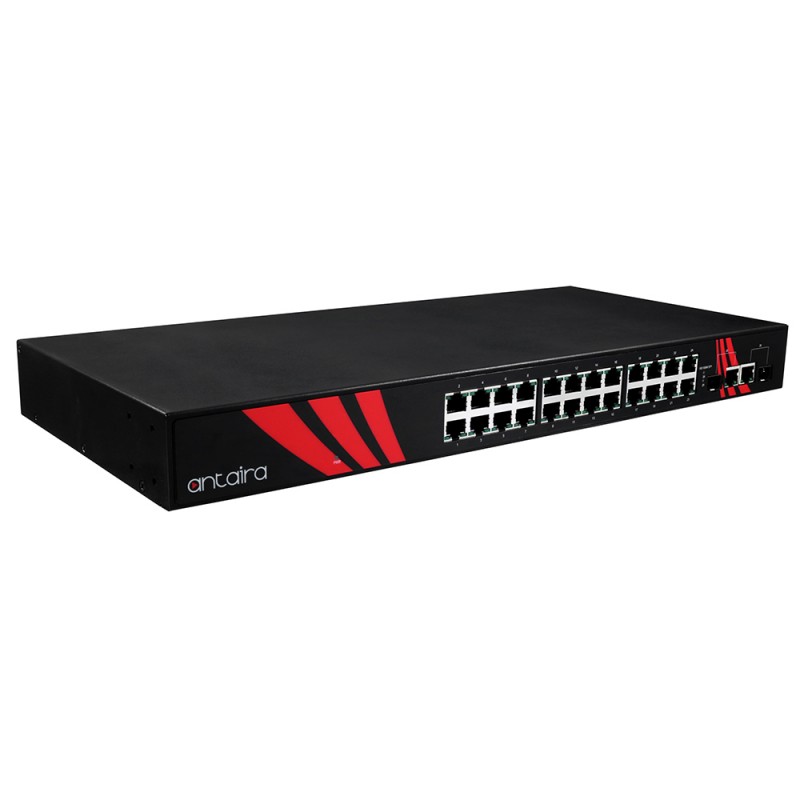

26-Ports industriel gigabit unmanaged switch, IP40, 1U, 19" Rackmount

24 x 10/100/1000Tx RJ45
2 x Gigabit Combo Porte
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP Slots
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input Design: 90~264VAC
1 x indbygget Relæ Output til Power Failure
IP40 Rugged Metal Case Design
1U 19" Rackmount design Support
Driftstemperatur: -10° to 70° C

ANR-LNX-2602G-SFP
13.239,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Approval
EMI, EMS, FCC Part 15 Subpart B Class A, CE EN 55022 Class A
Buffer
4Mbps (buffer)
Chok/Vibration
IEC60068-2-27, IEC60068-2-6
Dimensioner
440 x 44 x 200 mm (W x H x D)
Driftstemperatur
STD: -10° to 70° C
I/O
26 x RJ45 10/100/1000Tx, 2 x 100/1000 SFP Slots
Luftfugtighed
5 to 95%, (non-condensing)
Materiale
Metal, IP40 beskyttelse
Montering
1U 19" Rackmount
Netværk
10Base Tx: UTP/STP Cat. 3,5 100Base Tx: UTP/STP Cat. 5 1000Base Tx: UTP/STP Cat.5/5e/6
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3z 1000Base-X Gigabit Fiber
Strømforbrug
24Watt
Strømforsyning
90-264VAC/47-63Hz

4 andre produkter i den samme kategori:

8 ports Industriel...

8 ports Industriel 10/100/1000Mbit + 2 x 100/1000Mbit SFP slot switch, DIN-beslag, -40 - +75°C, 12 - 48VDC

8 ports 10/100/1000Mbps Fast Ethernet switch + 2 100/1000Mbps SFP slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -40° til 75°C

Pris 4.393,00  DKK
Varenummer ANR-LNX-1002G-SFP-T
På vej ind
Vis her
8 ports Industriel...

8 ports Industriel 10/100/1000Mbit switch, DIN-beslag, -40 - +75°C, 12 - 48VDC

8 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
16Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -40° til 75°C

Pris 2.456,00  DKK
Varenummer ANR-LNX-800AG-T
På vej ind
Vis her
10-Ports Gigabit Switch med...

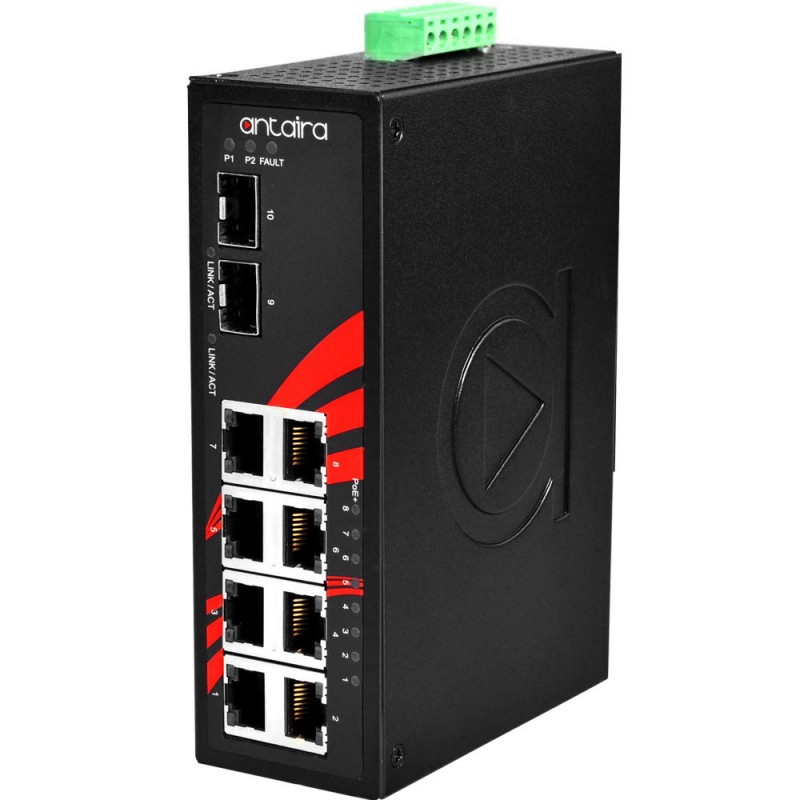

10-Ports Gigabit Switch med PoE+ unmanaged, 8 x RJ45 og 3 x SFP, 12-36VDC, 48-55VDC

8 x 10/100/1000Tx RJ45
PoE+ (30W/port)IEEE 802.3at PoE
2 x 100/1000 SFP porte
Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Forsyningsspænding: 48~55VDC
Indbygget relæ Output for Power Failure
IP30 Rugged Metal Case Design
DIN-Skinne og Væg montering
Driftstemperatur STD:-10° til70°C

Pris 6.758,00  DKK
Varenummer ANR-LNP-1002G-SFP-24
På vej ind
Vis her
5 ports Industriel...

5 ports Industriel 10/100Mbit + 2 x 100/1000Mbit SFP slot switch, DIN-beslag, 0 - +70°C, 12 - 48VDC

5 x 10/100Mbps Ethernet porte + 2 x 100/1000Mbps SFP Slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminumkabinet
DIN-Rail og Wall Mount
Temperaturområde: 0 til 70°C

Pris 2.441,00  DKK
Varenummer ANR-LNX-0702C-SFP
På vej ind
Vis her
