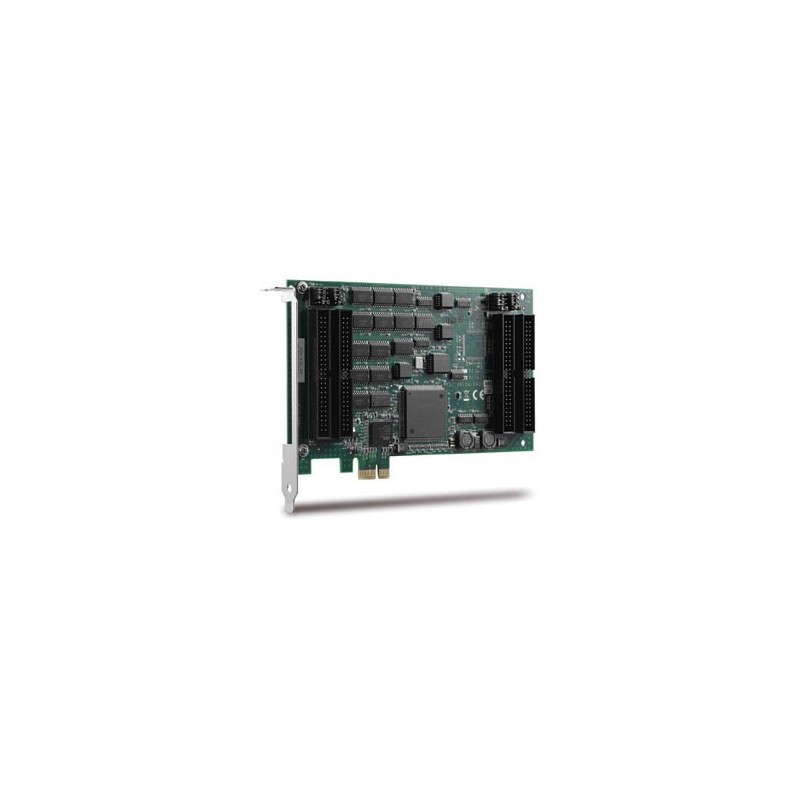

96 kanals TTL I/O kort, 500kbit/s, PCI Express, Adlink PCIE 7296

PCI Express kort med 96 TTL I/O kanaler, samt 3 tæller

X1 PCI Express interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Support Windows 7/8 X64/X86 and Windows 2008 R2

DIO96CTC-PCI-E
3.667,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

DIO96CTC-PCI-E (ADLINK PCIe-7296) are high-density parallel digital I/O boards with 96/48 I/O channels. The header connectors are fully compatible with industry Opto-22 standard. Thus, DIO96CTC-PCI-E can utilize the Opto-22 external devices. The DIO96CTC-PCI-E devices emulate mode 0 of the industry standard 8255 programmable peripheral interface (PPI) chips. The DIO96CTC-PCI-E provides 4/2 PPI chips respectively. Each PPI offers three 8-bit ports: Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The DIO96CTC-PCI-E devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The DIO96CTC-PCI-E devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer.

Dimensioner
121 x 168 mm
Ind- og udgange
96 programmerbare TTL I/O kanaler
Software
Drivere til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
Stik
4 x 50-polet IDC
Tæller
3 stk med 2 MHz clock eller ekstern trigger
