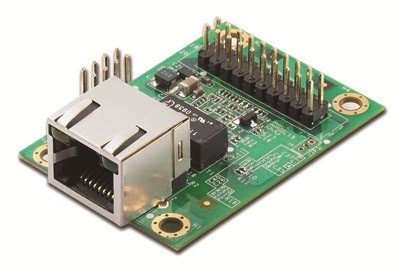

Embedded Device Server 10/100 with RJ45, Moxa Miineport E3

MOXA MIINEPORT E3
10/100 Mbps embedded serial device servers with RJ45
IEEE 802.3af compliant PoE pass-through
Use Moxa’s high quality and reliable second generation MiiNe SoC
Versatile choice of operation modes fulfill specific application requirements
Green design with extremely low power consumption
MiiNePort NetEZ Technology makes integration incredibly easy
Highly compact embedded device module
Support IPv6

852.38 NOK
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number ETH1SER-E3
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU 32-bit ARM Core
Andet TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
Dimensioner 35 x 52.5 x 18 mm
Driftstemperatur 0 to 55°C
Flash 2 MB built in
Forsyning Input Voltage 3.3 to 5 VDC Input Current 157 mA @ 3.3 VDC
Hastighed 10/100 Mbps, auto MDI/MDIX
Hukommelse 4 MB built in
Isolation 1.5 kV built-in
Porte 1
Stik RJ45 (magnetic)
Weight 12 g

Moxa Miineport E3
10/100 Mbps Embedded Serial Device Servers with RJ45
